ATP02-C Test Clips
Testing low-impedance coils, such as the interpoles of a DC motor, is done with a set of special
test leads called ATP02-C test clips. The clips’ connectors attach to source and sense connectors
of the Baker ZTX, Baker PP85, or Baker DX15A. The test clips are attached directly to the coils
being tested.

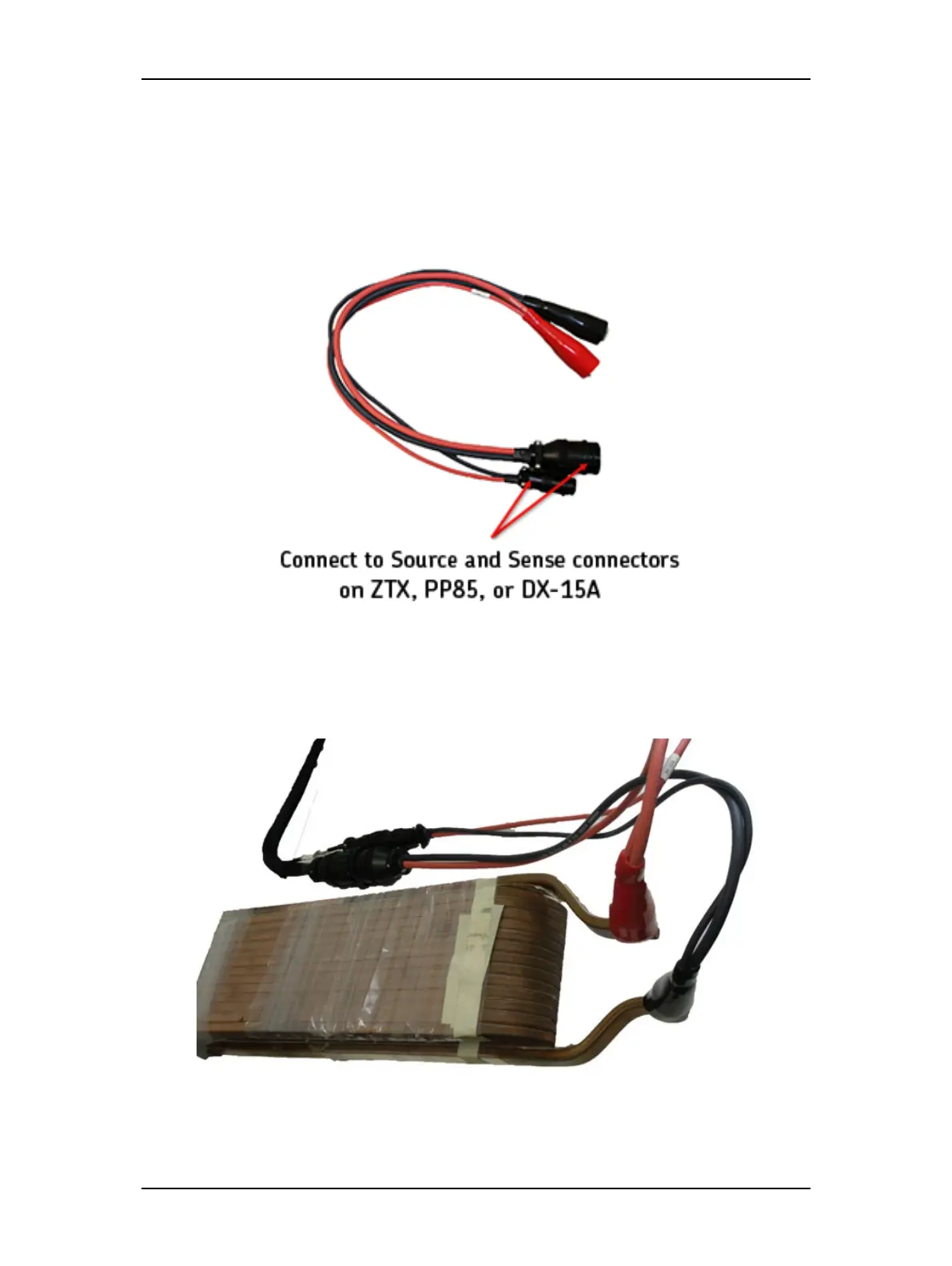

Figure 57. ATP-02-C test clips.
Figure 58. ATP02-C test clips connected to a single coil.
