Setting up Fixtures, Test Accessories, and Lead Connections
54 Baker DX 71-030 User Guide EN V10 www.megger.com
4. Ensure the test lead cable is properly connected to the armature test fixture.

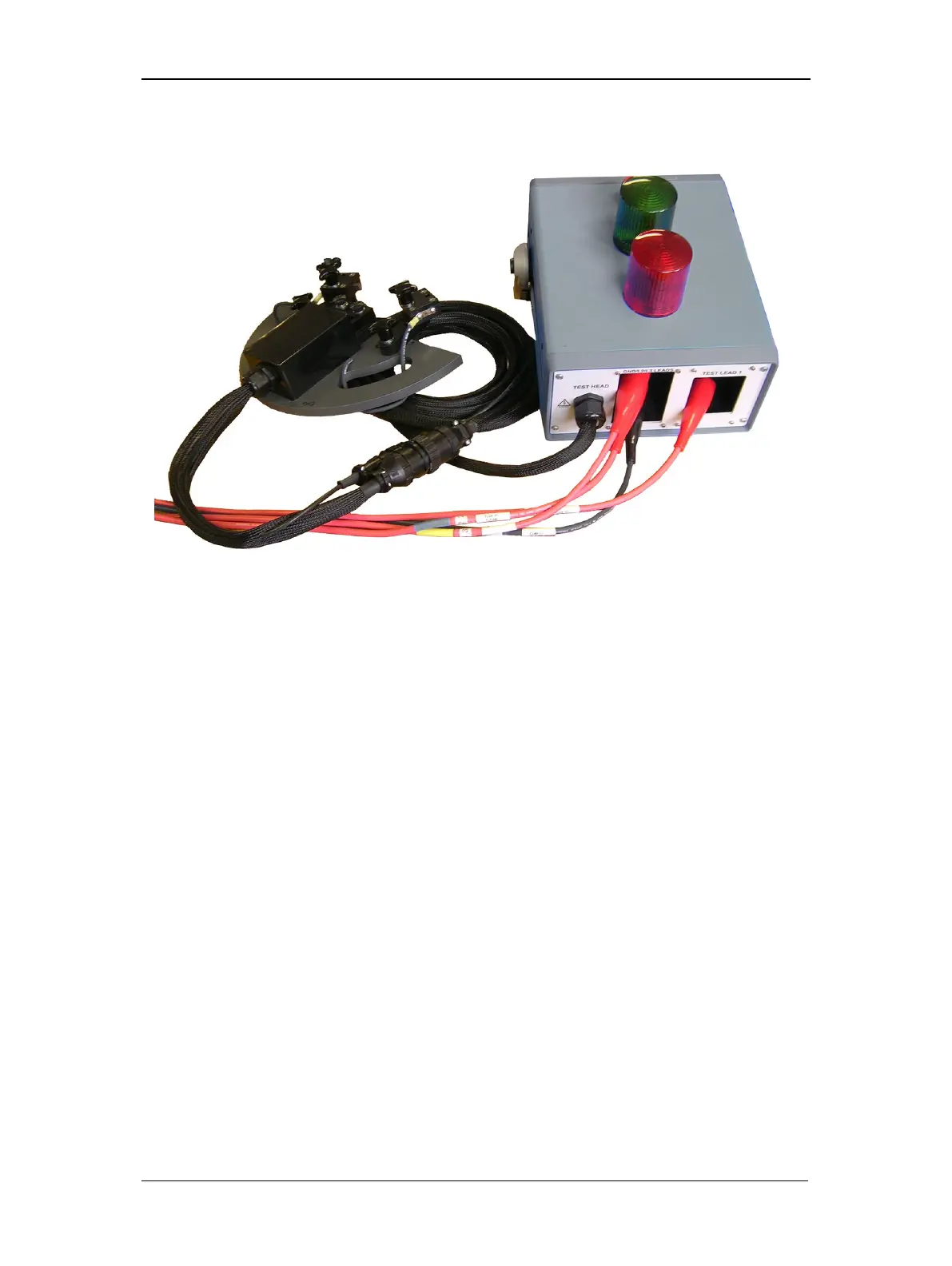

Figure 56. Baker ZTX connected to bar-to-bar armature surge test accessory.
