Baker DX User Interface Overview
26 Baker DX 71-030 User Guide EN V10 www.megger.com
During HiPot testing, the top bar is active and can display two of the three measurement types
shown—either voltage and current, or voltage and MegOhms as shown in this example. The
grayed-out type is inactive.

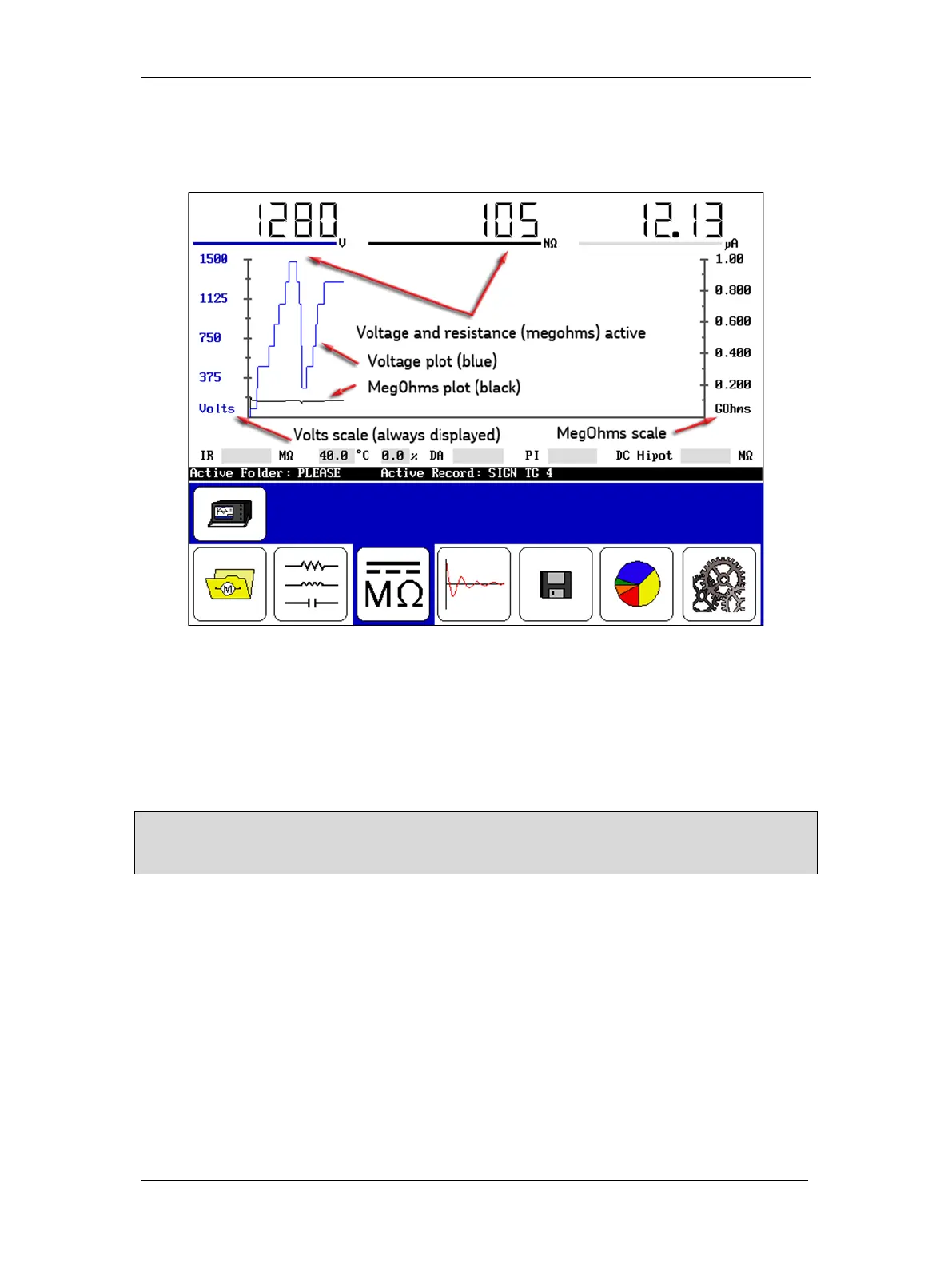

Figure 28. Top bar showing voltage and MegOhms active.
To select which measurement type to activate, simply touch either the MegOhms or current
displays.
Depending on what is selected (MegOhms or current), the scale on the right side changes. The
plot line in the Display Area also changes (black for MegOhms and red for current).
The voltage scale is always displayed and its plot color is blue.
NOTE: Touching the numbers shown at the top of the screen changes the units displayed for the results
presented. However, touching other areas of the Main Display Area will stop the test and will result in an
operator aborted test.
