Surveyor DX
Surveyor DX is a complementing desktop computer software application that provides added
value to Baker DX users by uploading Baker DX test data stored on a USB drive for archiving and
reporting purposes. Uploaded data is saved in a database on the desktop computer.

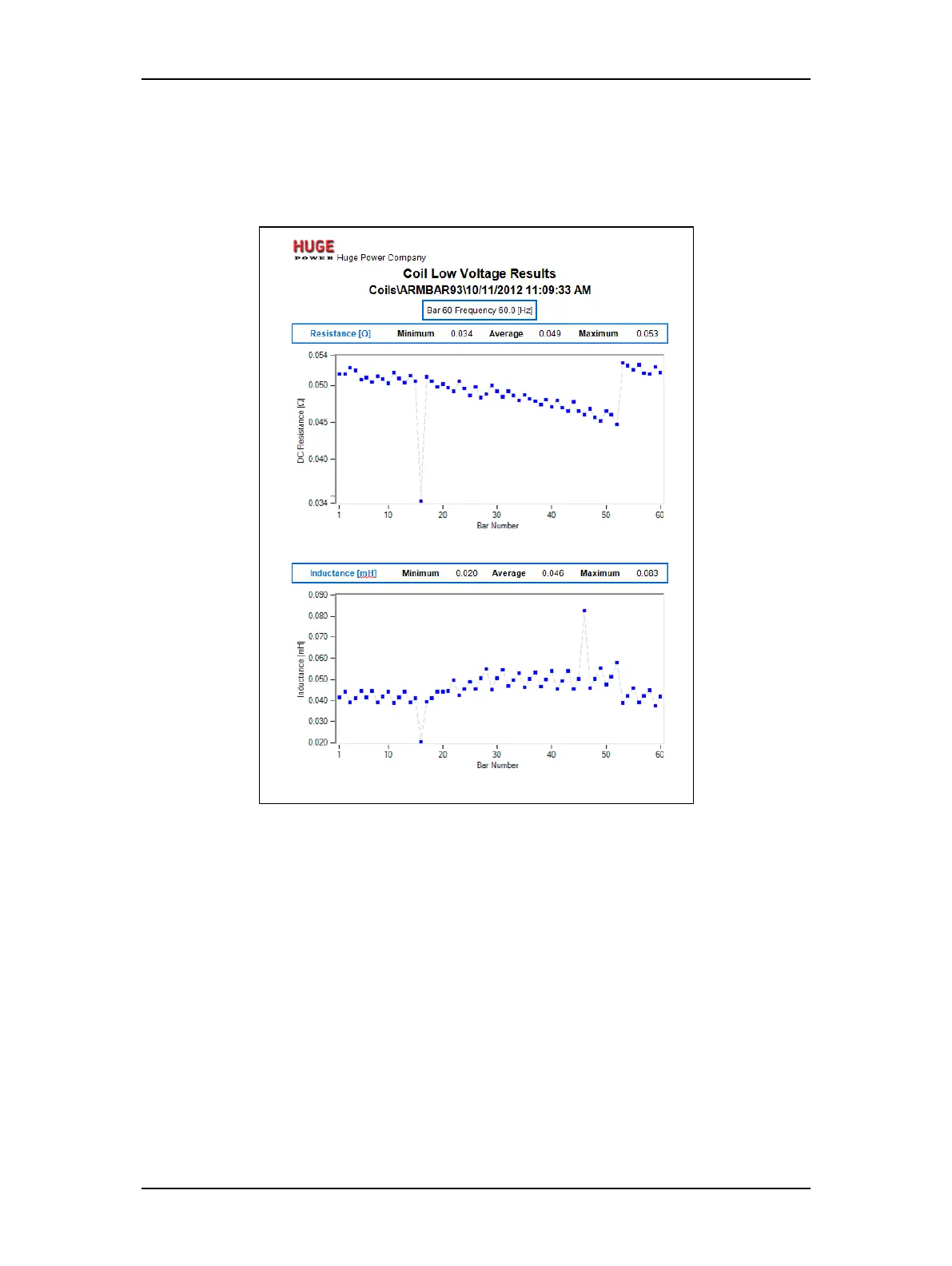

Figure 16. Example Surveyor DX report.
Surveyor DX Reports
The Surveyor DX application generates the following types of reports, depending on the source
data collected from the tester:
 RLC: Resistance, inductance, capacitance, D/Q, impedance.
 DC Tests: PI, DA, DC HiPot, step-voltage with DC graph.
 Surge 3 Phase: Surge waveform, LL and PP EAR. PD results and house plot.
 Surge Coil/Armature Bar/Span: reference vs. test EAR bar chart, thumbnails of each
coil/bar vs. reference surge waveforms, PD percentage plot, and PD events coil statistics.
 Trending reports for practical values collected during RLC, DC, and Surge testing.
