Baker DX User Interface Overview
megger.com 27
In surge mode, the elements change based on the type of coil selected for testing. In each
mode, a pulse counter shows you the number of pulses applied at a specific voltage during the
test. If the voltage changes (such as during ramp up) the counter starts over.
The pulse count also appears in the test report.
The following graphic shows the pulse counter and other display elements when used in three-
phase mode.

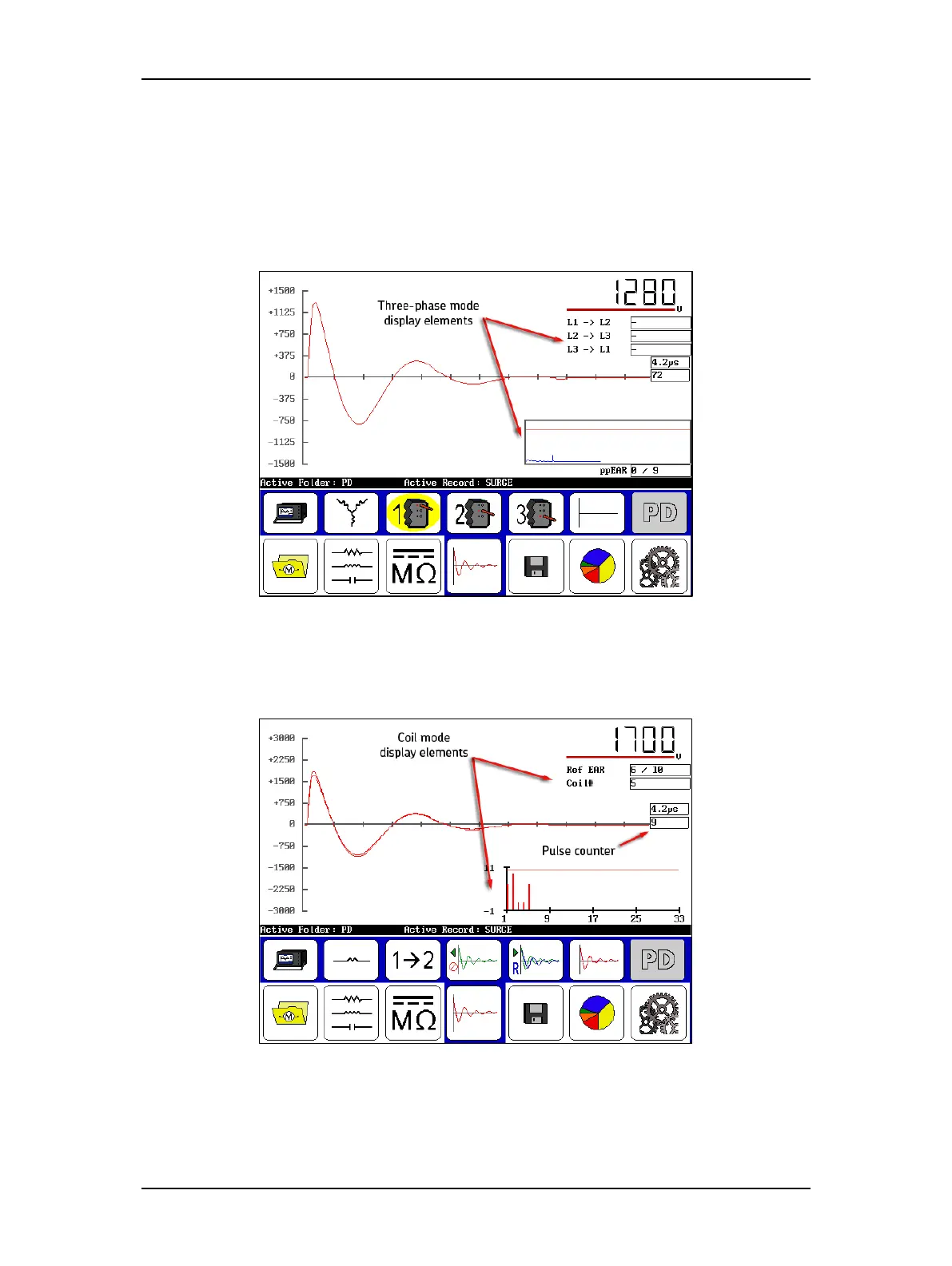

Figure 29. Pulse counter and display features in three-phase mode.
The following graphic shows the pulse counter and other display elements when used in single-
coil mode.
Figure 30. Pulse counter and display features in single-coil mode.
