Baker DX Instrument Overview
16 Baker DX 71-030 User Guide EN V10 www.megger.com
Test Accessories
The Baker DX also features accessories that facilitate testing including the ATP02-C test clips and
the ATP02-P test probes. Clips are used during single-coil testing while the probes are used
during armature bar-to-bar and span testing.

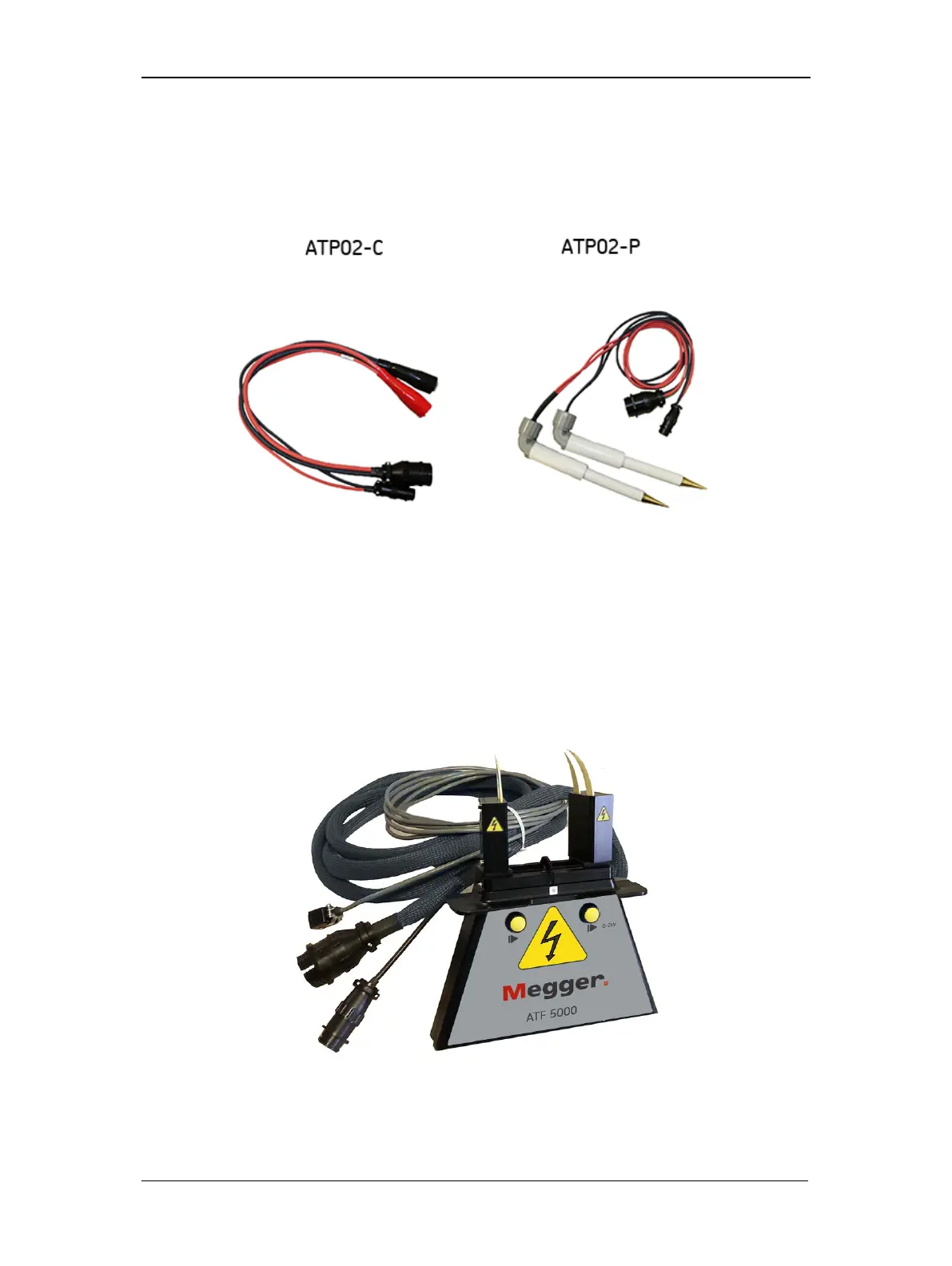

Figure 14. Clip and probe testing accessories.
Armature Test Fixture
The ATF 5000 armature test fixture is used to conveniently perform bar-to-bar testing on
armatures. This fixture connects to the AT-101 ZTX accessory, which adapts the DX for armature
bar to bar testing. The fixture can also be used directly with the DX-15A, which has built-in ZTX
functionality.
Figure 15. ATF-5000 armature test fixture.
