Procedures for Testing with the DX Host
megger.com 89
In the following example, the waveforms are locked and fully zoomed out.

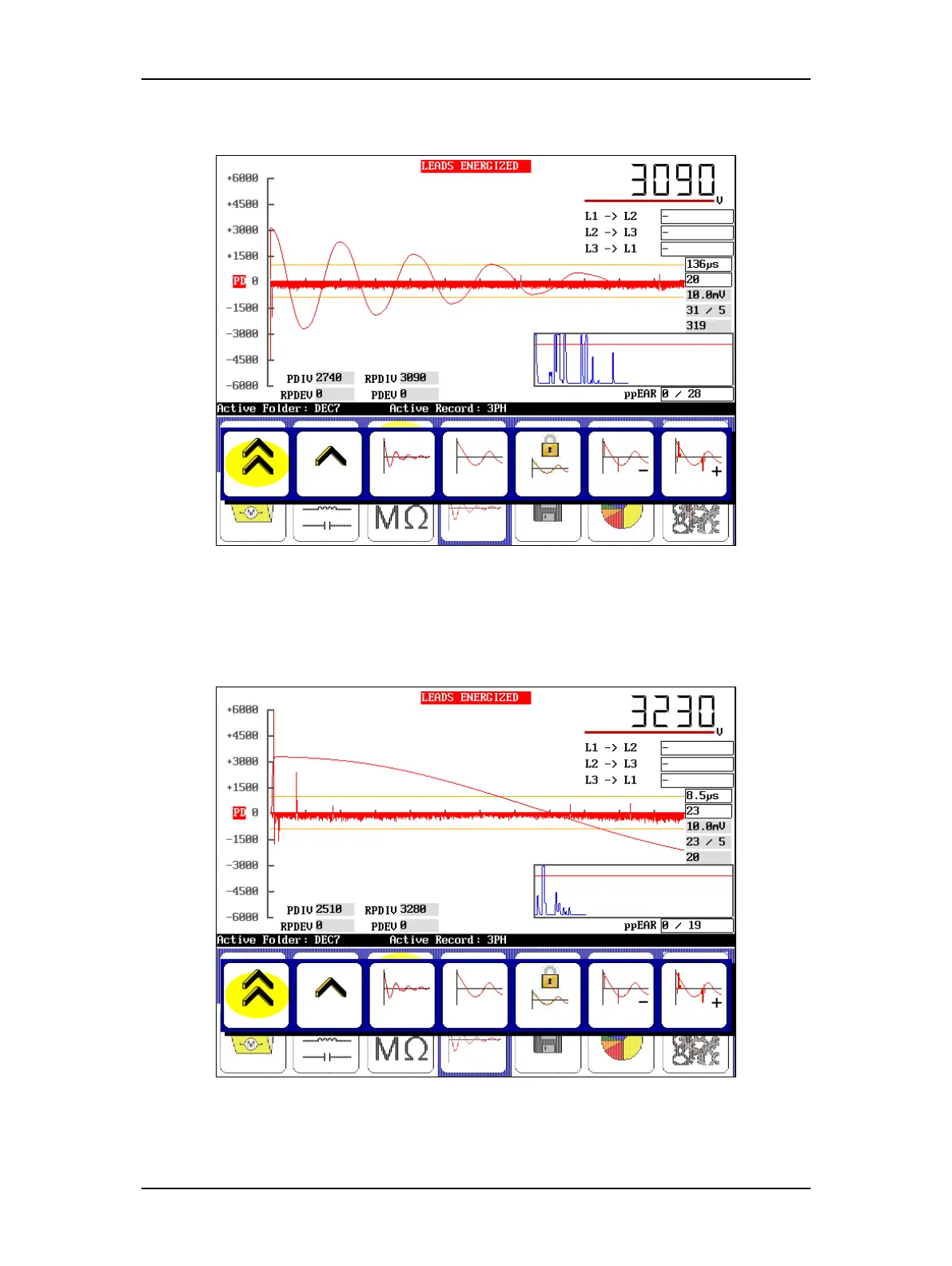

Figure 97. PDIV and RPDIV displayed in locked view.
In the following example, the waveforms are locked and the PD waveform signal expands with
the surge waveform, down to 2µs per division—the maximum surge zoom level of the Baker DX
tester.
Figure 98. Inception voltages shown in expanded locked view.
