Baker DX Instrument Overview
megger.com 11
Baker DX-15/DX-15A
The Baker DX-15 tester provides testing to 15KV and includes the option of built-in armature test
capability with convenient front panel connections for the ATF-5000 armature test fixture. The
maximum armature test voltage is 1500V.
The Baker DX-15A model has all the features of the Baker DX-15 with the additional option of a
built-in ZTX.

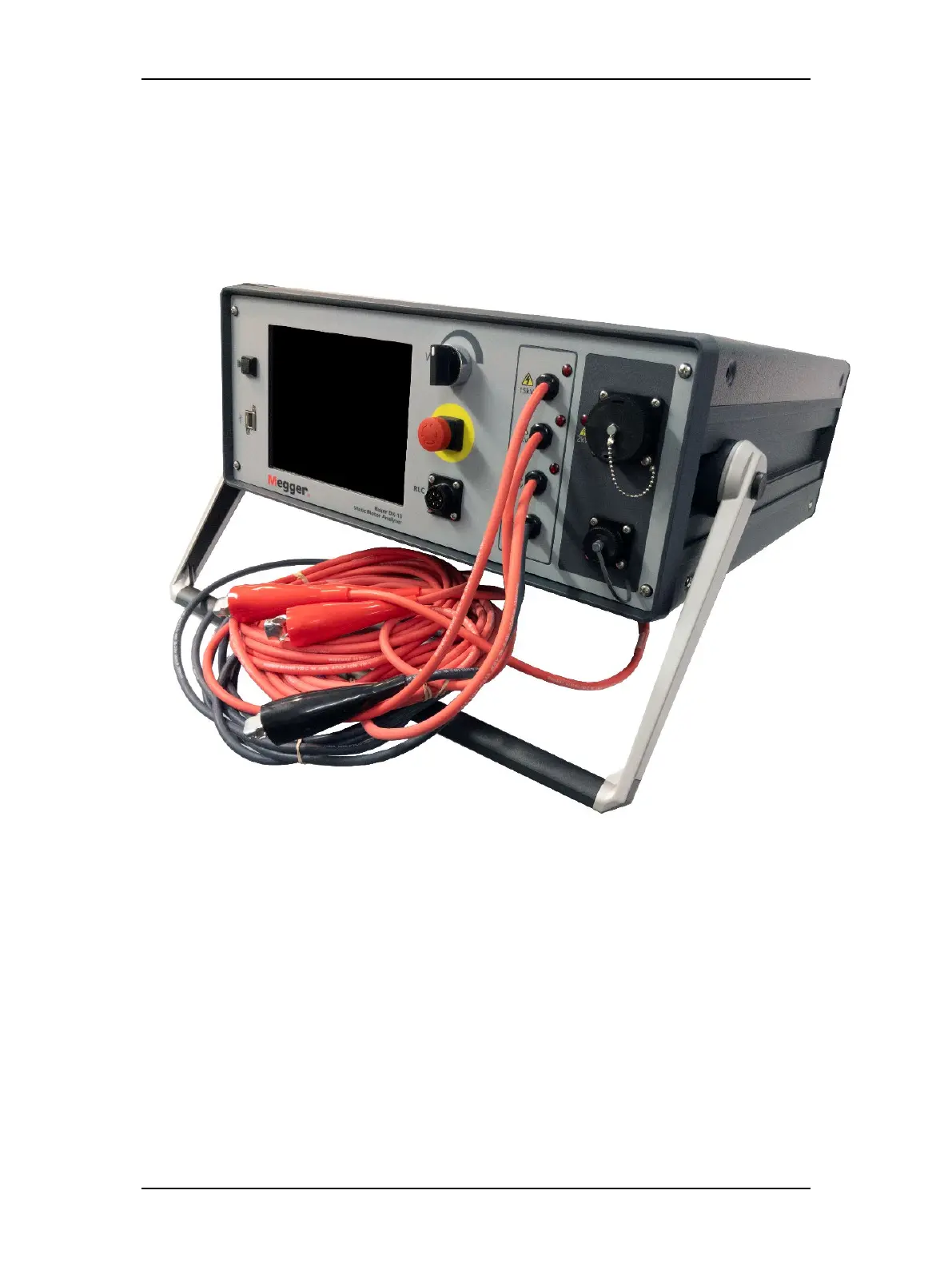

Figure 7. Baker DX-15A; built-in ZTX functionality.
