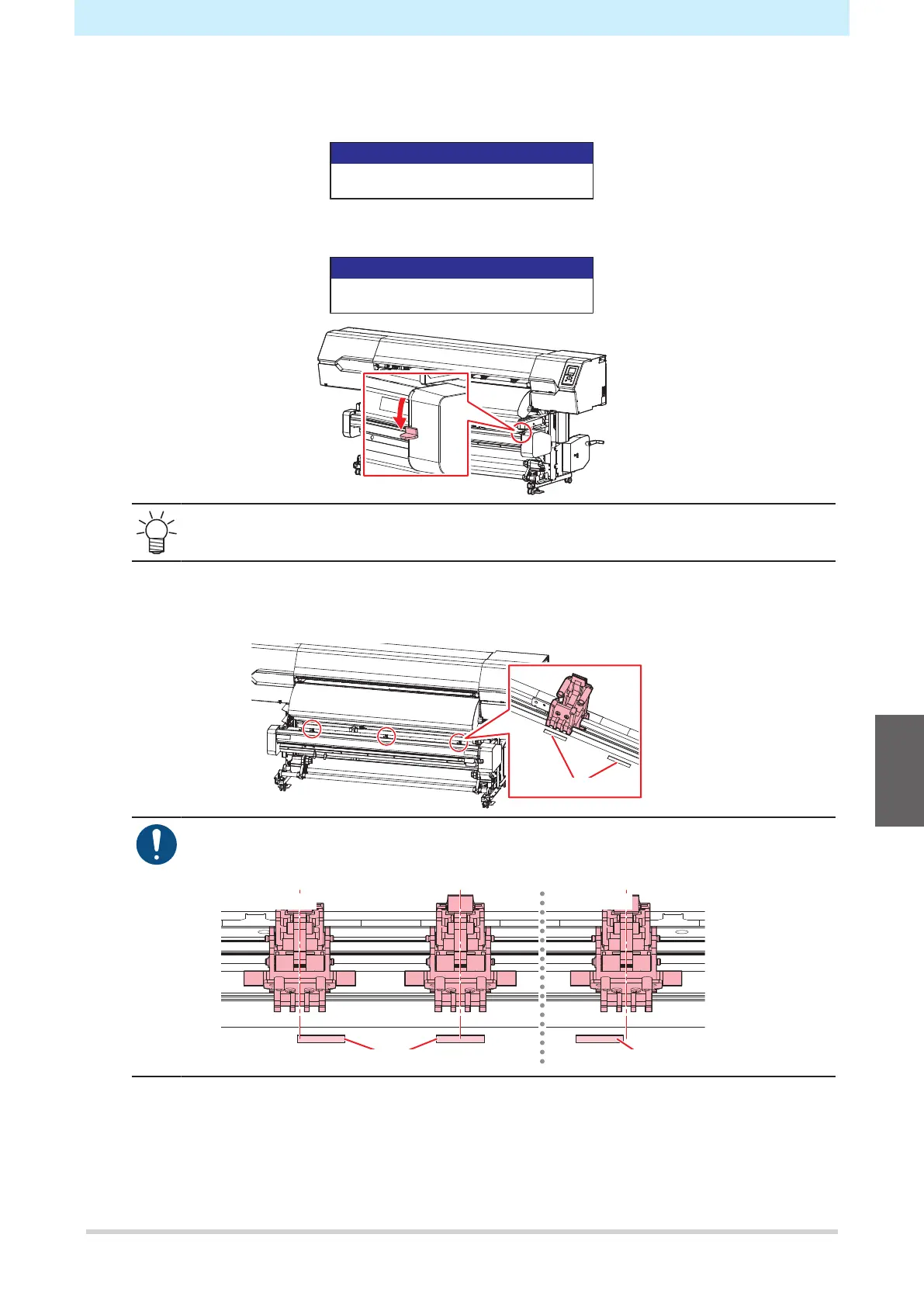

Chapter 5 Using the XY Slitter
137
1
Press the [ENTER] key.
• The printed guide line is fed to the slitter.
XY slitter usage preparation
Start XY Slitter preparation
[ENT]
2
Lower the XY clamp lever.
Up the clamp lever of XY Slitter
• The XY carriage can be moved by hand when the XY clamp lever is lowered.
3
Move the XY clamps.
• Align the XY clamps with the mark (square hole) positions.
• Position the XY clamps so that the clamp centerlines align with the marks (square holes).
The media cannot be transported correctly unless the XY clamp centerlines are aligned
with the marks (square holes).
Good example Bad example
Mark (square hole) Mark (square hole)
5
To Next Page
