Chapter 7 Maintenance
202
5

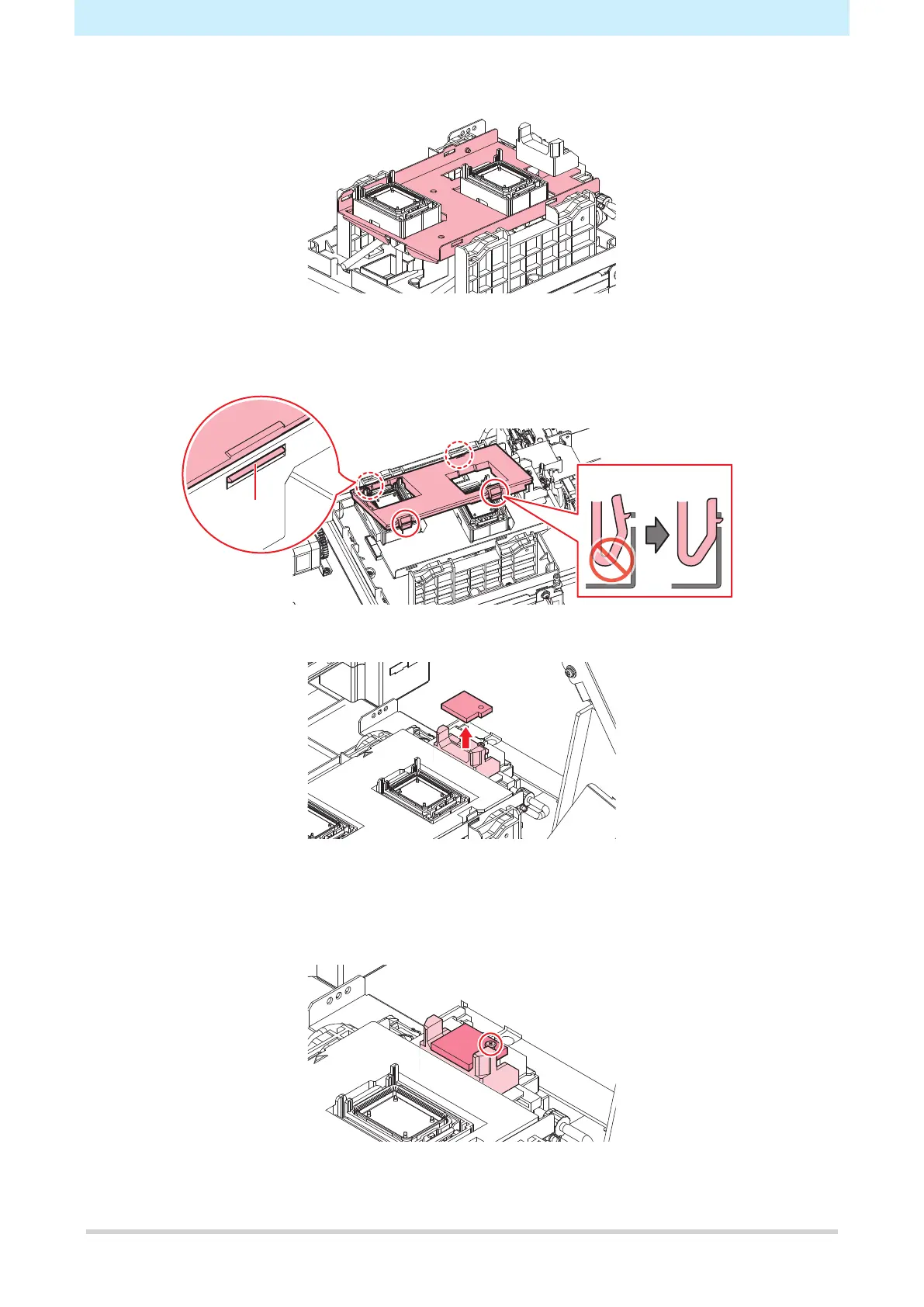

Clean the cap base.
6
Mount a new cap absorber (with plate).
• Push the tabs on the cap absorber into the slits at the rear of the C slider, and clip in the tabs at
the front.
Push in to engage tabs.
Tab
7
Remove the maintenance liquid absorber.
8
Wipe away any maintenance liquid from around the slider block.
9
Mount a new maintenance liquid absorber.
• Push firmly on to the protrusion.
10
Check to confirm that the absorber is not lifting or curved.
