MIMAKI JV330 Series User Manual

Chapter 8 Troubleshooting
229

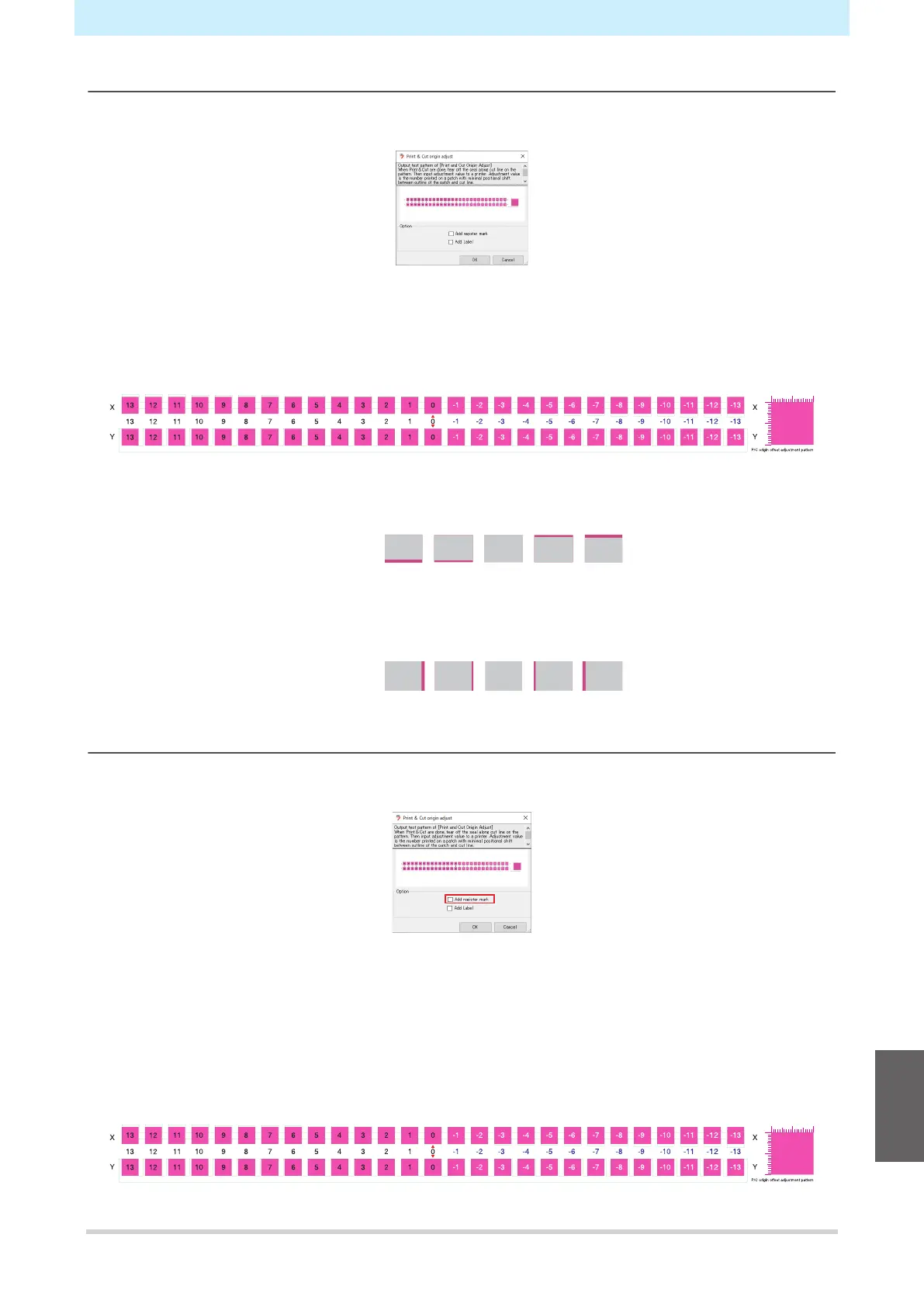

Without register marks
1
Click [OK] to print a correction pattern.
2
On the REMOTE mode screen, select [Adjust].
3
Select [PC Origin Offset], then press the [ENTER] key.
• A correction pattern is cut. Detach the cut part of the pattern and check the adjustment values.
+-
-+
4
Input the numerical value of the position with the lowest vertical misalignment.
• Enter "-4", as shown in the illustration below.
-2 -5-4-3 -6
Enlarged X
5
Input the numerical value of the position with the lowest horizontal misalignment.
• Enter "2", as shown in the illustration below.
4 123 0
Enlarged Y
With register marks
1
Select [Add register mark].
2
Click [OK] to print a correction pattern.
3
On the REMOTE mode screen, select [Adjust].
4
Select [TP Offset], then press the [ENTER] key.
• The register marks are detected, and a correction pattern is cut. Detach the cut part of the pattern
and check the adjustment values.
+-
-+
8
