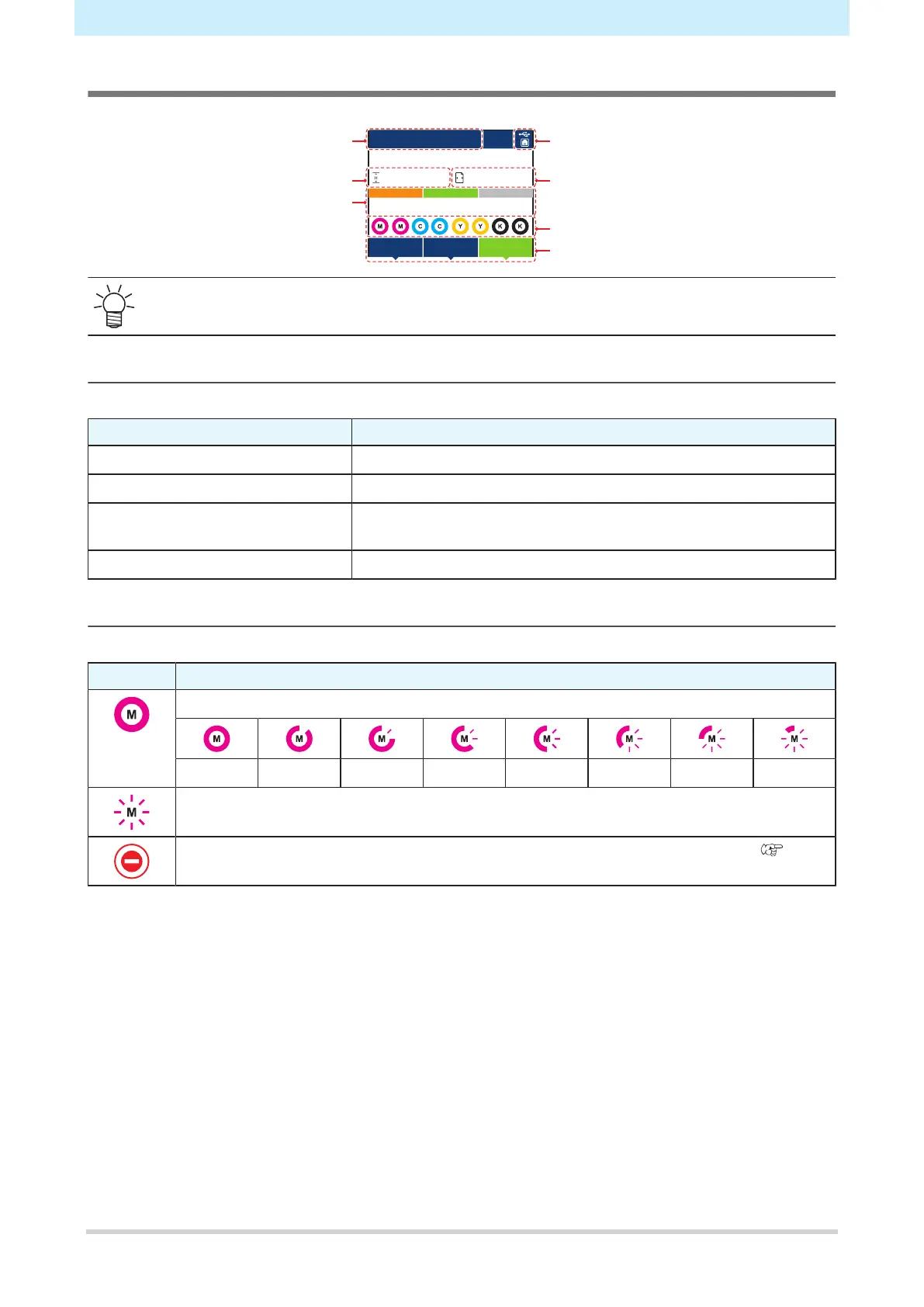

Display
REMOTE
TEST PRINT
CLEANING
MENU
LOW 1620mm
PRE PRINT POST
35°/40° 40°/40° OFF
SETUP 1
Connected cable type
Detected media width
Function name assigned to [FUNCTION] key
MENU mode <setting type number>
Head height
Heater temperature (actual temperature/
setting)
Orange: Heating to the set temperature
Green: Reaches the set temperature
Gray: Set to OFF
Ink status
• TS: A post-heater is fitted (no pre-heater or print heater).
MENU mode
Four menu modes are available.
Name Overview
LOCAL mode Used for test printing, maintenance, and settings
REMOTE mode Prints the print data received from a PC.
MENU mode Press the [MENU] on the LOCAL mode screen to switch to MENU
mode. This is used to set various functions.
NOT-READY mode Status before media is detected
Ink status
Ink pack status such as remaining ink levels and ink errors are indicated by icons.
Icon Overview
Displays remaining ink levels using a 9-stage icon.
Full 1/8 used 1/4 used 3/8 used 1/2 used 5/8 used 3/4 used 7/8 used
Very little ink remains. Prepare fresh ink.
Printing is not possible. Displayed when ink is depleted or an ink error has occurred. "Ink
Error"(P. 232)
