Special Imaging Modes
11-20

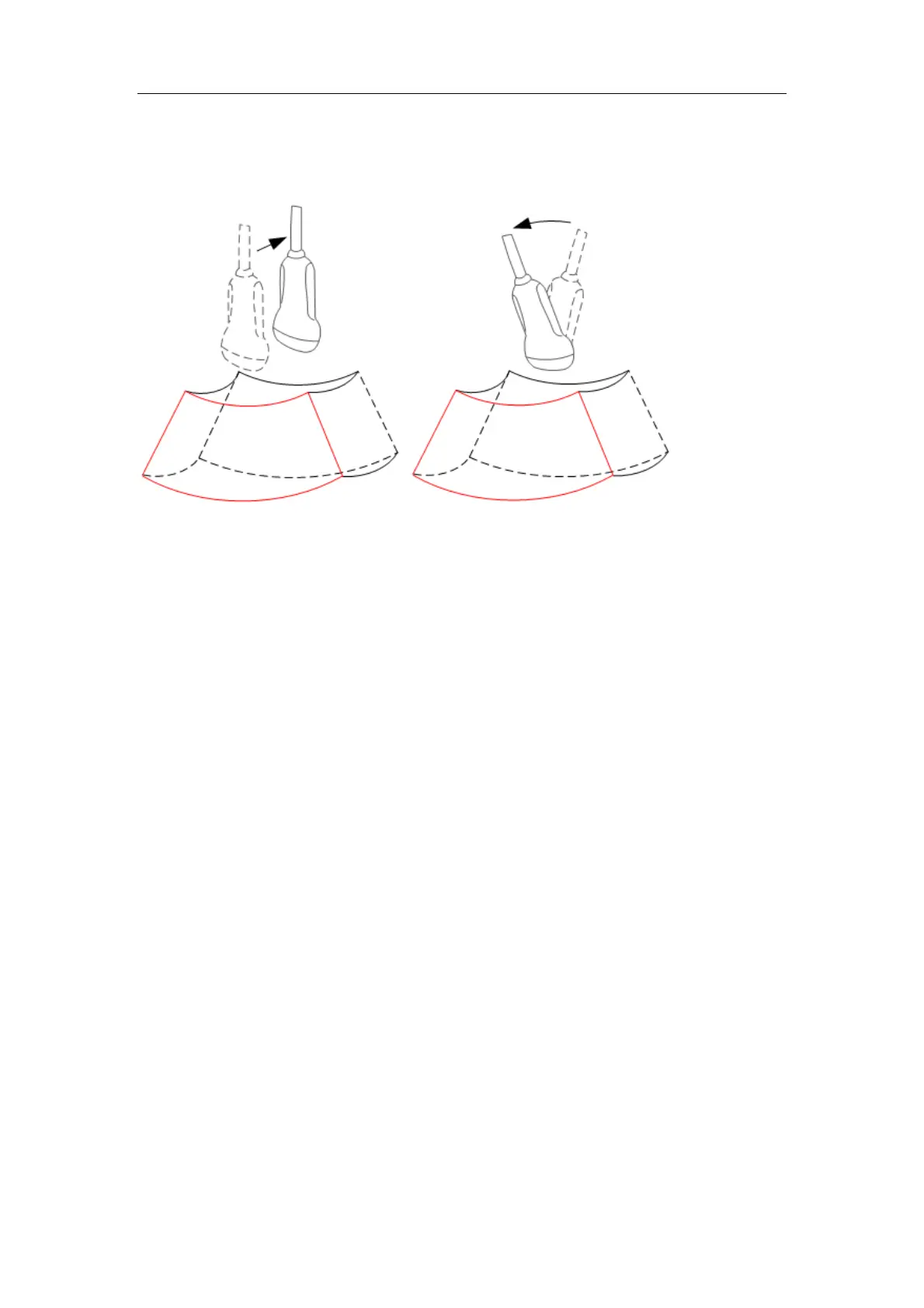

Scanning plane and the transducer movement
Arrow in the figure below indicates the movement of the transducer, (you can move the
transducer in the contrary direction of the arrow.)
Adjust VOI
Function
Adjusting the VOI box size, VOI position and curved VOI is to select the volume data
needed to render the 3D image and improve rendering effect.
Procedures
1.
In 3D image viewing mode, click [Adjust VOI] to On in the menu.
2. Select a desired sectional plane by clicking [A], [B] or [C].
VOI on section A, B and C are adjustable.
3. Roll the trackball to change the VOI size, VOI position and curved VOI, press the
<Set> key to toggle between setting the VOI size, VOI position and curved VOI.
To exit the VOI adjusting
Click [Adjust VOI] to Off on the menu to exit VOI adjusting. Roll the trackball to view a
sectional plane; you can see the other corresponding MPR lines are moving.
VOI adjusting helps to render a better 3D image
Rotating the image
The system supports the following rotation modes:
z Sphere center rotation
z Axial rotation
z Auto rotation
z Quick rotation
