Example:
Range mode: "Multiple range"
Range 1: 01000 kg (when calibrating set scale interval: 1 kg)
Range 2: 02000 kg (next highest scale interval: 2 kg)
Range 3: 03000 kg (next highest scale interval: 5 kg)
7.12.15.3 Multi-interval scale (Class III or single range scale Class I and II with variable scale interval)
The multi-interval scale is a scale with a weighing range that is divided into intervals. Each
interval range has a dierent scale interval, where the weighing range is automatically
switched depending on the load on the scale and also when the load is placed on/
removed from the scale.
When [Range mode] = [Multi-interval], the scale has up to three ranges with dierent
resolution.

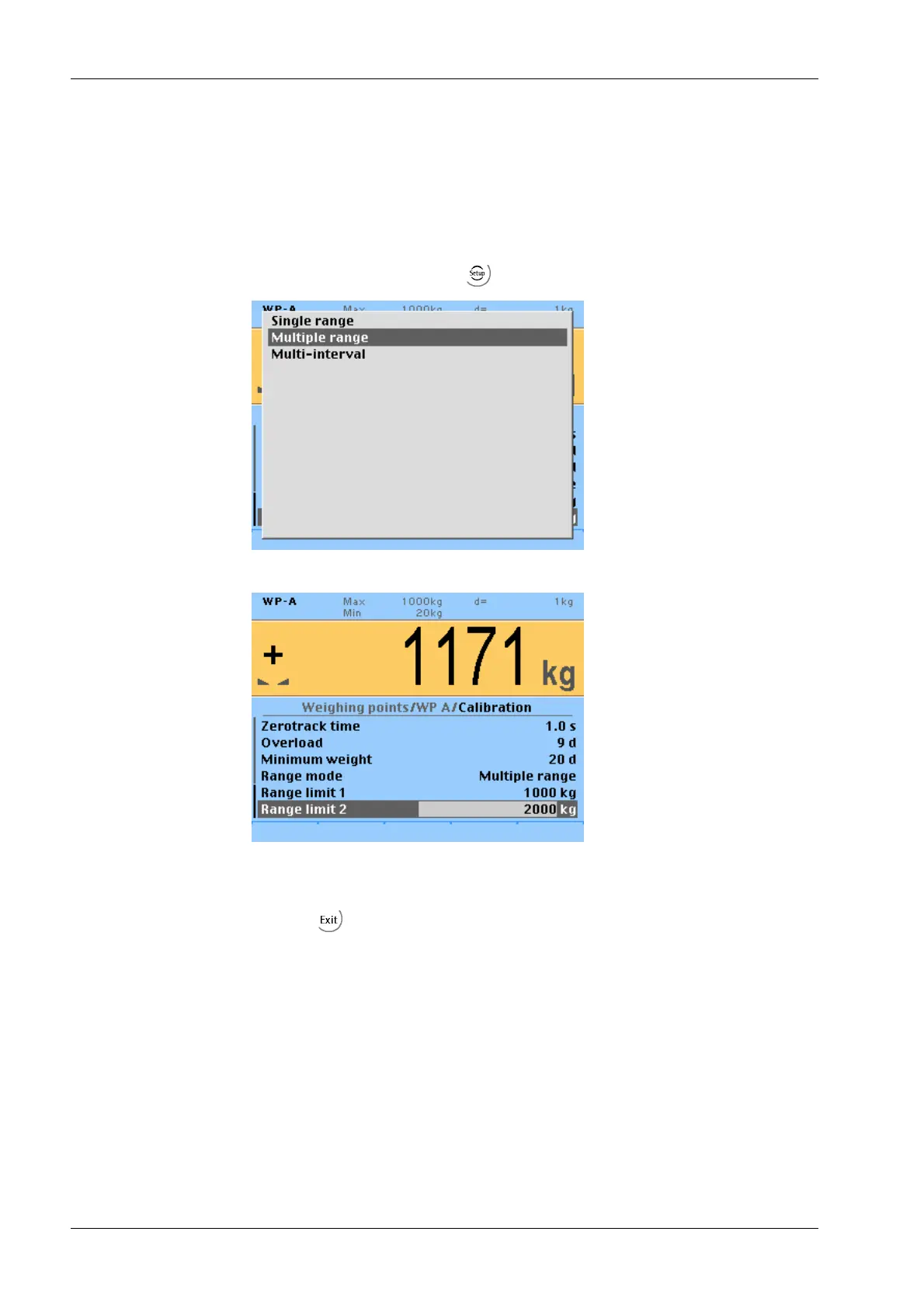

1. Choose "Range mode" from the -[Weighing point]- [Calib]- [Param] menu.
2. Select "Multiple range" and conrm.
3. Setting Switch point from range 1 to 2: enter "1000 kg" for the Range limit 1.
4. Setting Switch point from range 2 to 3: enter "2000 kg" for the Range limit 2.
5. Press the softkey to exit and save calibration.
