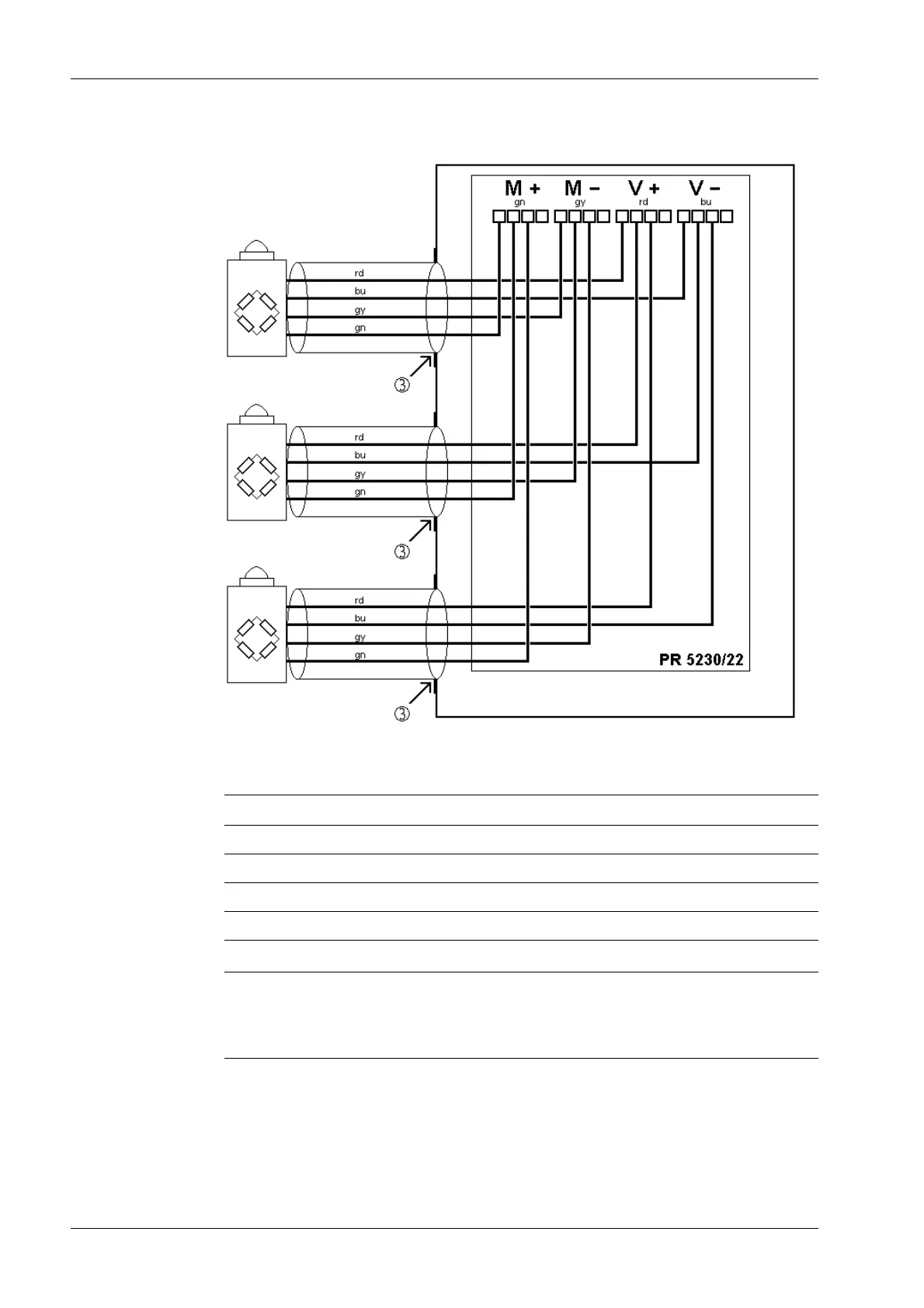

4.5.8.1 Connecting load cells with a 4-wire cable
The load cell cable screens are connected in the metal cable glands; see Chapter 4.2.4.
The 4 load cell cores are color-coded:
Terminal Port/color code Description
M+ + Meas./gn + Measuring voltage (load cell output)
M- - Meas./gy - Measuring voltage (load cell output)
V+ + Supply/rd + Supply voltage
V- - Supply/bu - Supply voltage
Note:
The load cells are connected directly. Corner adjustment on the load cell junction board
is not provided.
