Mitel 6940 - Model M695 Expansion Module

Model M695 Expansion Module
ccxxi
Model M695 Expansion Module
The 6940 SIP IP phone offers two optional expansion modules that attach to the right side of the
phone to provide additional programmable keys.
The M695 provides three pages of 28 keys per PKM (for a total of 84 programmable softkeys), with
each softkey providing an LED and graphical UI for call status indication. The M695 features a 4.3”
480x272 pixel color backlit LCD display.
The M695 Expansion Module keys support the following functions:
• None • Speed Dial/Conf
• Line • Speed Dial/MWI
• Speed Dial • Directory
• (DND) •Filter
• Busy Lamp Field (BLF) • Callers List
• BLF/List • Redial
• Auto Call Distribution (ACD) • Conference
• Extensible Markup Language (XML) • Transfer
•Flash •Intercom (Icom)
• Sprecode • Phone Lock
• Park • Paging
• Pickup • Login
• Last Call Return • Discreet Ringing
• Call Forward • Call History
•BLF/Xfer •Empty
• Speed Dial/Xfer

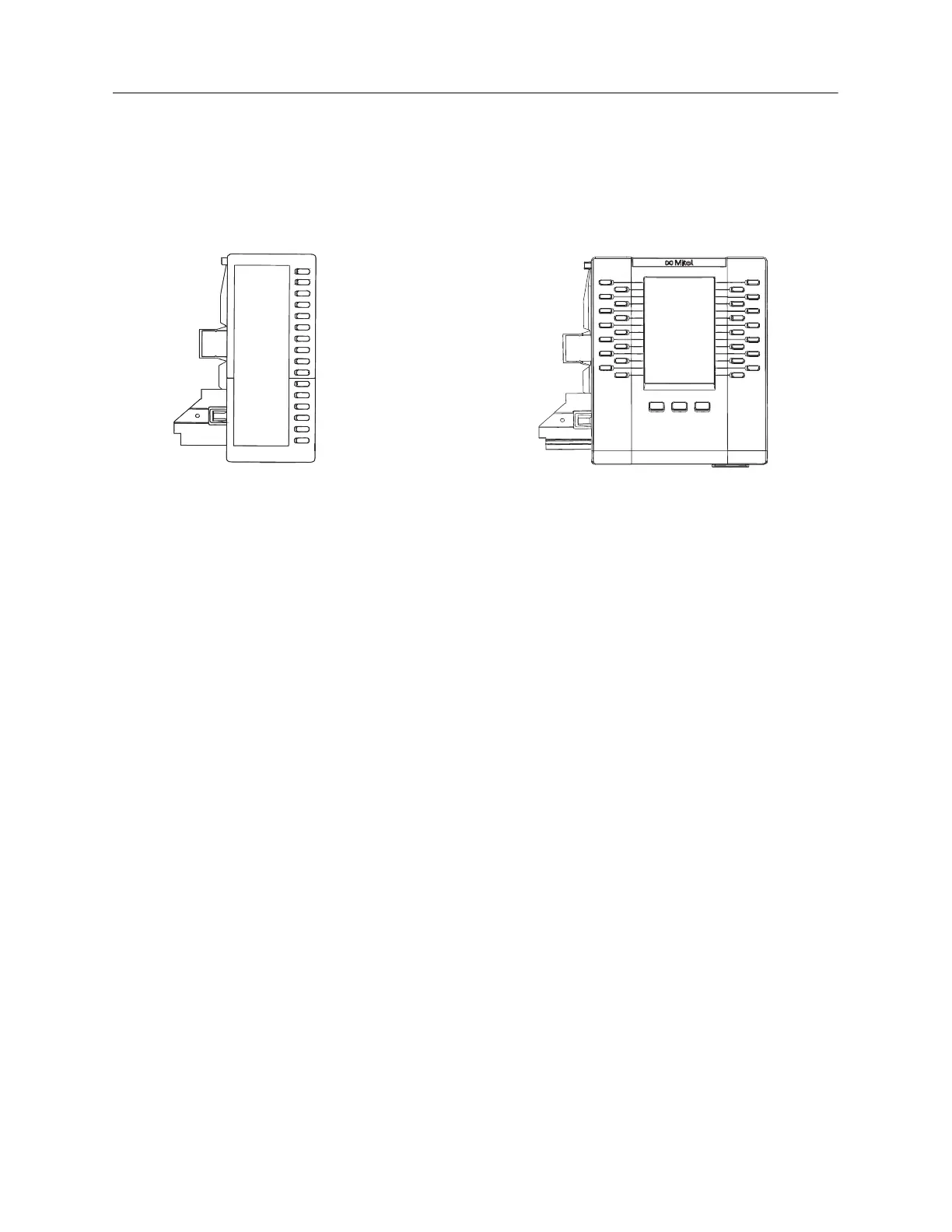

M695 Expansion Module
