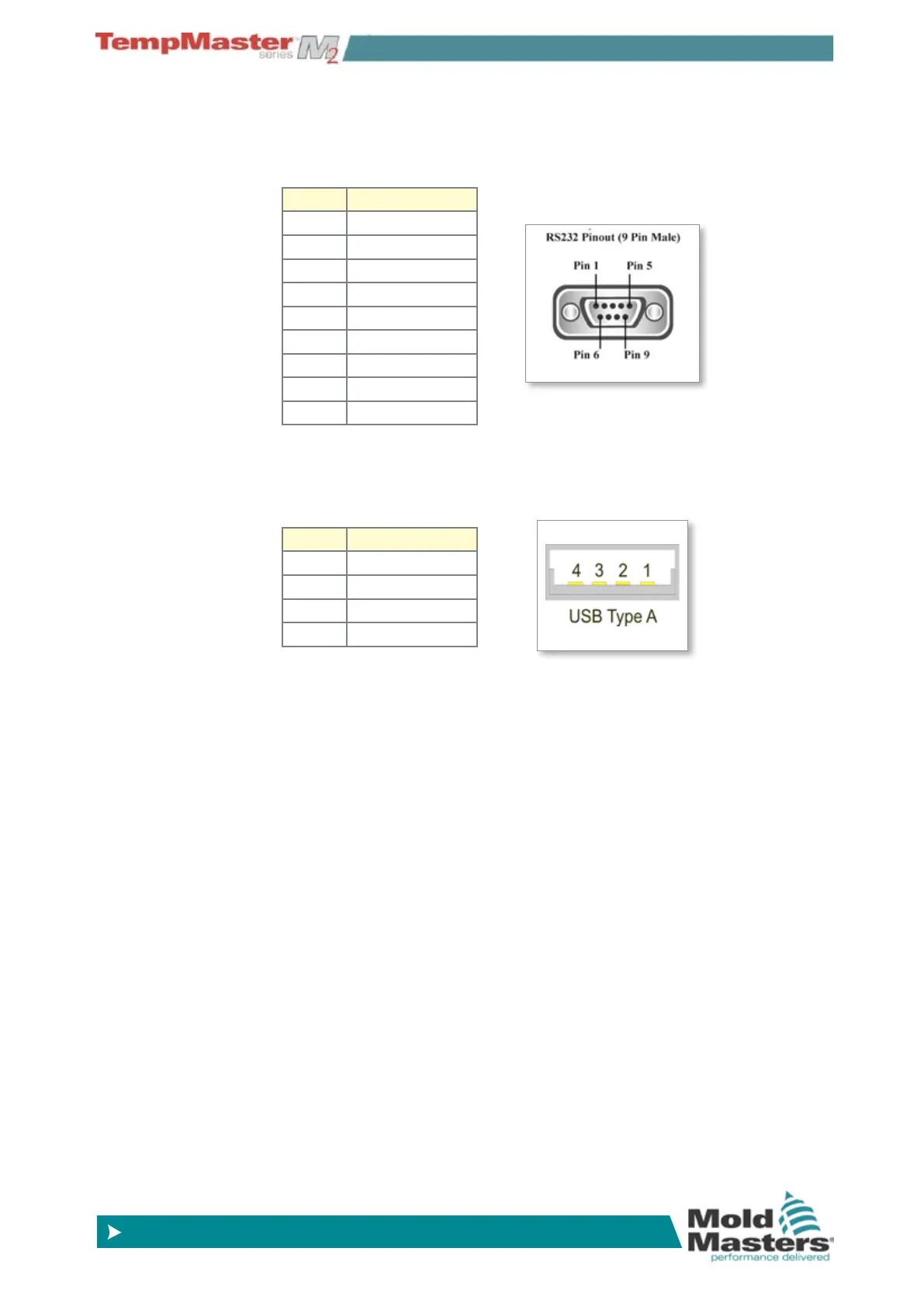

HRC WIRING DETAILS
Serial Port
A male 9 way D panel connector can be provided for an RS-232 serial
port, which is used to communicate with a remote computer for data
collection. The pin outs are as follows:
Pin Connection
1 -
2 Transmit
3 Receive
4 -
5 Ground
6 -
7 Handshake
8 -
9 -
USB Port
A USB port is standard on all Touch Screen Consoles for connection
to a printer.
Pin Connection
1 VCC
2 D-
3 D+
4 GND
