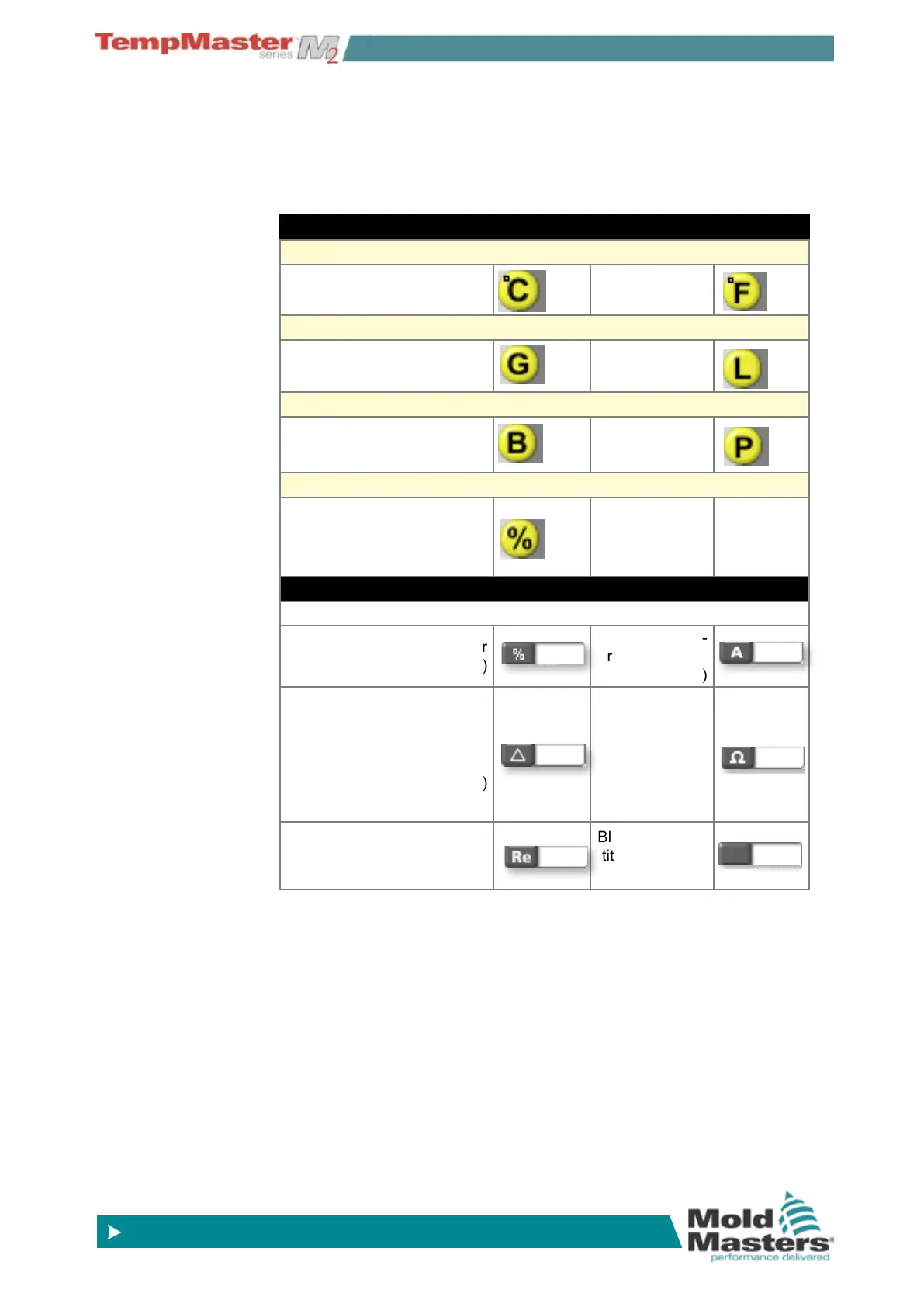

4.6 Display Page – other Symbols and what
they mean
The previous page shows the more common parameters that you
expect to see on a temperature controller – however there are more
values or quantities which are as listed here:
Parameters that are Set
Temperature
Degree C Degree F
Flow (monitoring coolant ow with analogue or digital devices)
Gallons per minute Litre per minute
Pressure (monitoring coolant pressure with analogue devices)
Bar PSI
Other
Percentage (a set percent-
age power output for a zone
with no thermocouple or
closed loop)
Parameters that are Measured (and displayed)
(seen in lower half of panel)
Percentage (power output for
that zone)
Ampere (Cur-
rent measured
in a zone)
Delta (a “difference” symbol
used when comparing ow
or pressure between two
points)
Ohms (Resist-
ance value of
a zone cal-
culated from
stated voltage
and measured
current)
Reynolds Number
(an indication of the quality
of coolant ow in a circuit)
Blank (no quan-
tity currently on
display
