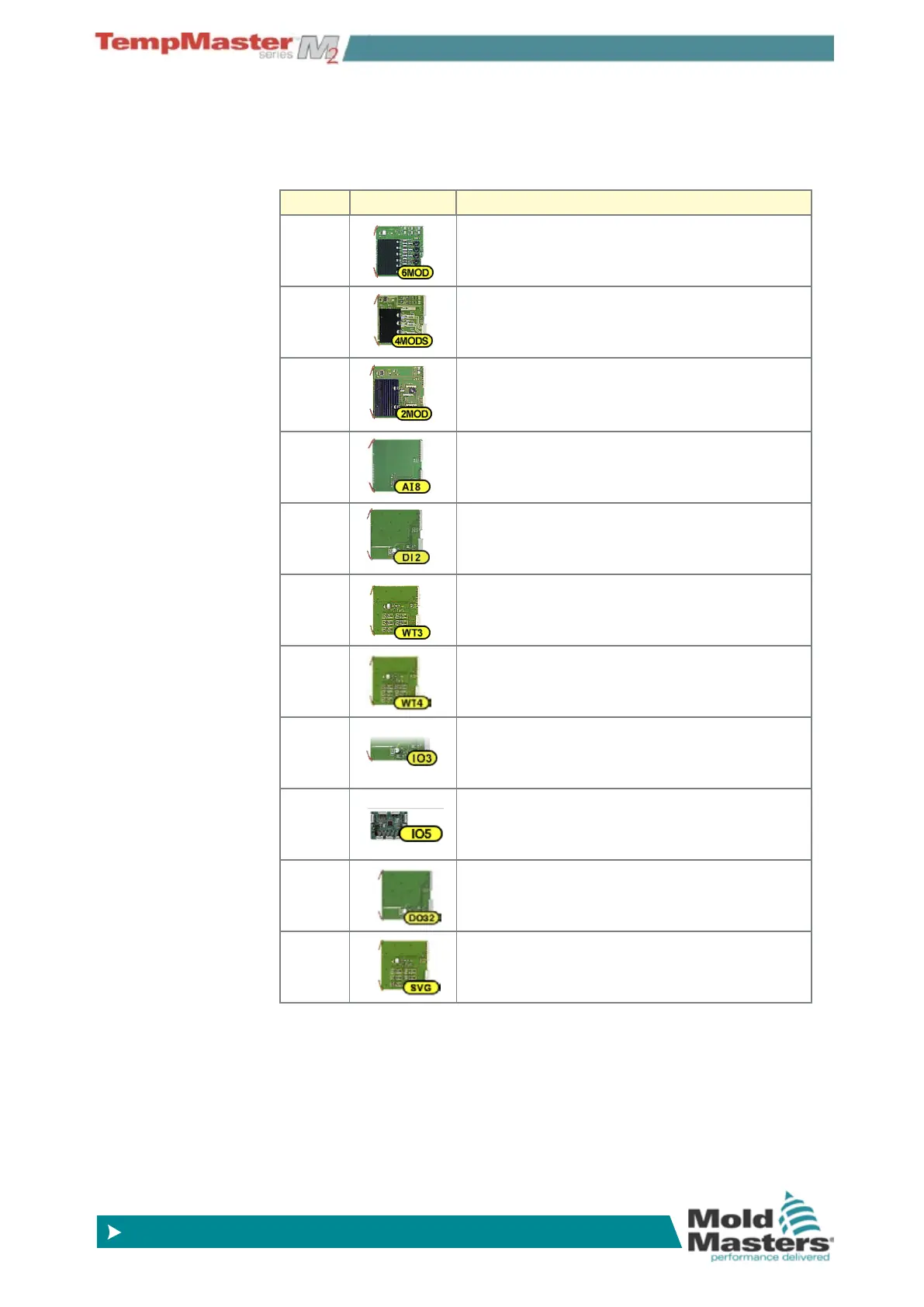

5.3 Setup page - cards that may be detected
Cards, initially detected by the New Tool process, are shown in the
second column and will assume their default values. The following is a
list and description of the cards that may be detected by your console:
Card Symbol Description
Z6
6-zone card at 5 Amp rating for Probes with
optional Current sensing
Z4
4-zone card at 15 Amp rating with current sensing
and optional Ground Fault monitoring
Z2
2-zone card at 20 Amp rating for manifolds with
optional Current sensing
AI8
8-channel 4-20mA Analogue Input card typically
used with analogue ow sensors to monitor
coolant ow rates.
D12
16-channel digital input card typically used to
accept external signals.
WT3
12-channel RTD card used for temperature
monitoring using Resistive Temperature Devices.
WT4
12-channel TC card used for temperature
monitoring using thermocouple sensors.
IO3 or 4
4-channel digital Input/Output card for remote
signalling.
IO5
4-channel digital Input/Output card for remote
signalling. PLUS remote Tool Selection input
DO32
32-channel Digital output Card used to signal
external equipment.
SVG
12-channel sequential valve gate card that can
open and close valve gates at discrete pre-set
point.
