SETUP
© 2014 Mold-Masters (2007) Limited.
All Rights Reserved.
Revised 1 Oct, 2014
5-32
www
.moldmasters.com

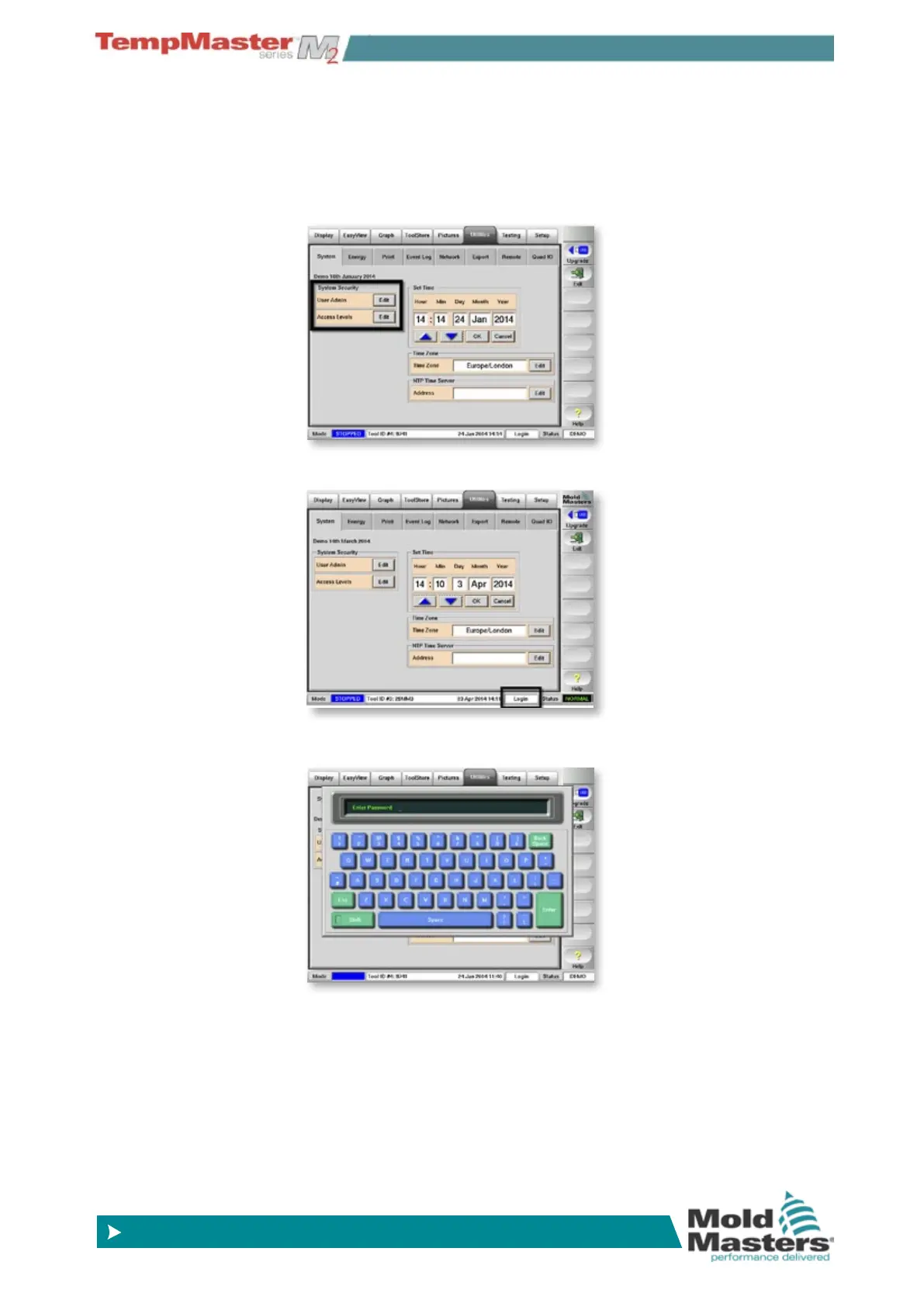

5.14.1 Set up User access
T
o access and set up User accounts and user access rights ensure
you are already logged in at an administrative level. Initially this is
“System” user
.
1.
Choose [
Login
].
2.
Give “system” Password .
Pass
w
ords and User Access - contd.
