Set Operating Parameters - contd.

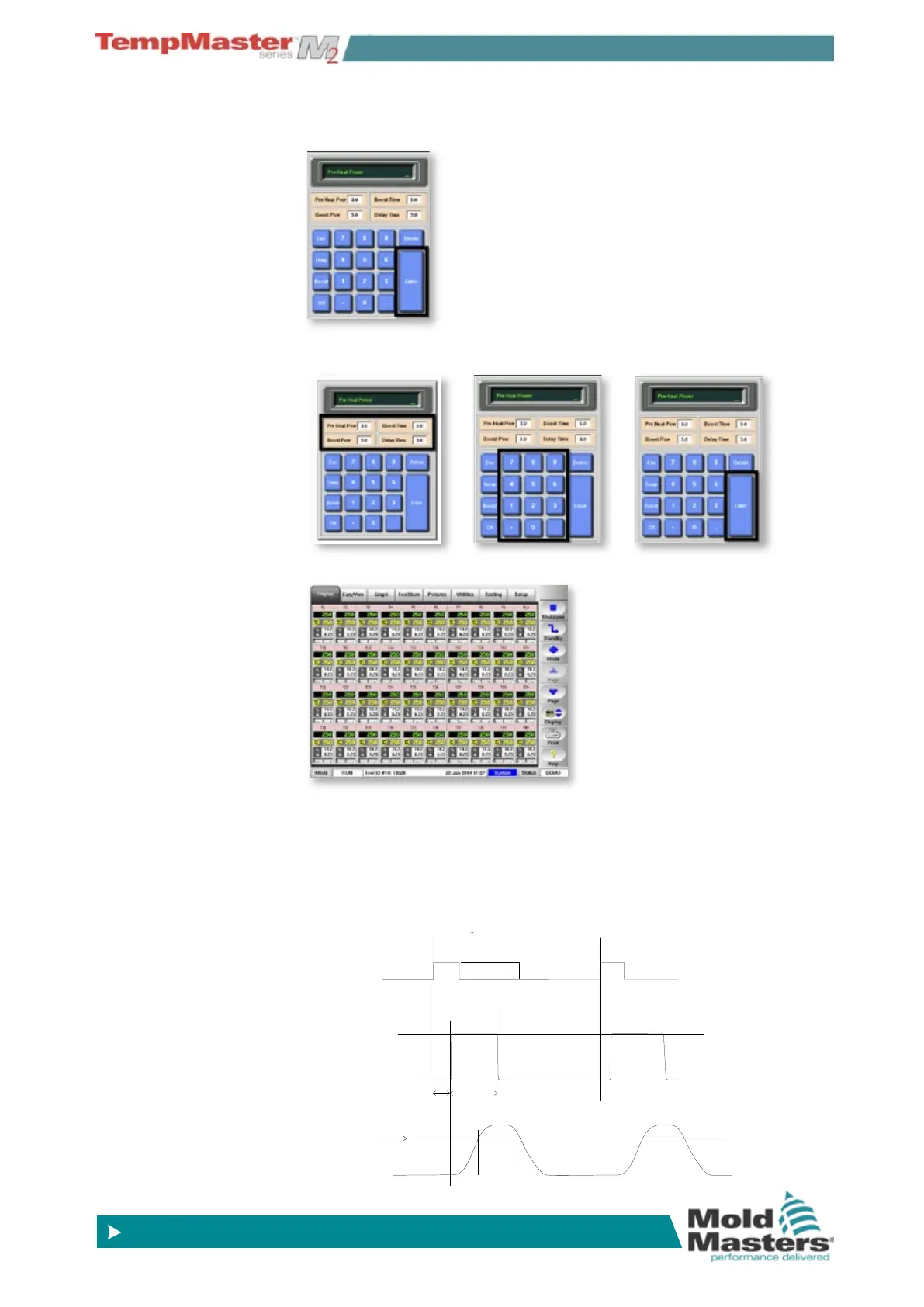

About the Spear/Tip Cycle Time
The following shows how a spear tip-temperature cycle relates to the
mold cycle.
Pre-Heat
Power
Boost
Power
Delay
Time
Boost
Time
Trace 1
Mold Cycle
Boost signal
Trace 2
Spear Tip
Power
Cycle
Trace 3
Spear Tip
Temperature
Cycle
Gate
closed
Gate
open
External Signal
(triggers at rising edge)
Varies in length
Gate-open
period
7. Set the remaining three values.
(keypad automatically cycles through all four values then clears
after the last value is set.)
8. The console view returns to just the Display page.
