P5-25 BE Motor disable delay time after brake applied 200 0 ~ 32000 ms P S T
The 5-25 parameter sets the delay time between the moment the brake is applied to the motor and the moment the
motor is disabled. This ensures that the brake is fully applied, before disabling the motor to make sure the load does
not move unexpectedly.

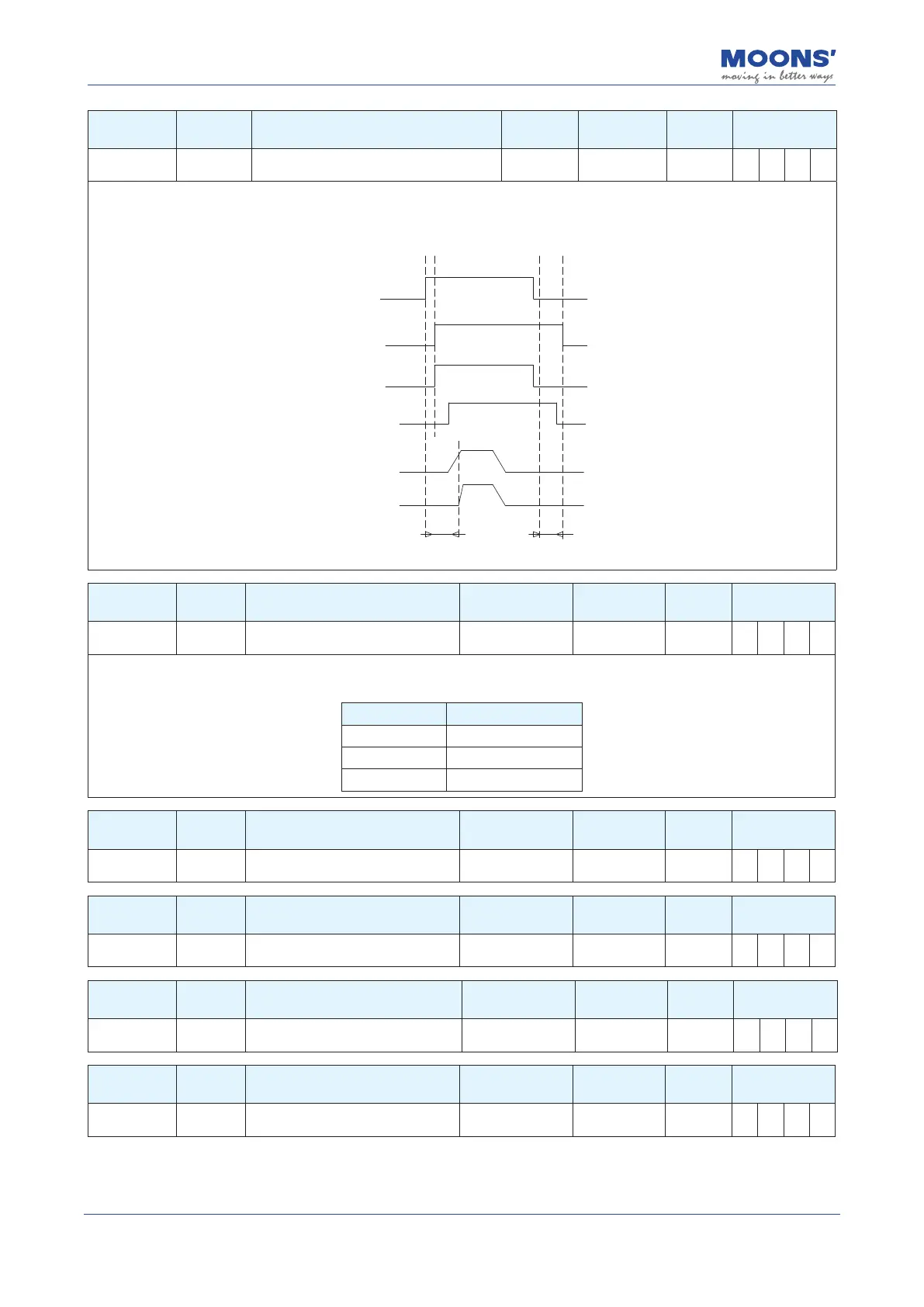

S_ON Signal
OFF
ON
Energization of motor
OFF
ON
Brake Action
OFF
ON
BRK Signal
OFF
ON
Motion Instructions
OFF
ON
Actaul Motion
OFF
ON
Release delay P5-24 settings
Brake delay P5-25 settings
Parameter Instruction Name Defaults Range Unit
Related
Patterns
P5-27 HX Home sensor 4 1 ~ 4 - P S T
This parameter is simply to monitor which input pin has been assigned the "Home Sensor" function. To assign the
"Homing Sensor" function to an input, this must be congured separately via the P5-00 ~ P5-03 parameters.
Display value Digital input pin
1 X1
2 X2
... Sequential analogy
Parameter Instruction Name Defaults Range Unit
Related
Patterns
P5-28 FI1 Digital input 1 ltering 2 0 ~ 8000 ms P S T
Parameter Instruction Name Defaults Range Unit
Related
Patterns
P5-29 FI2 Digital input 2 ltering 2 0 ~ 8000 ms P S T
Parameter Instruction Name Defaults Range Unit
Related
Patterns
P5-30 FI3 Digital input 3 ltering 2 0 ~ 8000 ms P S T
Parameter Instruction Name Defaults Range Unit
Related
Patterns
P5-31 FI4 Digital input 4 ltering 2 0 ~ 8000 ms P S T
