MBDV Hardware Manual
Step 3

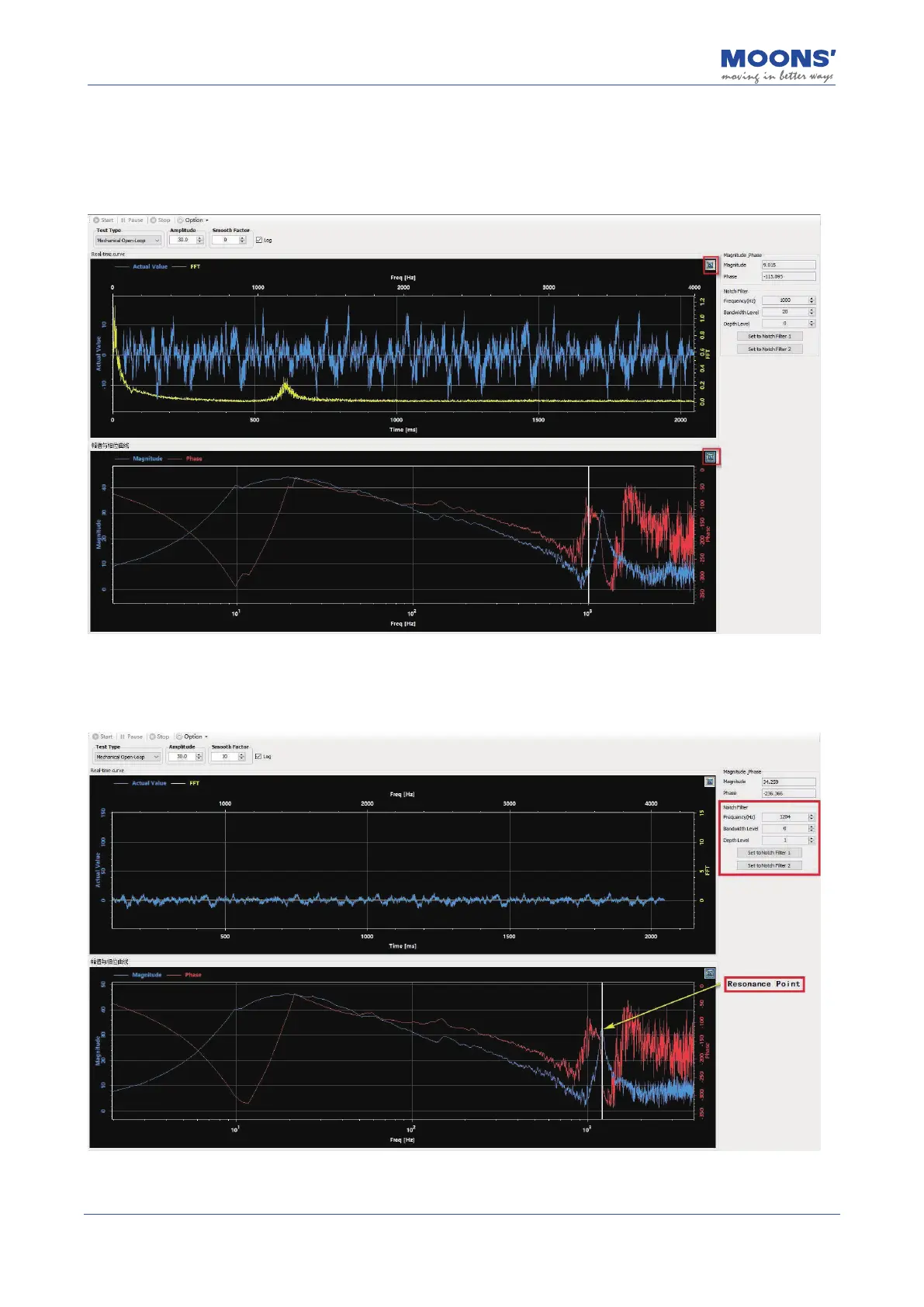

Click the " Start Analysis " button, the servo system starts the mechanical open-loop analysis and
displays the resulting curve. Click the icon in the upper right corner of the drawing area to optimize
the display curve.
Step 4
Move the reference line in the " Amplitude and Phase Curves " to the place where the amplitude
curve (blue curve in the gure below) has abnormal protrusions
