7 - 10 MC92N0-G User Guide
Four Slot Charge Only Cradle
This section describes how to use a Four Slot Charge Only cradle with the MC92N0-G.

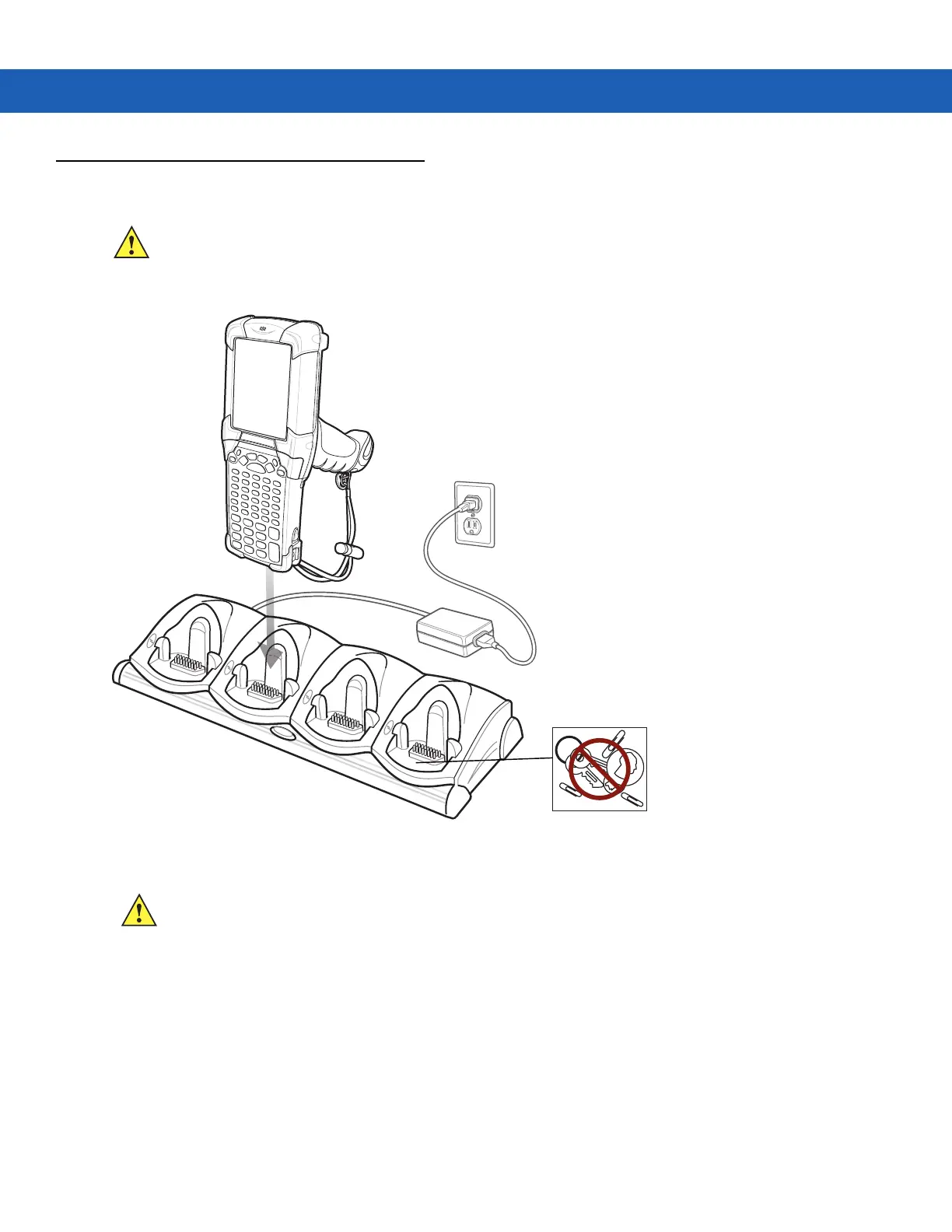

Figure 7-4
Four Slot Charge Only Cradle
The Four Slot Charge Only cradle:
•
Provides 12 VDC power for operating the MC92N0-G.
•
Simultaneously charges up to four batteries in the MC92N0-G.
The MC92N0-G’s amber charge LED, located in the Indicator LED Bar, shows the status of the battery charging in
the MC92N0-G. See Table 1-1 on page 1-4 for charging status indications.
The battery usually charges in less than four hours.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 8-1.
CAUTION Do not place coins, keys or paper clips in cradle well.
