B
-
2
MC92N0-G
User
Guide
28-Key
Keypad
The 28-key keypad contains a
Power
button, application keys, scroll keys and function keys. The keypad is
color-coded to indicate the alternate function key (blue) values. Note that keypad functions can be changed by an
application so the MC92N0-G’s keypad may not function exactly as described. See
T
able B-1 on page B-3
for key
and button descriptions and
T
able B-7 on page B-20
for the keypad’s special functions.

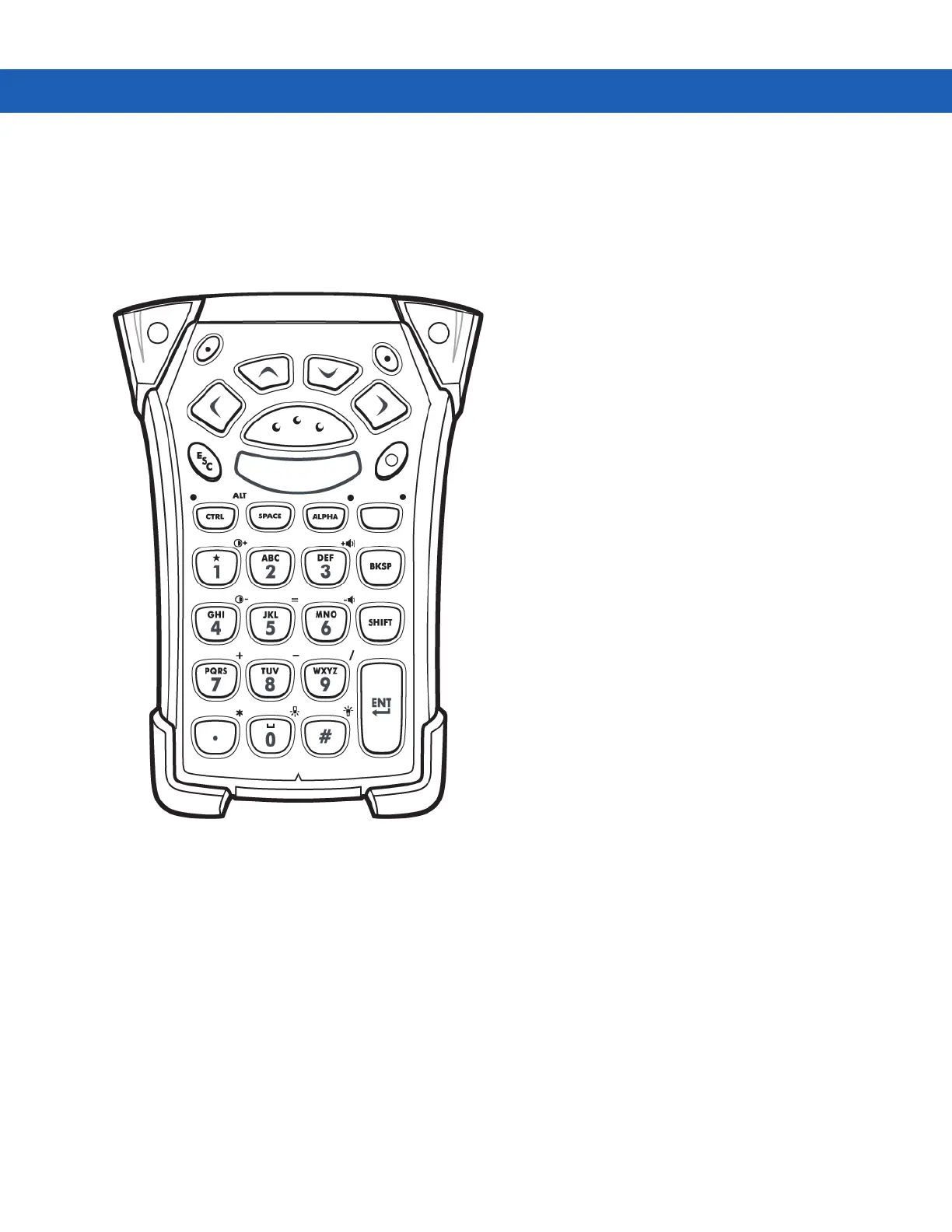

Figure
B-1
28-Key Keypad
197
199
