LED Indicators
The MC92N0-G has an LED Indicator Bar that contains LEDs that indicate scanning and charging status. Table 1-2
describes the LED indications.

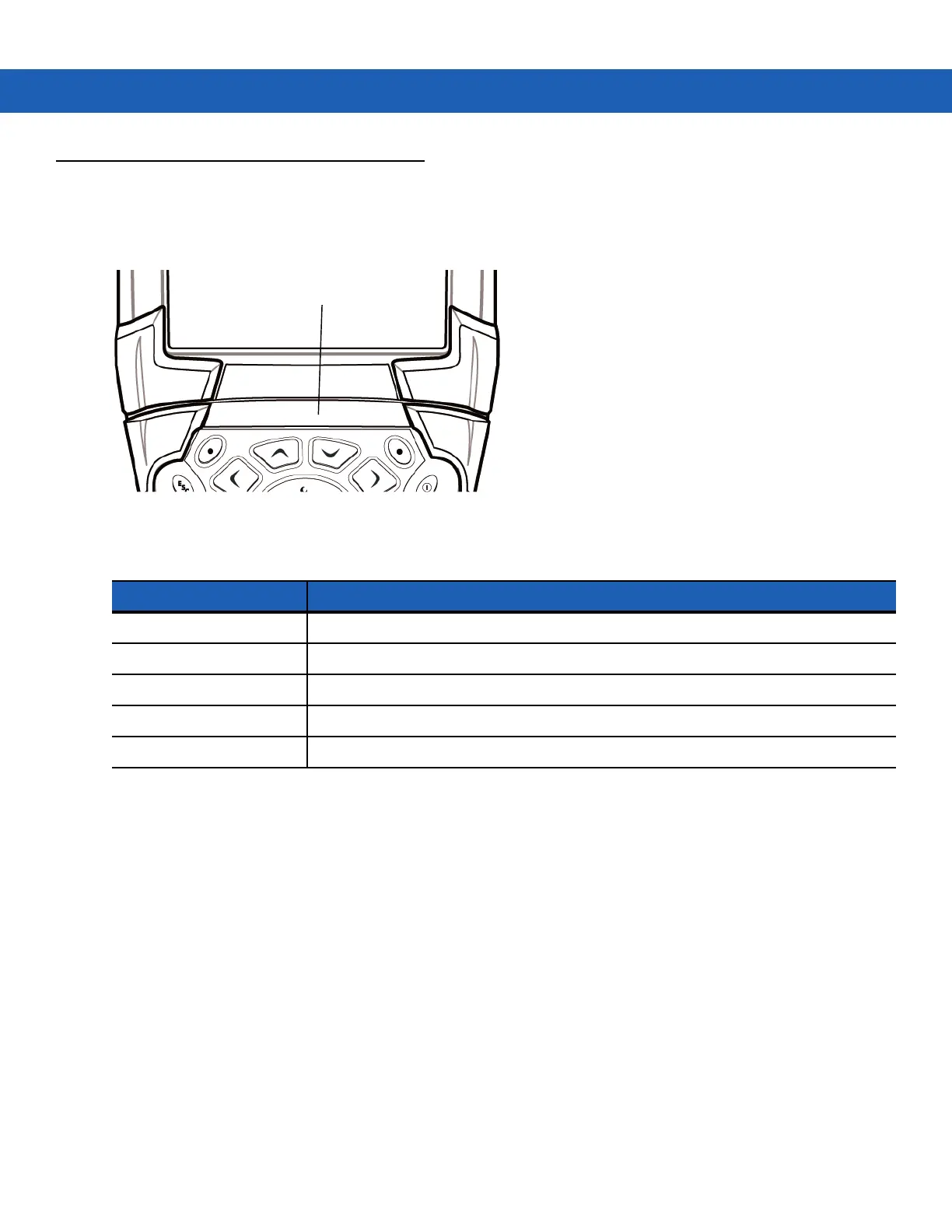

Figure 1-8 MC92N0-G LEDs Indicator Bar
Keypads
The MC92N0-G has the following interchangeable modular keypads:
• 28-key keypad
• 43-key keypad
• 53-key keypad
• 3270 Emulator
• 5250 Emulator
• VT Emulator.
Refer Appendix B, Keypads to for detailed information on each keypad.
Table 1-2 MC92N0-G LED Indications
LED State Indication
Solid Red Laser enabled, scanning/imaging in process.
Solid Green Successful decode/capture.
Slow Blinking Amber Main battery in MC92N0-G is charging.
Fast Blinking Amber Error in charging; check placement of the MC92N0-G.
Solid Amber Main battery in MC92N0-G is fully charged.
LED Indicator Bar
