Keypads B - 11
3270 Emulator Keypad
There are two physical configurations of the 3270 emulator keypad, however both of the keypads are functionally
identical. The 3270 emulator keypad contains a Power button, application keys, scroll keys and a function key. The
keypad is color-coded to indicate the alternate function key (blue) values. Note that keypad functions can be
changed by an application so the MC92N0-G’s keypad may not function exactly as described. See Table B-4 on
page B-12 for key and button descriptions and Table B-7 on page B-20 for the keypad’s special functions.

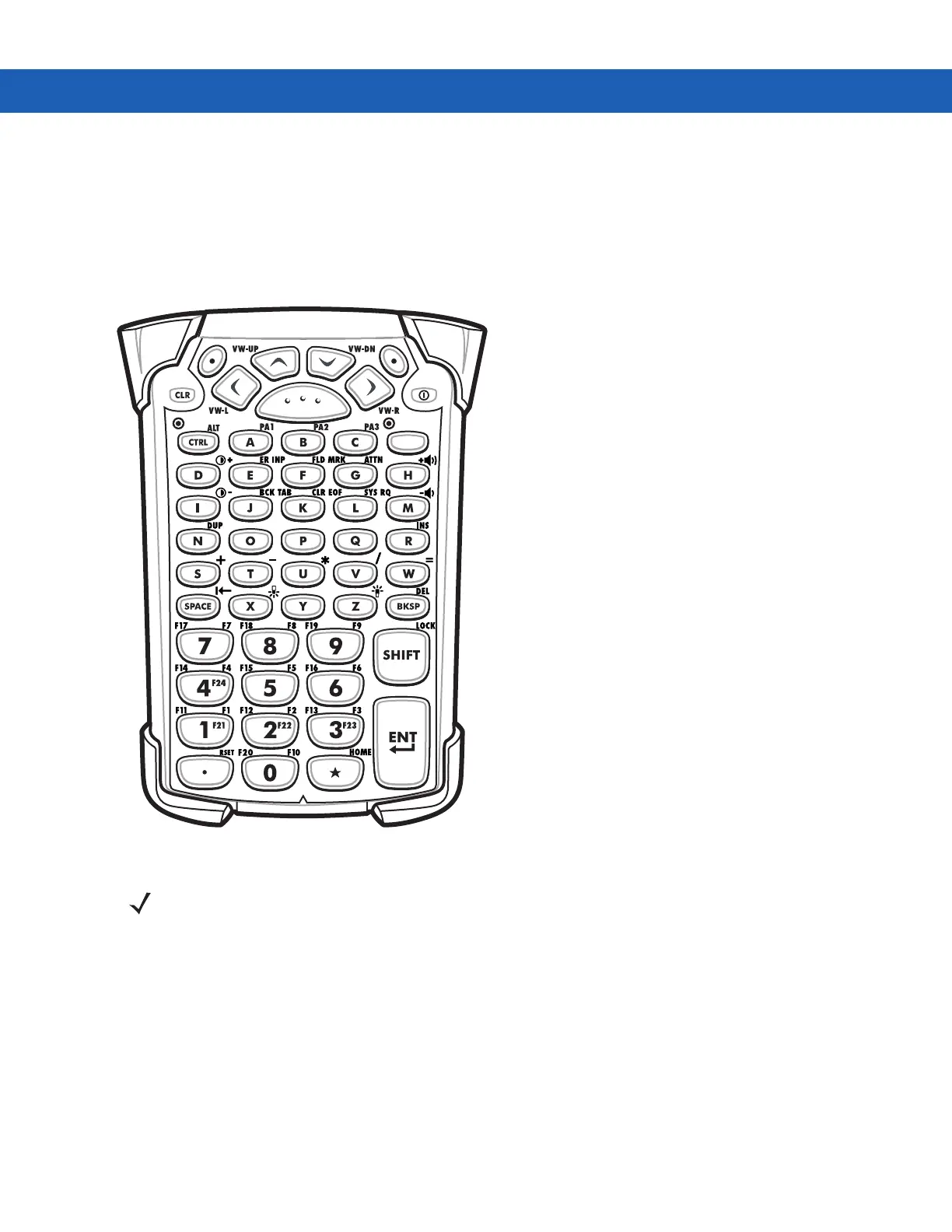

Figure B-4
3270 Emulator Keypad
NOTE The 3270 emulator keypad is only used when the MC92N0-G is running the 3270 emulation software. On
On Windows devices, when the MC92N0-G is not running the 3270 emulation software, the 3270 keypad
functions are the same as a 53-key keypad.
