7 - 24 MC92N0-G User Guide
Forklift Cradle
The Forklift cradle:
•
holds a MC92N0-G securely in place.
•
provides power for operating the MC92N0-G.
•
provides power for charging a docked MC92N0-G.
•
provides one serial and one USB port for data communication between a docked MC92N0-G and an external
device (e.g., a scanner/printer). Note that Android devices only support USB.
•
provides power to each port (500mA at 5V). Both ports can be used simultaneously.
When installed without the power converter, the cradle holds a MC92N0-G securely in place.
The power converter conditions the fork lift battery power for the fork lift cradle. There is a high-voltage and
low-voltage version of the power converter. Make sure that you have ordered the correct converter.
•
Low Voltage (Model: 50-14000-252R) — For nominal voltage input of 12V and 24V systems.
•
High Voltage (Model: 50-14000-251R) — For nominal voltage input of 36V, 48V, and 60V systems.

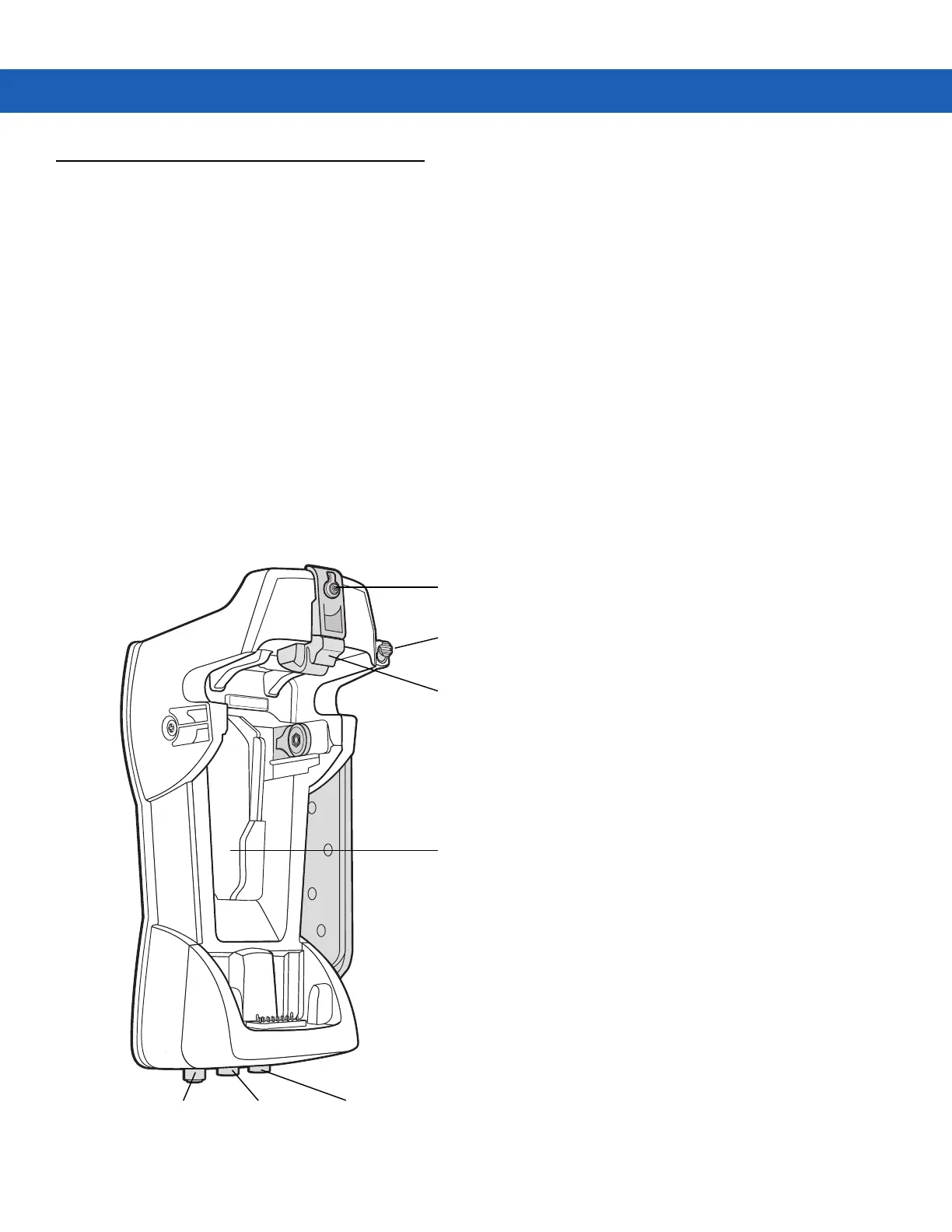

Figure 7-20
Forklift Cradle
MC92N0-G handle slot
stylus holder (and stylus)
mobile computer
release button
MC92N0-G locking mechanism
power-in port Serial port USB port
