Magnetic Stripe Reader
This section describes how to set up and use the snap-on MSR with the MC92N0-G. The MSR snaps on to the
bottom of the MC92N0-G and can be easily removed when not in use.

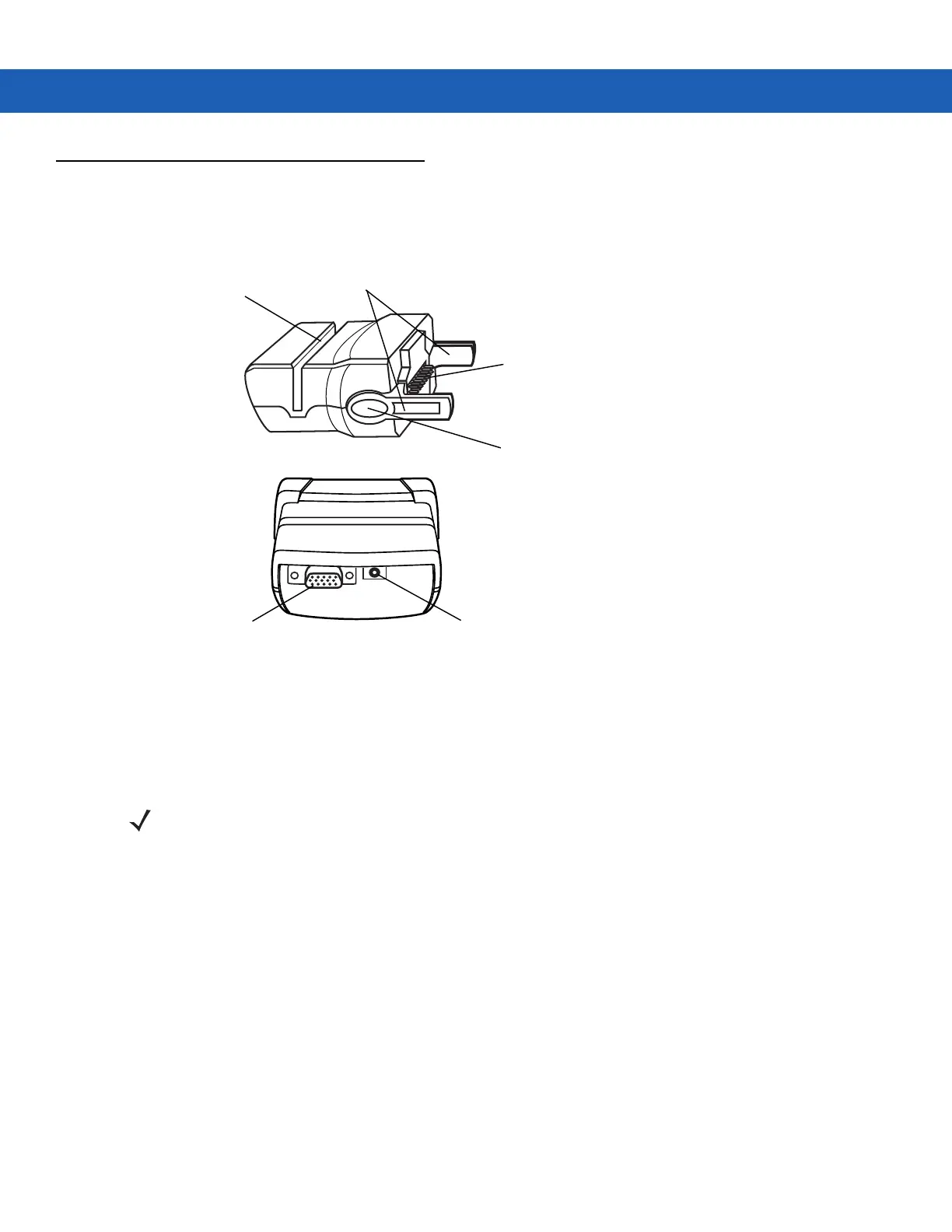

Figure 7-6
Magnetic Stripe Reader
When attached to the MC92N0-G, the MSR:
•
Provides power for operating the MC92N0-G, with the appropriate power connection.
•
Allows the MC92N0-G to capture data from magnetic stripe cards. (To download MSR data capture software,
visit: http://www.zebra.com/support)
•
Provides serial connection through the serial pass-through port for communication with a serial device, such
as a host computer (Windows devices only).
•
Provides USB connection through the USB pass-through port for communication with a USB device, such as
a host computer.
•
Charges the MC92N0-G’s battery, when used with the appropriate power supply.
Attaching and Removing
To attach, snap the MSR onto the bottom of the MC92N0-G.
Card Reader Slot
Latches
Power Port
Communications Port
Pogo Pin Pass-through
Connector
Latch Grip
NOTE When a MC92N0-G with Windows Embedded Handheld is connected to a host computer through the MSR
and an ActiveSync connection is made, the WLAN radio (if applicable) are disabled. This is a Microsoft
security feature to prevent connection to two networks at the same time.
