User’s Guide Kona cutting plotter
Operation panel
AP-75380 - Revision 1.2 113
4

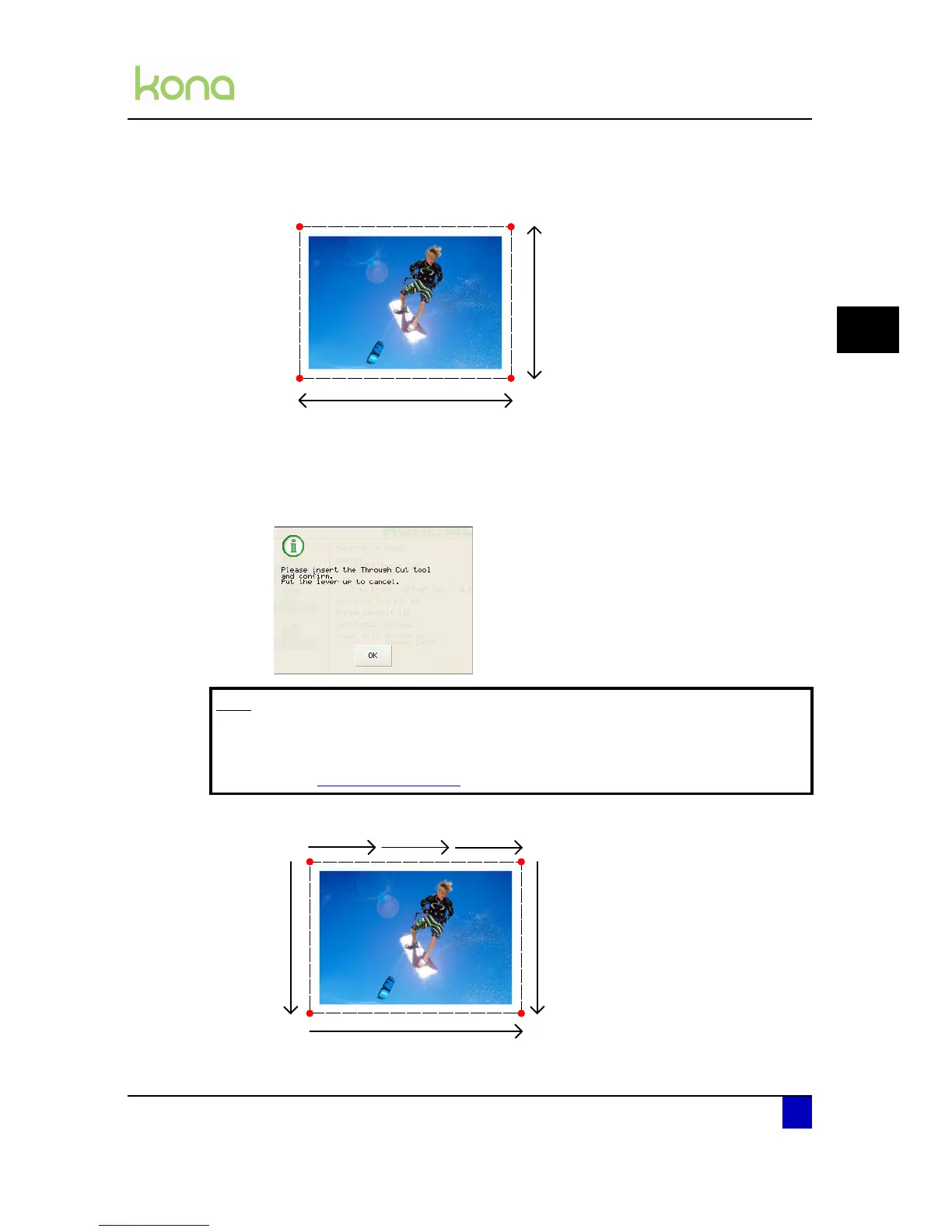

Step 7: Move the penhead using the jog keys until the knife point is positioned above P1
and press OK when done.
Step 8: The cutter will automatically feed the media the length set previously. Use the jog
keys to set the second corner more precisely if necessary.
Step 9: Do this until you have selected all 4 corners in correct order (P1 – P2 – P3 – P4).
Step 10: Insert the through cut tool when asked and press OK when done.
Step 11: The poster will be trimmed according to the routine shown below:
P1
P2
P4
P3
X Length
Y Width
Note
 This message will only be displayed when the swap alert setting is set to
multi-tool. Otherwise, the poster will be cut through without this notification.
Refer to Swap alert on page100
1
23
465
