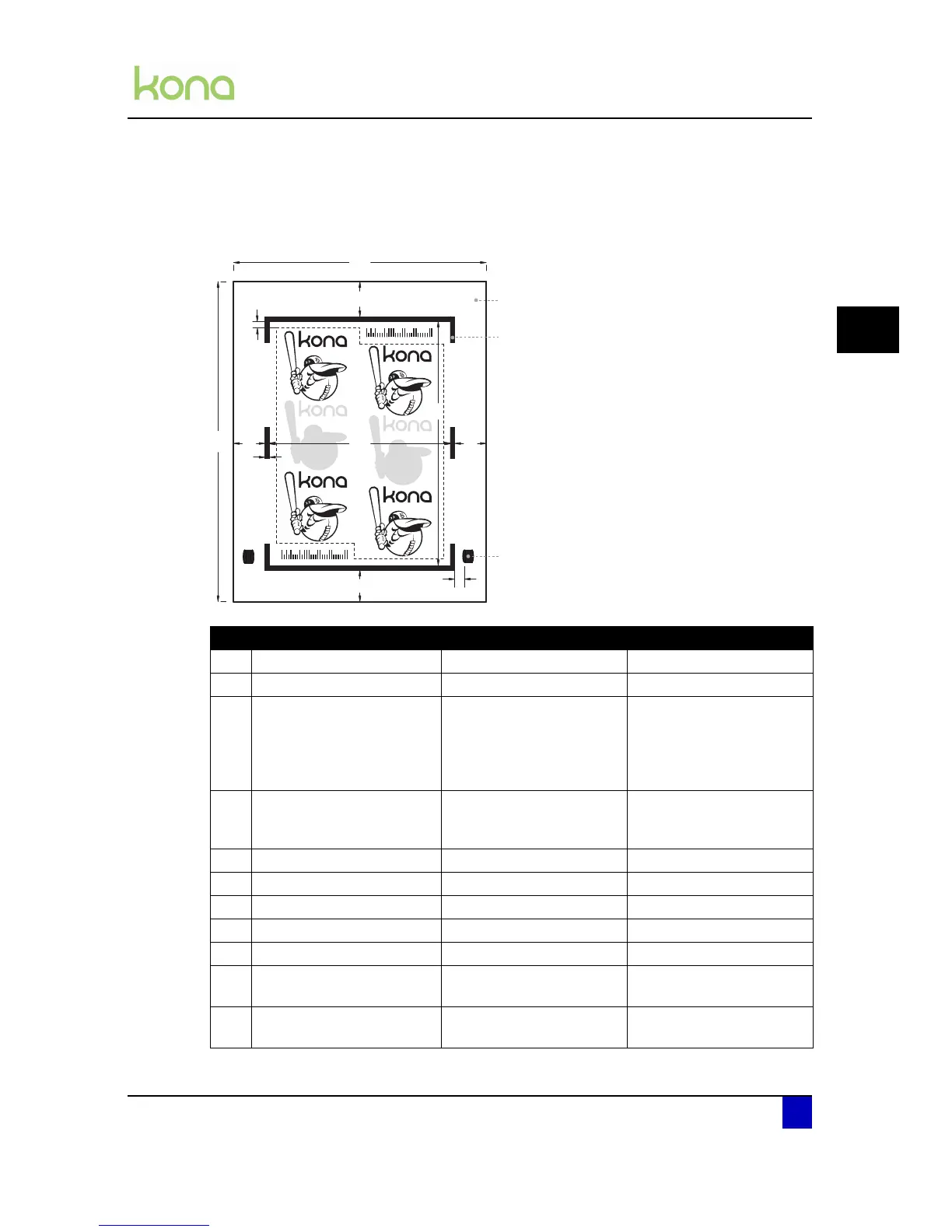

6.4.2 Bounding box specifications
The frame reference box printed or generated around the contour cut data should respect the
following guidelines:
1
2
3
4
5
6
7
8
9
10
11
Sheet
Bounding box
Pressure roller
N° Description Minimum Maximum
1 White edge at the right side 20 mm 300 mm
2 White edge at the left side 20 mm 300 mm
3
White edge at the rear side
 Sheet
 Between 2 boxes
90 mm
50mm
Add extra space when
working with curled media
250 mm
250 mm
4 White edge at the front side
20 mm
Add extra space when
working with curled media
300 mm
5 Reference box thickness 3 mm 20 mm
6 Reference box width 250 mm -
7 Reference box height 350 mm -
8 Media height 440 mm 10 m
9 Media width 280 mm Device limit
10
Margin between image and
bounding box / barcode
6 mm -
11
Distance between pressure
roller and bounding box
5 mm -
