User’s Guide Kona cutting plotter
Basics
AP-75380 - Revision 1.2 47
3
3.6 Loading media
3.6.1 Media width
According to the size of your cutter, following media width can be cut.
3.6.2 Pressure roller positioning
As you notice, there are 2 pressure rollers on a Kona 760 and 3 pressure rollers on a Kona
1400 or on a Kona 1650.
Positioning the pressure rollers on a Kona 760 is fairly easy. But on a Kona 1400 or Kona
1650 there are more possibilities.
This chapter will explain the different possibilities.

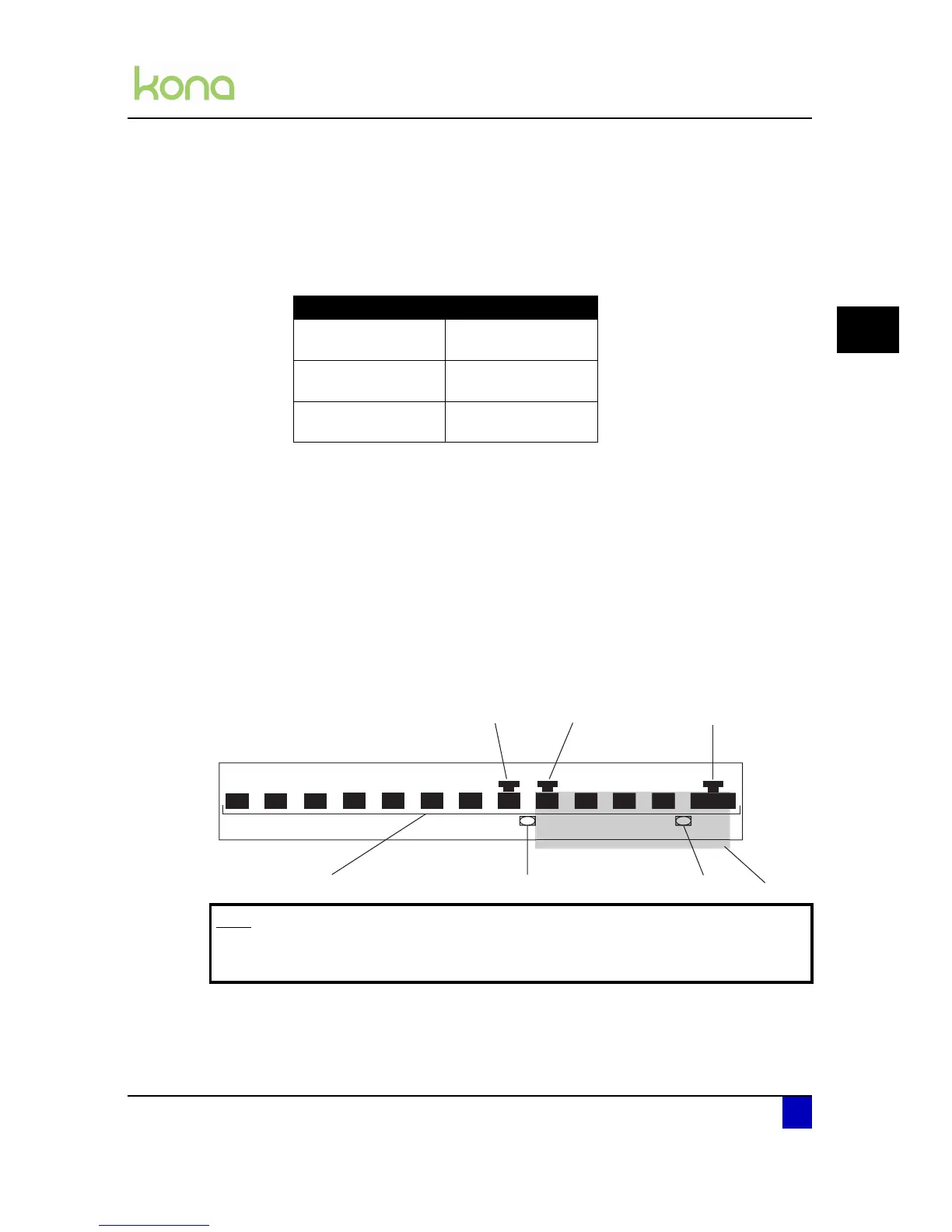

In the picture below you will find a schematic overview of the cutter. You can divide the picture
in different blocks. Please keep below picture in mind to know which item we will discuss.
Type Cutting range
Kona 760
Min. 104 mm
Max 760 mm
Kona 1400
Min. 104 mm
Max 1400 mm
Kona 1650
Min. 104 mm
Max. 1650 mm
Pressure rolller 1
Pressure rolller 2Pressure rolller 3
Media
Sensor 1
Sensor 2
dierent pressure roller positions
1
23
4
5
6
7
8
9
10
11
12
13
Schematic overview Kona 1650
Note
 The most important factor is that there is always 1 pressure roller in the middle
of the grit shaft.
