User’s Guide Kona cutting plotter
Contour cutting
AP-75380 - Revision 1.2 131
6

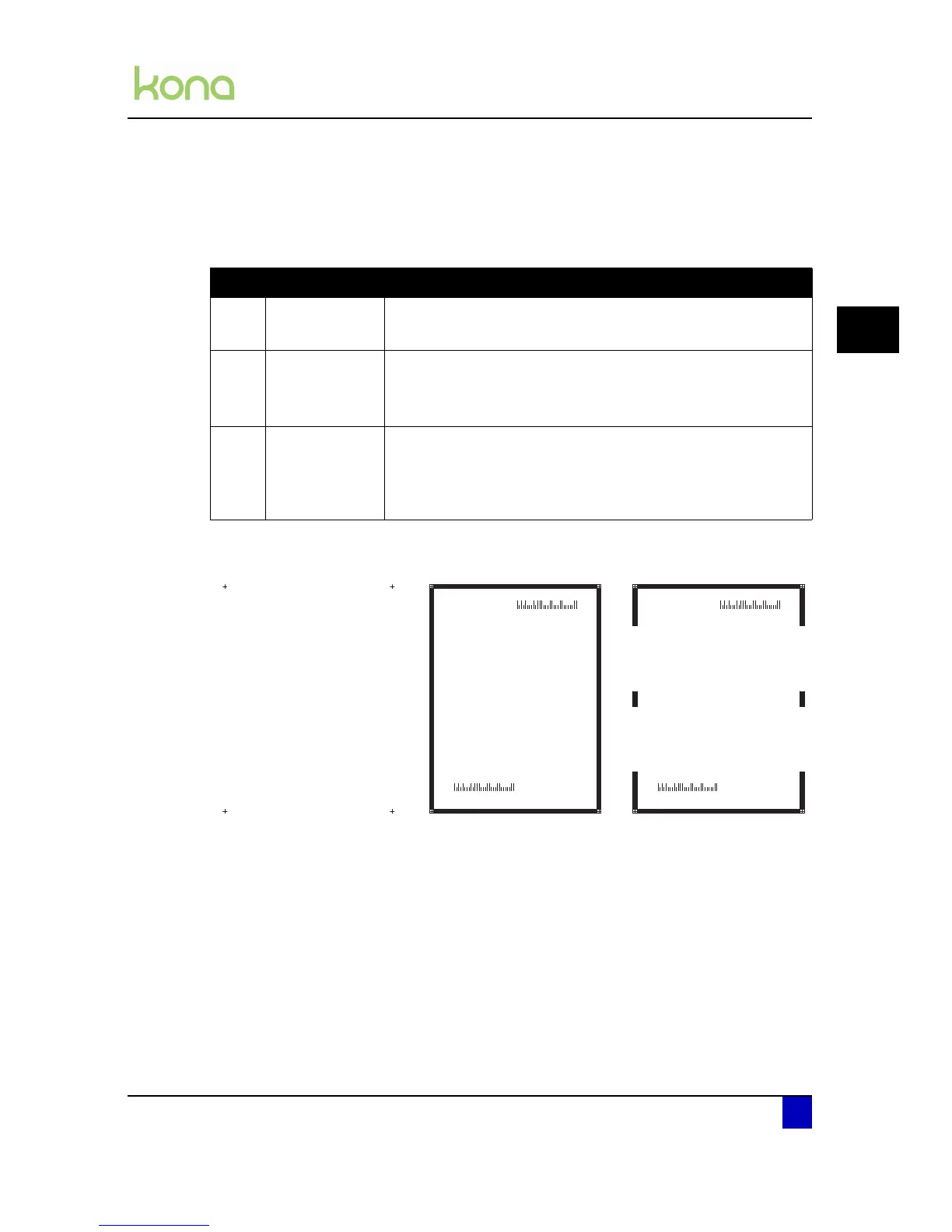

6.2 Different alignment methods
There are some different approaches to cut your signs which also implicate a different
alignment method.
N° Description Info
1 Manual
Manual alignment method
 Manually set the size of the paper and 4 corners of the box
2 Single Frame
Automatic alignment with barcode and single frame
 Automatic measurement of the reference box and barcode
 Only 1 reference box
3 Multi Frame
Automatic alignment with barcode and multi-segment frame.
 Automatic measurement of the reference box and barcode
 Multiple segments in 1 reference box 
(for long files to guarantee precision).
Manual alignment Single frame alignment Multi frame alignment
P4 P2
P3 P1
00000000000
00000000000
