Both sensor 1 and sensor 2 are covered. The media width is determined by pressure roller 3.
Position the pressure rollers as follows:
Possibility 4
Loading full sized media.
Both sensor 1 and sensor 2 are covered. The media width is determined by pressure roller 3.
Position the pressure rollers as follows:
Position pressure roller 2 Position pressure roller 3
Kona 1400 Disabled 5 - 7
Kona 1650 Disabled 6 - 8
Note
Refer to Pressure roller positioning warning on page158 in case a warning message
appears.
Position pressure roller 2 Position pressure roller 3
Kona 1400 5 - 7 8 - 11
Kona 1650 6 - 8 9 - 13
12
3
4
5
67
8
9
10
1112
13

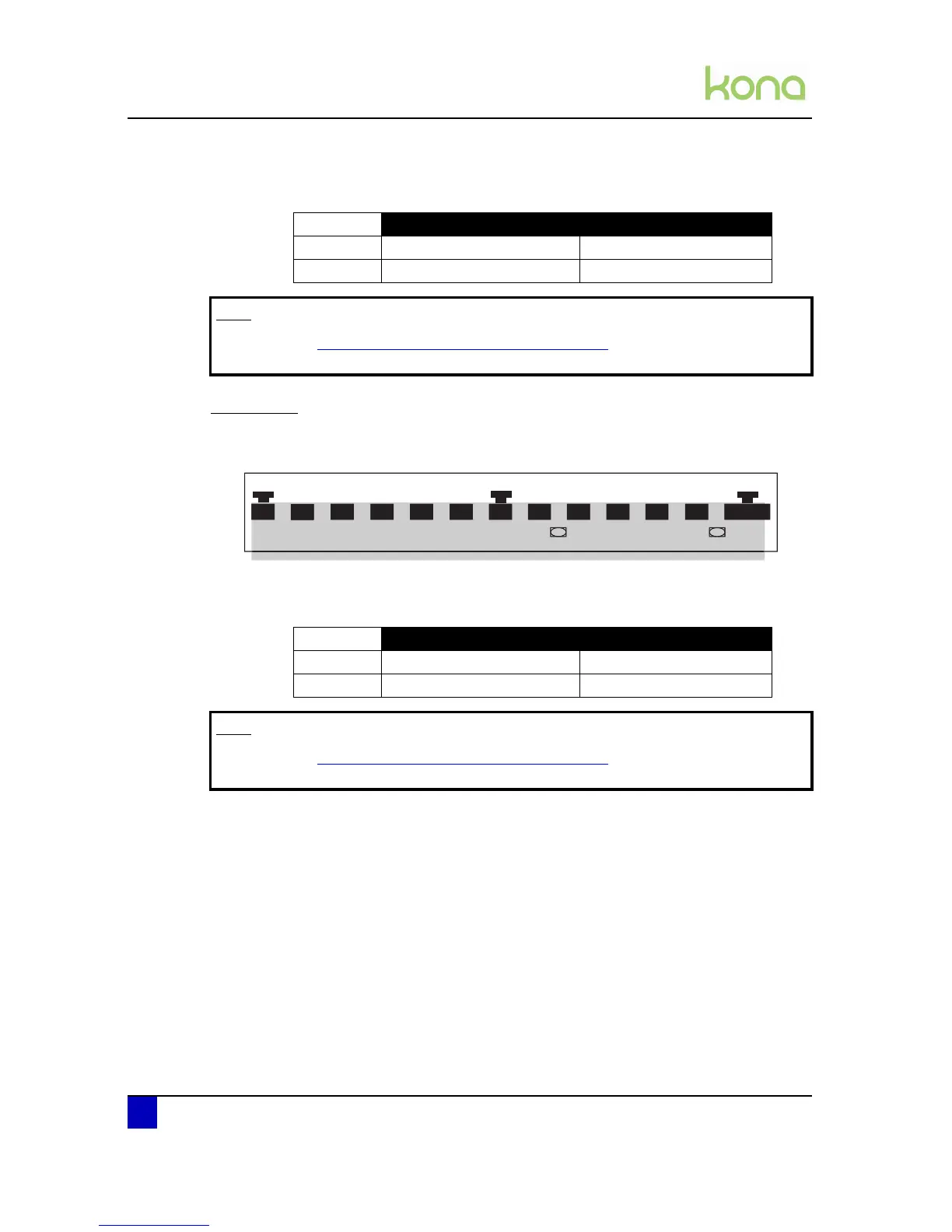

Schematic overview Kona 1650
Note
Refer to Pressure roller positioning warning on page158 in case a warning message
appears.
