MUTOH Kona - Knife Holder with Nonius

User’s Guide Kona cutting plotter
Basics
AP-75380 - Revision 1.2 39
3

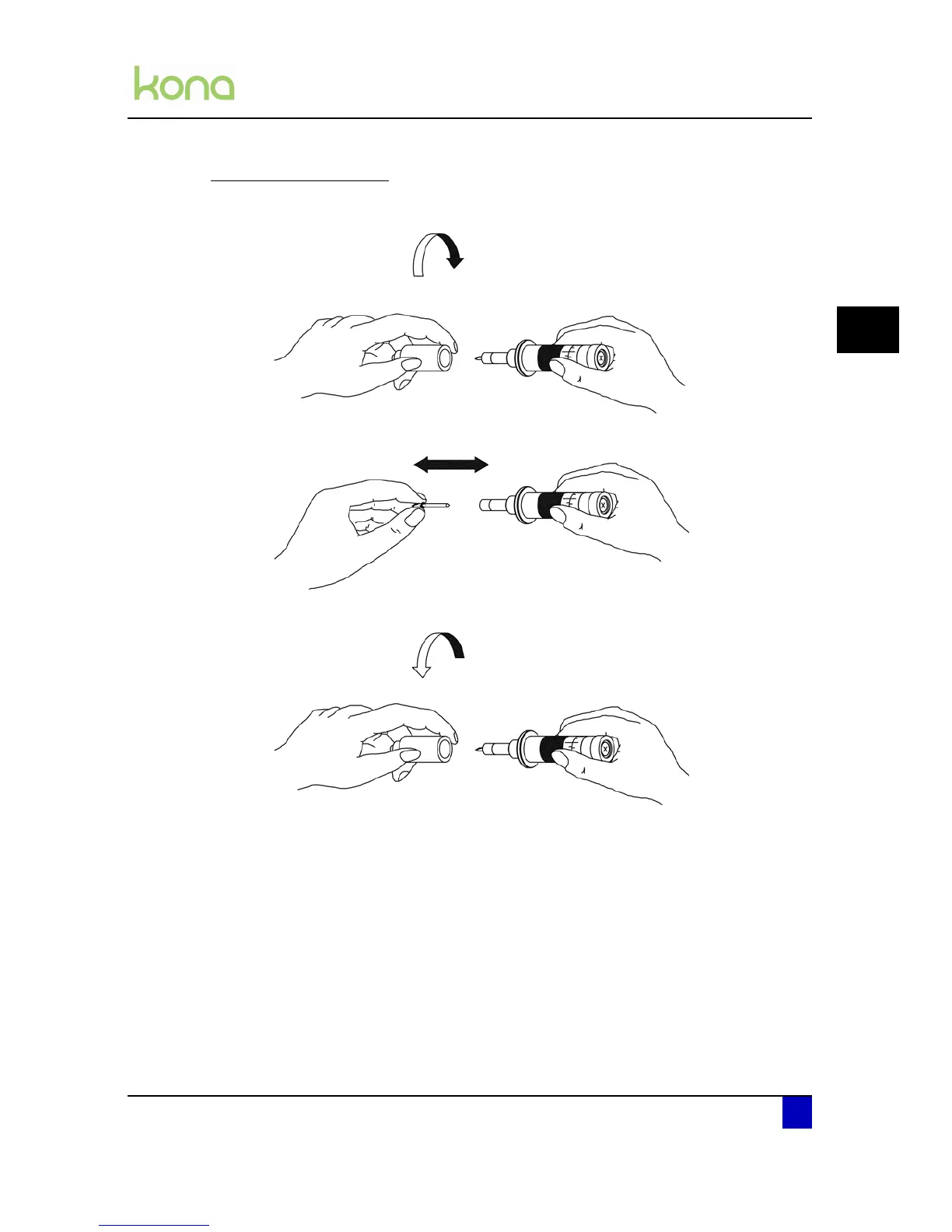

Knife holder with nonius
Step 1: Take the body into one hand and remove the base part.
Step 2: Pull the old blade out of the holder and insert a new one.
Step 3: Place the base part on top of the holder assembly and twist it tightly.
