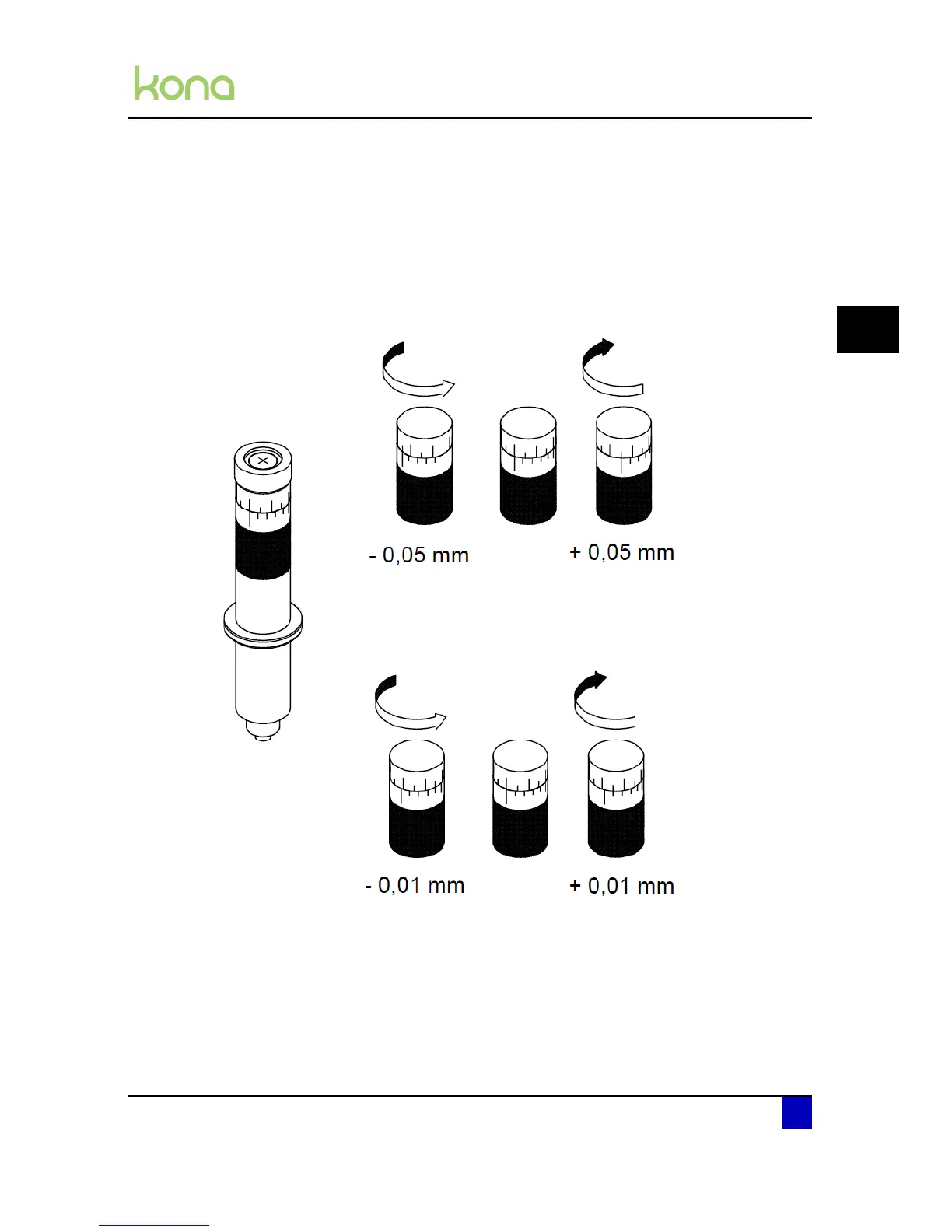

3.4.4 Features of knife holder with nonius
For some applications it might be convenient to be able to very accurately change the depth
of the cutting blade. For those applications, Mutoh can provide you with a knife holder,
featuring a nonius (vernier) with which it is possible to adjust the depth of the knife in
increments of 0.01 millimetre (0.0004”) The upper scale lines make it possible to change the
knife depth over 0.05 mm (0.002”).
The lower scale (nonius) makes it possible to change the knife depth over 0.01 mm (0.0004”).
