Contour cutting
AP-75380 - Revision 1.2 137
6
When the cutter establishes a slight difference between the thicknesses of the frame in one or
more corners, a re-measuring will be performed at the respective side of the frame but slightly
higher or lower. If there is still dissimilarity, a warning message will be displayed on the panel
and a cross will be cut in the lower right corner.
Refer to Contourcutting errors and warnings (ID 6201-6271) on page168

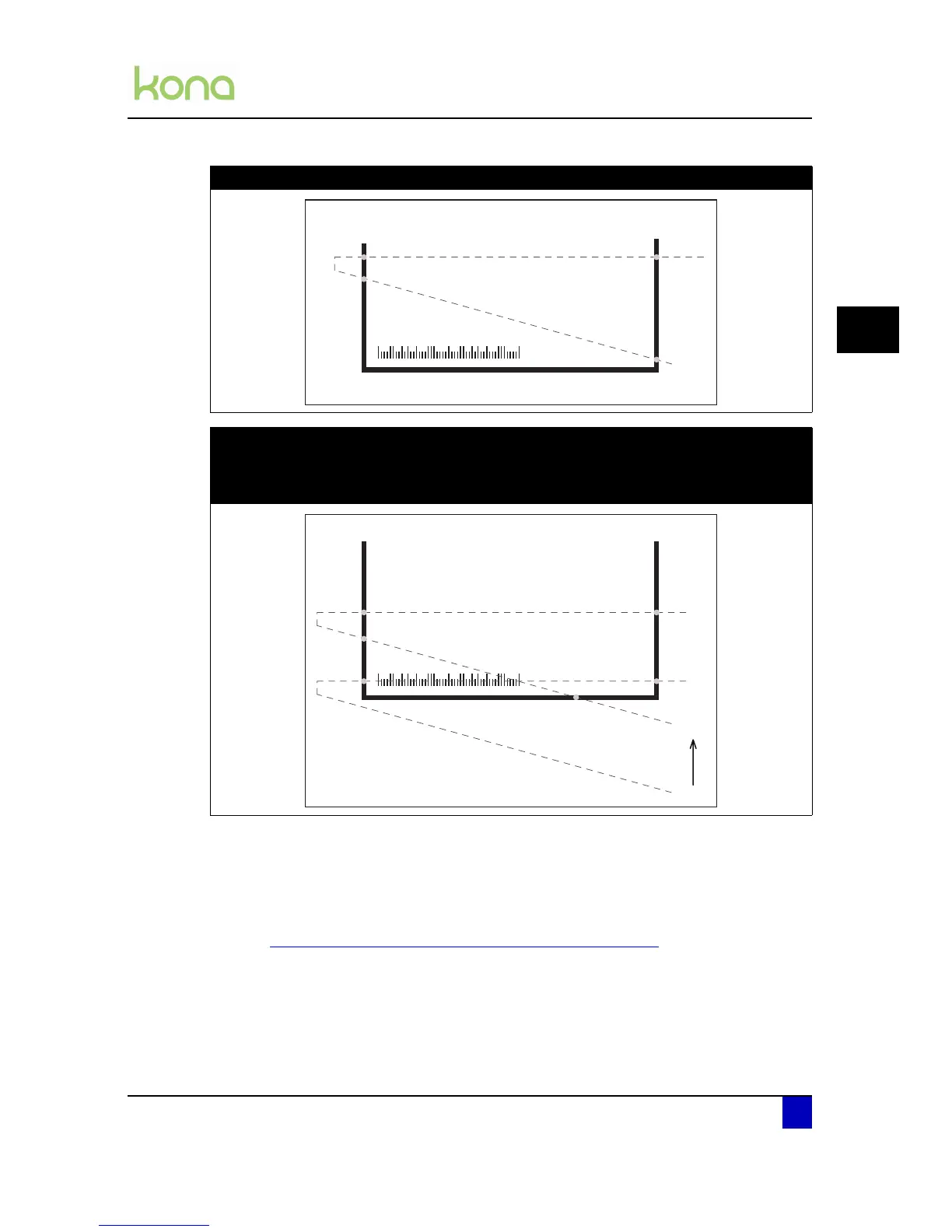

Situation 2 = Both sides detected (4 points)
Situation 3
1st scan > both sides detected (2 points)
feed of media to start second fast scan
2nd scan > bottom and side of frame detected (4 points)
1
2
3
4
scan 1
scan 2
scan 1
1’
2’
3’
4’
1
2
