Installation Expansion Power Supplies

AFP-200 PN 15511:H2 10/14/2002 185

Figure 162 shows wiring connections between the APS-6R and the control panel:

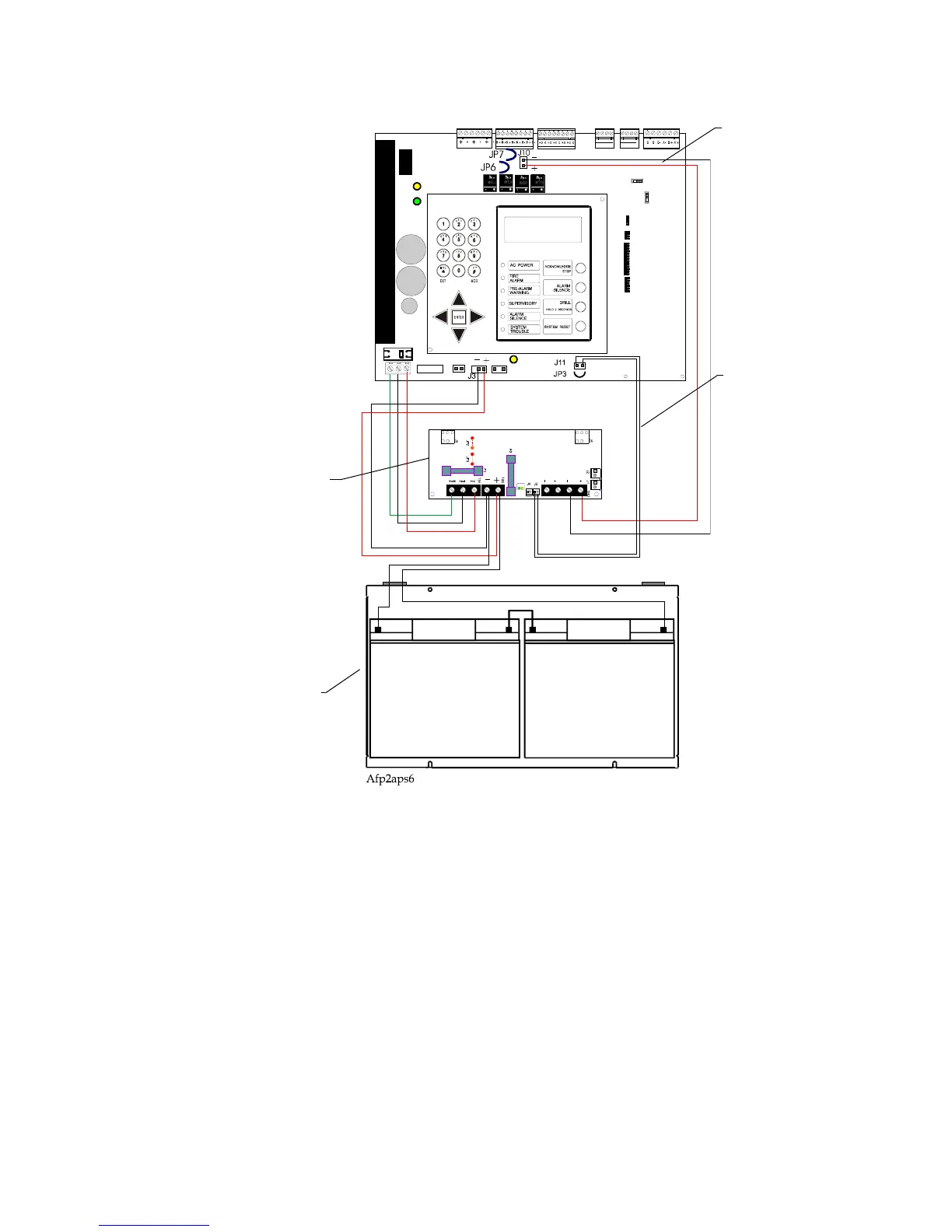

Figure 164 Wiring the APS-6R to the Control Panel

Battery

APS-6R

Power Cable

PN 71093

Battery

BB-17 Battery Box

TB2

Supervisory Cable

PN 71033

JP3

JP6

TB1

TB7

JP7

J10

TB3
