Installation Wiring a Signaling Line Circuit (SLC)
48 AFP-200 PN 15511:H2 10/14/2002
Figure 28 shows typical wiring for a supervised and power-limited four-wire SLC that
meets NFPA 72 Style 6 requirements.
CAUTION: Terminate shield drain wire according to the instructions in “SLC
Shield Termination” on page 43.

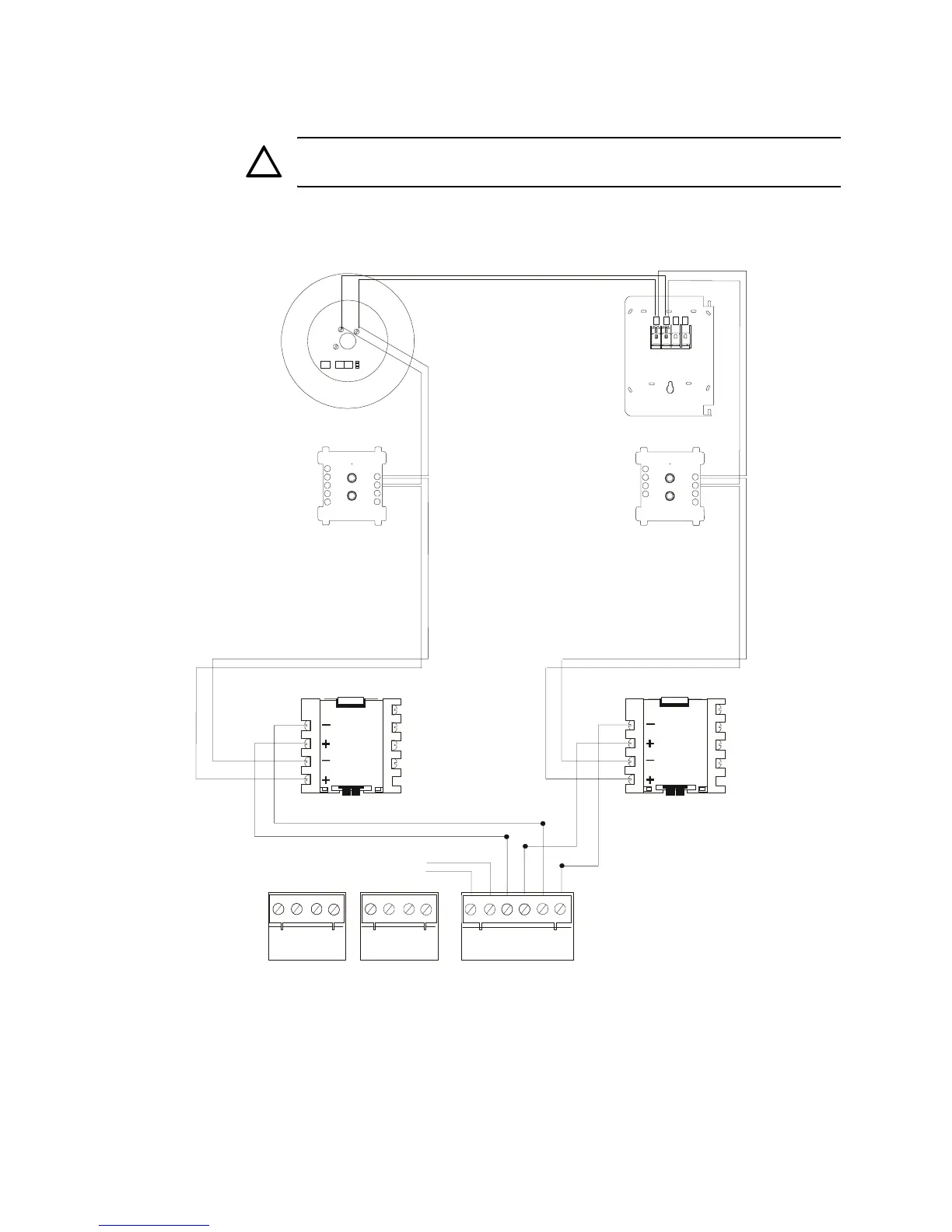

Figure 28 Typical Four-wire SLC Circuit (Style 6)
!!
TB4
TB5 TB6
TX REF RX REF
OUT OUT IN IN
1 2 3 4 5 6
A B B+ A+ B- A-
2(+)
1(-)
3
LOOP ADDRESS
TYPE
Low
Med
High
1
2
3
4
1
2
3
4
1 2 3 4
90
81
72
63
54
-
+
+
-
90
81
72
63
54
-
+
+-
CPU
Connect SLC Out to TB 6-3 (+) and TB 6-5 (–).
Connect SLC Return to TB 6-4 (+) and 6-6 (–).
B710LP Detector Base
Use with FSP, FSI, and FST
Series intelligent detectors
no connection
NBG-12LX
Monitor ModuleControl or Relay
Module
Loop Isolator Module Loop Isolator Module
AFP200-SLC-6.cdr
Technical Manuals Online! - http://www.tech-man.com

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
