Omron NS Programming Manual

Section 2 NS Series Functions 2-5 Communications Address Settings
2-54
NS Series Programming Manual

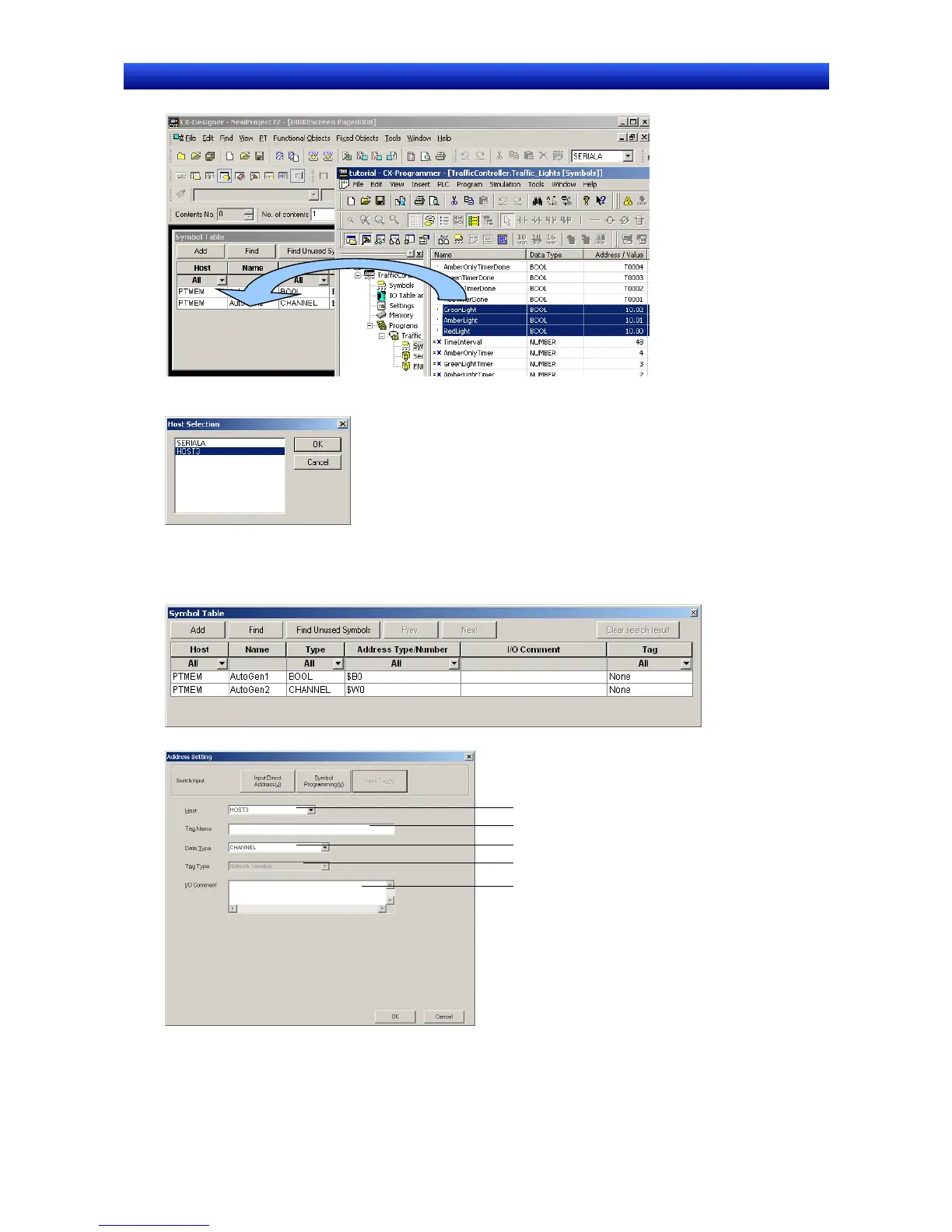

3. A dialog box for selecting the host for which the tag will be set will be displayed. Select a host that
can use tags, and then click the OK Button.
4. The tag will be registered in the symbol table of the CX-Designer.
Registering New Tags in the Symbol Table
1. Click the Add Button in the CX-Designer’s Symbol Table Dialog Box.
2. The Address Setting Dialog Box will be displayed. Click the Input Tag Button.
1
2
3
4
5

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
