Omron NS Programming Manual

Section 2 NS Series Functions 2-6 Fixed Objects
2-62
NS Series Programming Manual

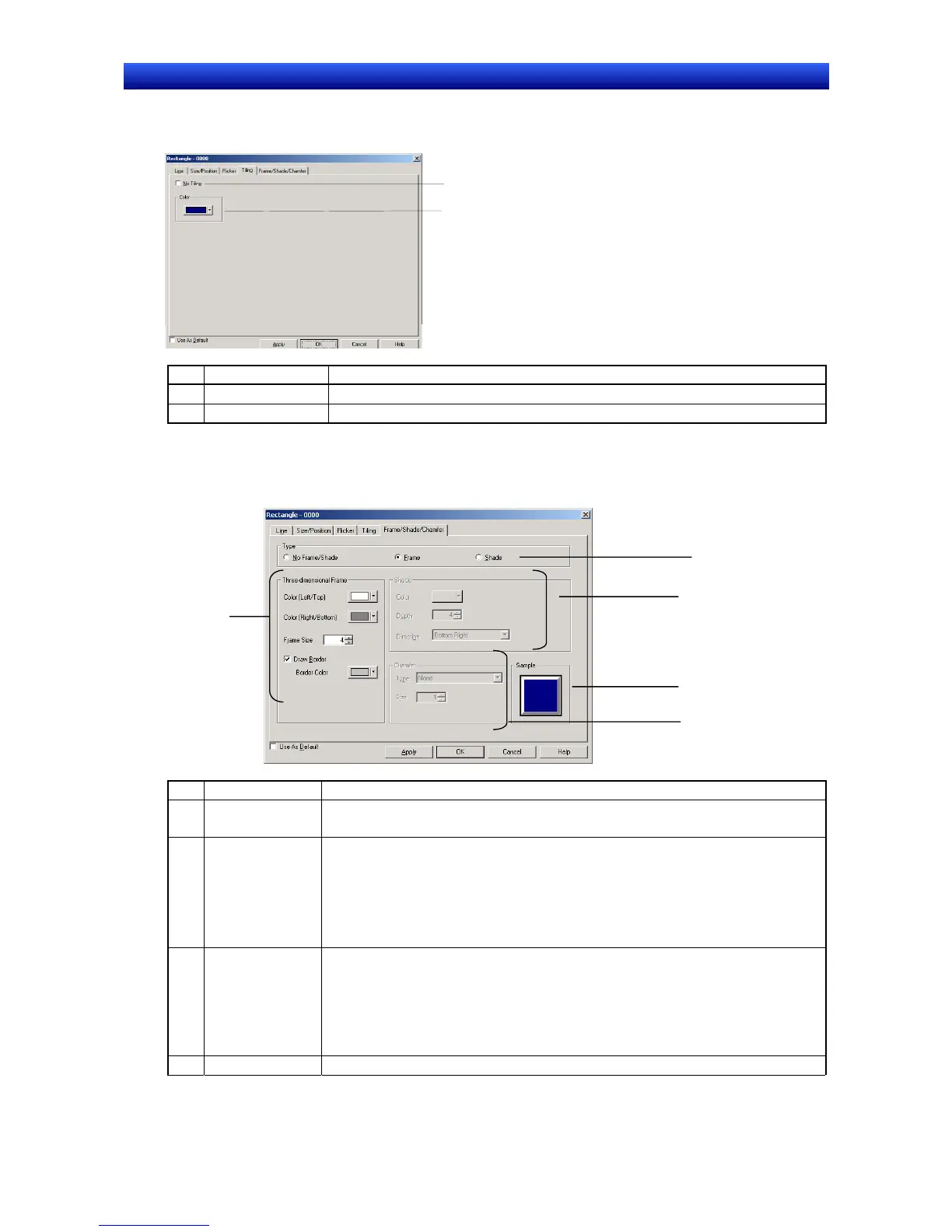

Tiling
Set the color for the fixed object.
1
2
No. Setting Details
1 No Tiling Select whether or not to tile the object.
2 Color Set the object color.
Frame, Shade, and Beveling
Specify the frame, shading color, size, and bevel setting for the three-dimensional display of fixed
objects.
1
3
2
4
5
No. Setting Details
1 Type Select one of the following three types of fixed objects.
No frame or shade, Frame, or Shade
2 Shade
Set the shade color, depth, and direction.
Select the
Shade Option.
Set the color with the
Color setting.
Set the depth under
Depth.
Select one of the four shade direction types.
Top Left, Top Right, Bottom Left, or Bottom Right
3 Three-
dimensional
Frame
Set the frame color, size, and border.
Select the
Frame Option.
Set the color with the
Color (Left/Top) and Color (Right/Bottom) settings.
The size of the frame is set under
Frame Size.
When drawing a frame border, select the
Draw Border Option to draw the frame
border and specify the color with the
Border Color setting.
4 Sample The current settings will be reflected.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
