Section 2 NS Series Functions 2-8 Common Functional Object Functions
2-82
NS Series Programming Manual
Scalable Font
The following scalable font can be used.
Font Size Horizontal magnification
Scalable Gothic 6 to 255 pixels 50% to 200%

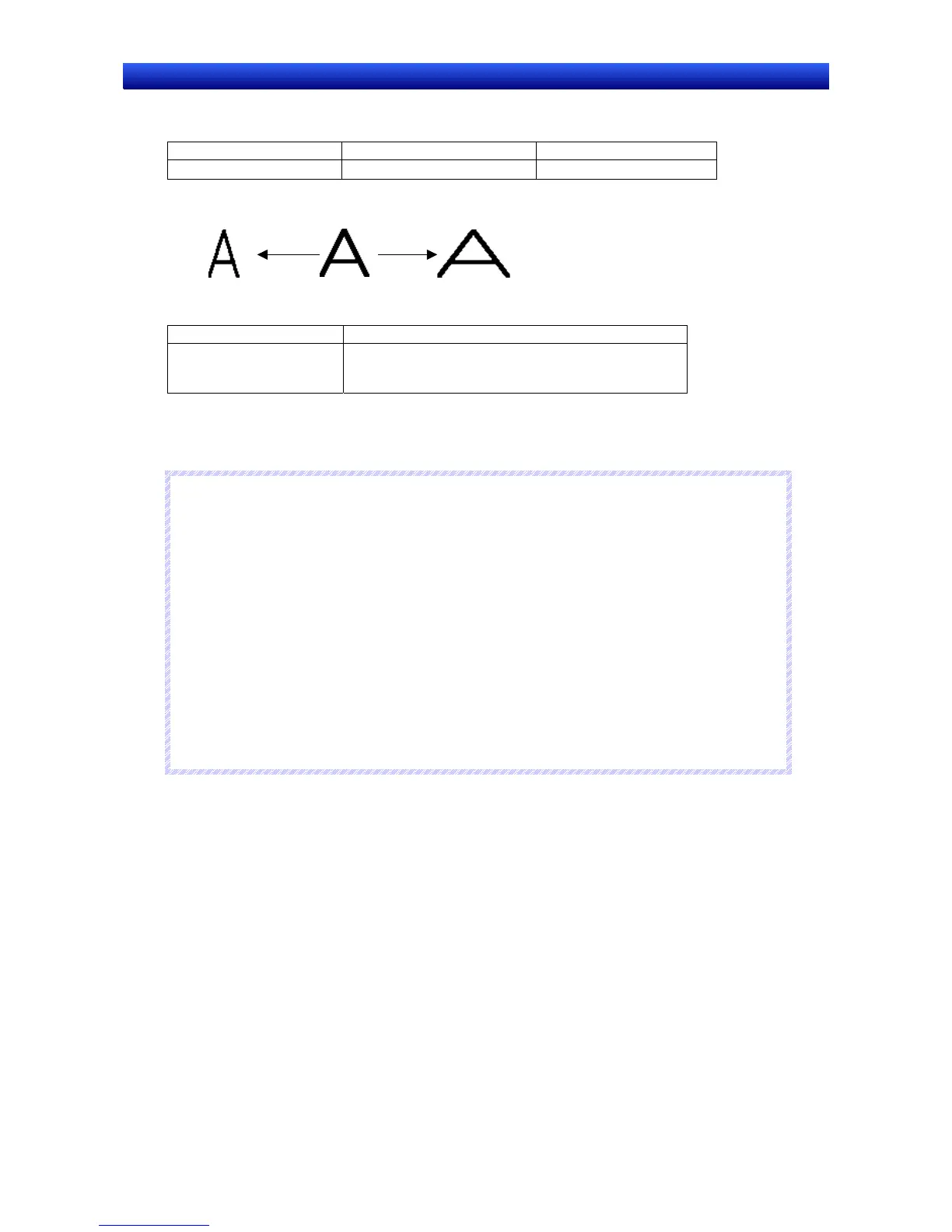

The scalable font can be enlarged or reduced horizontally.
Reduce
Enlarge
Seven-segment Font
The following 7-segment font can be used.
Font Sizes
7-segment numeral 8x14, 12x21, 16x27, 20x34, 24x41, 32x54, 48x82,
64x108, 80x135, 96x161, 112x188, 128x216, 160x269,
200x336 (See note.)
Note: For the NS5, NSJ5, and NSH5, sizes 8x14 to 96x161 can be used.
The following characters can be displayed in 7-segment font: 0 to 9, A to F, the plus and minus signs (+
and –), periods (.), commas (,), spaces ( ), and colons (:).
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦
Precautions When Using Raster Fonts
•
If \ is entered using raster fonts, a backslash will be displayed on the PT.
♦
Vector fonts cannot be used if text is used for character strings or to indirectly specify character
color or background color.
♦
Refer to the appendices for details on the characters that can be displayed.
♦
The scalable font can be used for project versions 7.0 or higher.
♦
The 7-segment font and Gothic numeral font can be used for project versions 7.0 or higher.
♦
Only characters that can be displayed in the Gothic numeral or 7-segment font will display correctly.
Other characters will not be displayed correctly.
♦
Use the scalable font if displaying text in Thai.
♦
If background fill is set to OFF when 7-segment numeral fonts are displayed on the PT, then a
rough outline will be displayed for the fonts. Set the background fill to ON to display the fonts
smoothly.
Setting Text Attributes
Click the Text Attribute Button to display the Text Attribute Dialog Box. Set the font, size, and other text
attributes.
