Section 2 NS Series Functions 2-9 Buttons
2-125
NS Series Programming Manual
1
2
3

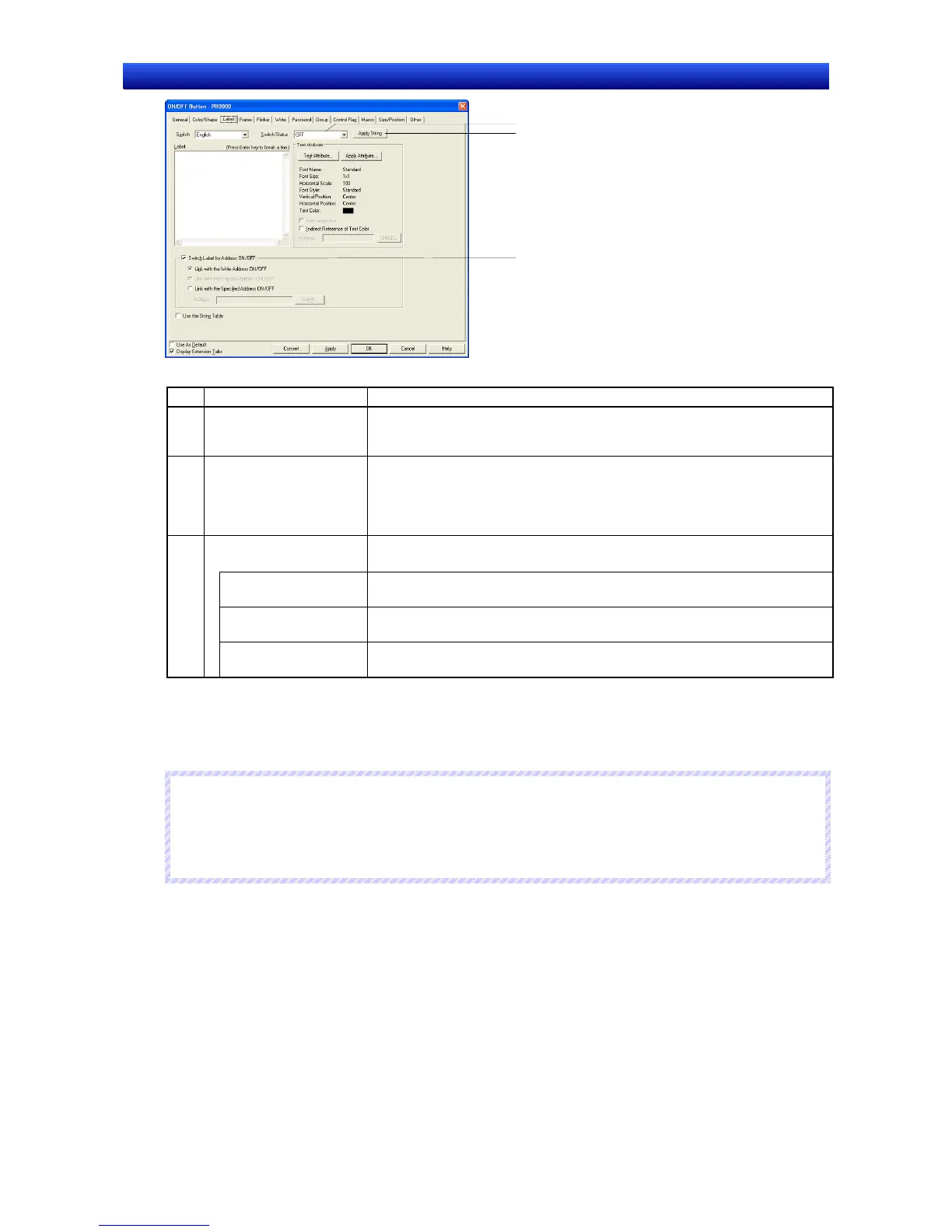

No. Setting Details
1 Switch Status
Select ON or OFF from the displayed list and edit the label for when the
specified address is ON/OFF. The ON/OFF label is switched each time the
button is clicked.
2 Apply String Uses the current character string for all object states.
The string is used as the label not only for the selected object, but for all other
object states as well.
If the Switch Status cannot be set, then the Apply String Button can also not be
set.
Switch Labels for
Address ON/OFF
Switches the label when the specified address turns ON or OFF.
ON/OFF is also enabled when Switch labels for Address ON/OFF is selected.
Link with Write
Address ON/OFF
Switches label display when the Write Address, which is specified on the
General Tab Page, turns ON or OFF.
Link with Display
Address1 ON/OFF
Switches label display when Display Address1, which is specified on the
General Tab Page, turns ON or OFF.
3
Link with the Specified
Address ON/OFF
Switches label display when the specified address turns ON or OFF.
Frame
Specify the color and size of the button frame to change the shape or color when the button is
depressed or raised. Refer to Frames under 2-8 Common Functional Object Functions for details.
N
N
N
o
o
o
t
t
t
e
e
e
♦
The buttons are not linked to write address ON/OFF or the raised/depressed status of the frame when the
button action type is Momentary, SET, or RESET. The frame is concave when the button is pressed. To
make the frame concave when the write address is ON, set the same address as the write address to Link
with the specified address ON/OFF.
Flicker (Extension Tab)
Make flicker settings to make the functional object flicker (flash). Refer to Flicker under 2-8 Common
Functional Object Functions for details.
Write (Extension Tab)
Use the write to display a confirmation dialog box before writing values to a write address. The confir-
mation message can be changed. Refer to Write Settings under 2-8 Common Functional Object Func-
tions for details.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
