Omron NS Programming Manual

Section 2 NS Series Functions 2-9 Buttons
2-131
NS Series Programming Manual
Editing Pop-up Menus

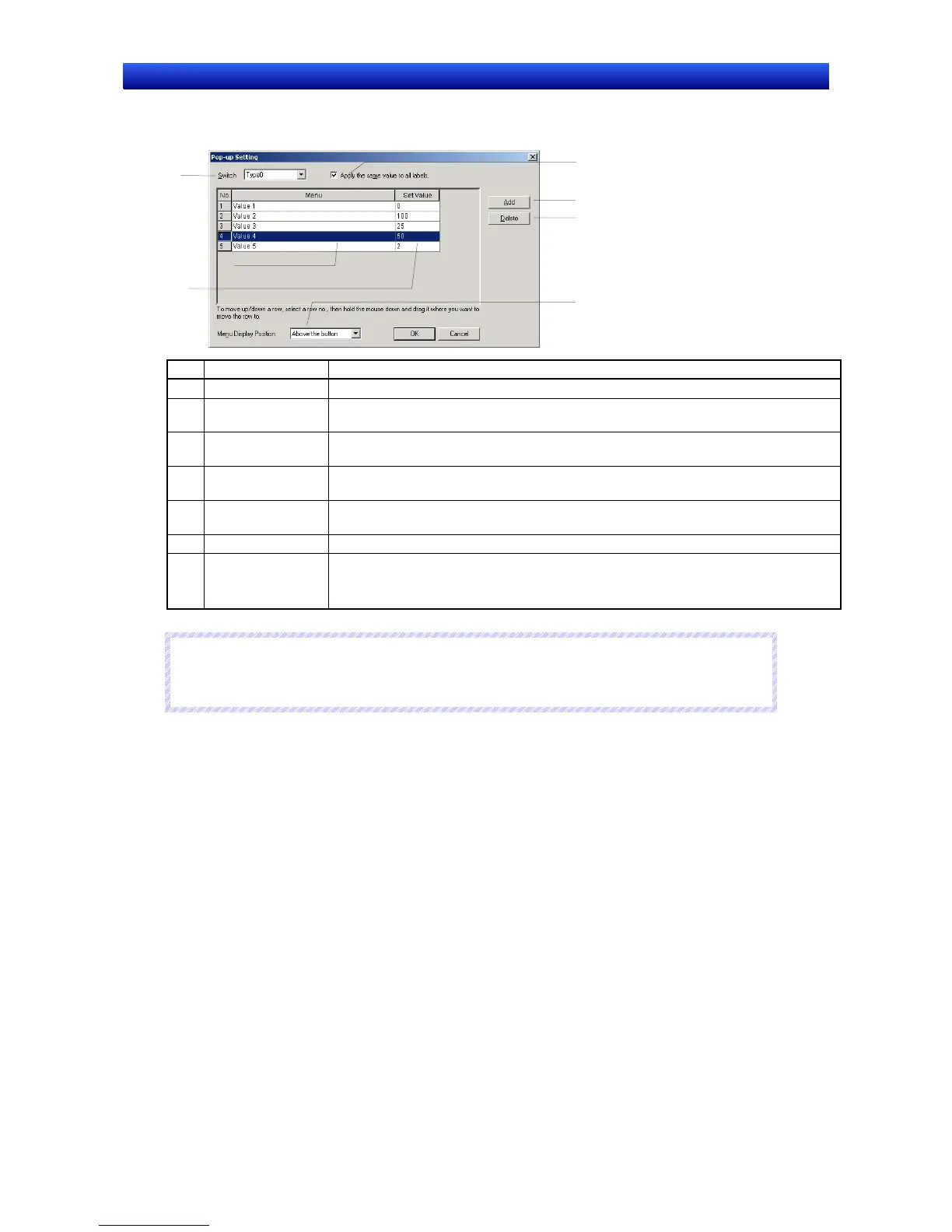

Click the Edit Menu3 Button on the General Tab Page to display the Pop-up Setting Dialog Box.
1
2
3
4
5
6
7
No. Setting Details
1 Switch Switches labels.
2 Apply the same
value to all labels.
This option applies the same Set Value to all labels.
3 Menu list Sets the heading name displayed in the pop-up menu. The name can be up to 64
characters long.
4 Set Value Specifies the value that will be written to the communications address when the cor-
responding menu item is selected.
5 Add Adds a menu item below of the currently selected row. If there is no row selected, a
new row is added to the bottom of the list.
6 Delete Deletes the currently selected menu item.
7 Menu display po-
sition
Sets one of the following display positions for the pop-up menu.
• Above the button
• Below the button
N
N
N
o
o
o
t
t
t
e
e
e
♦
When a row has been selected by clicking the row number, the row can be dragged and dropped
in another location to change its order in the list.
Color/Shape Tab Page
Specify the color and shape of the button.
If Rectangle is selected as the button shape, one of 256 colors can be selected. If Select shape is
selected under Button type, select a display shape from the list.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
