Omron NS Programming Manual

Section 2 NS Series Functions 2-9 Buttons
2-130
NS Series Programming Manual
No. Setting Details
4 Action type Select one of the following three types of action.
Set Value Sets a set value to the write address when the button is pressed. The numeric value can
only be input as a decimal. Hexadecimal values cannot be input.
To input hexadecimal values to the PLC, first convert the hexadecimal number to decimal
and then input the converted value.
Example: To write FFFF, set “−1” in decimal (for signed values).
When indirect is selected, the contents of the set address are written.
Increment/
decrement
When the button is pressed, the contents of the address are incremented or decremented
and set.
Example: If Increment/decrement is set to “10”, the contents of the address will increase
by 10 each time the button is pressed. If Increment/ decrement is set to “−10”, the con-
tents of the address will decrease by 10 each time the button is pressed. When indirect is
selected, the contents of the set address becomes the increment/decrement value. When
the maximum or minimum limit is exceeded, the action will be changed based on the
settings on the MAX/MIN Tab Page. Refer to MAX/MIN Tab Page for details.
Display
Pop-up
menu
When the button is pressed, a pop-up menu will be displayed and the write value can be
selected from the menu.
Set the character strings (up to 64 characters) that will be displayed on the pop-up menu
and the values that will be written when the items on the pop-up menu are selected. As
many pop-up menus as there are label switches can be set. If labels are switched during
PT operation, the displayed pop-up menu will also change. Up to 32 items can be set on
pop-up menus.

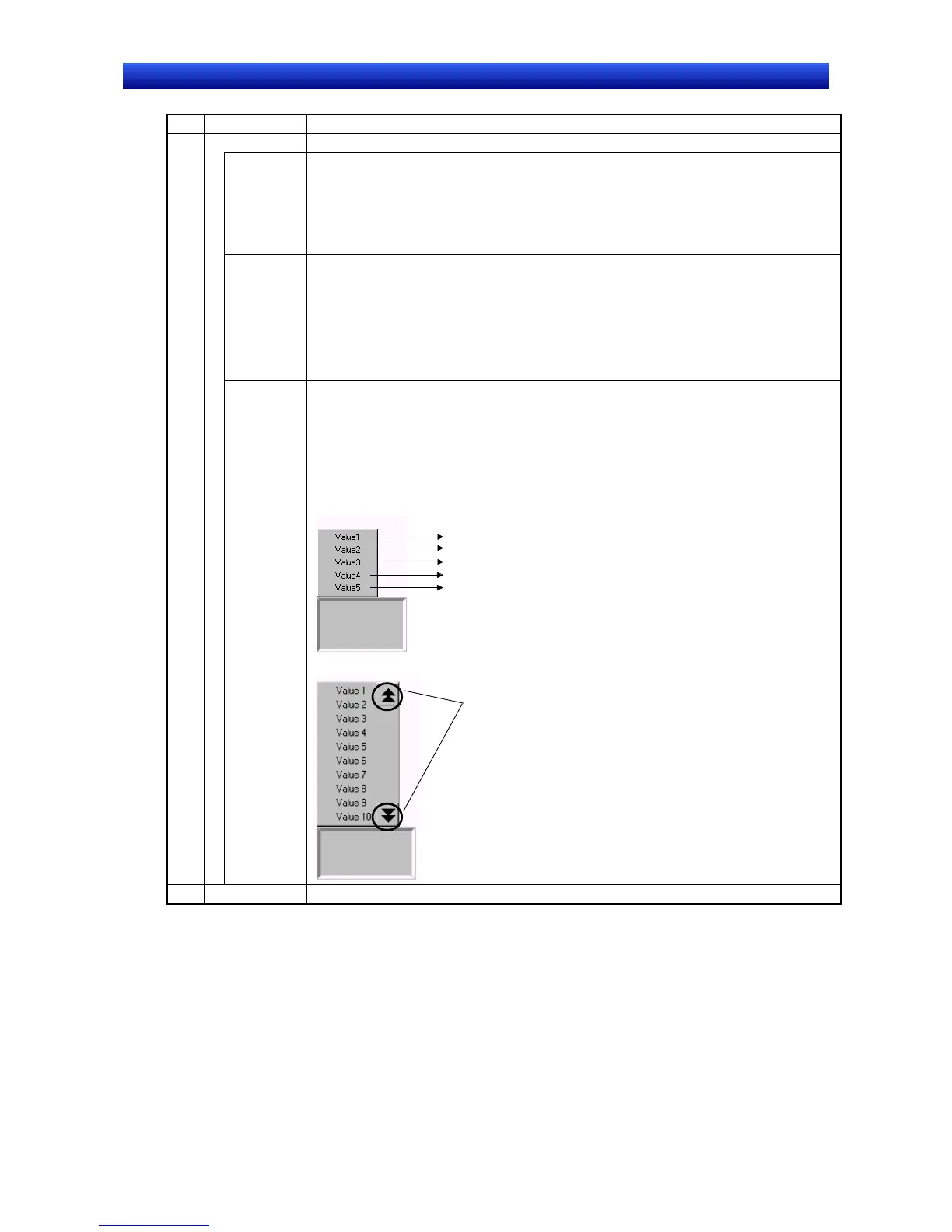

Example
Writes “1”.
Writes “100”.
Writes “25”.
Writes “50”.
Writes “2”.
Click the Edit Button to edit the pop-up menu.
5 Address Sets the write address for button operations. Only words can be specified.
At the PT, a scroll bar will be displayed if there
are more than ten items on a pop-up menu, as
shown on the left. Use the scroll bar to display
other items on the menu.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
