Section 1 Overview 1-2 NS-series PT Functions
1-5
NS Series Programming Manual

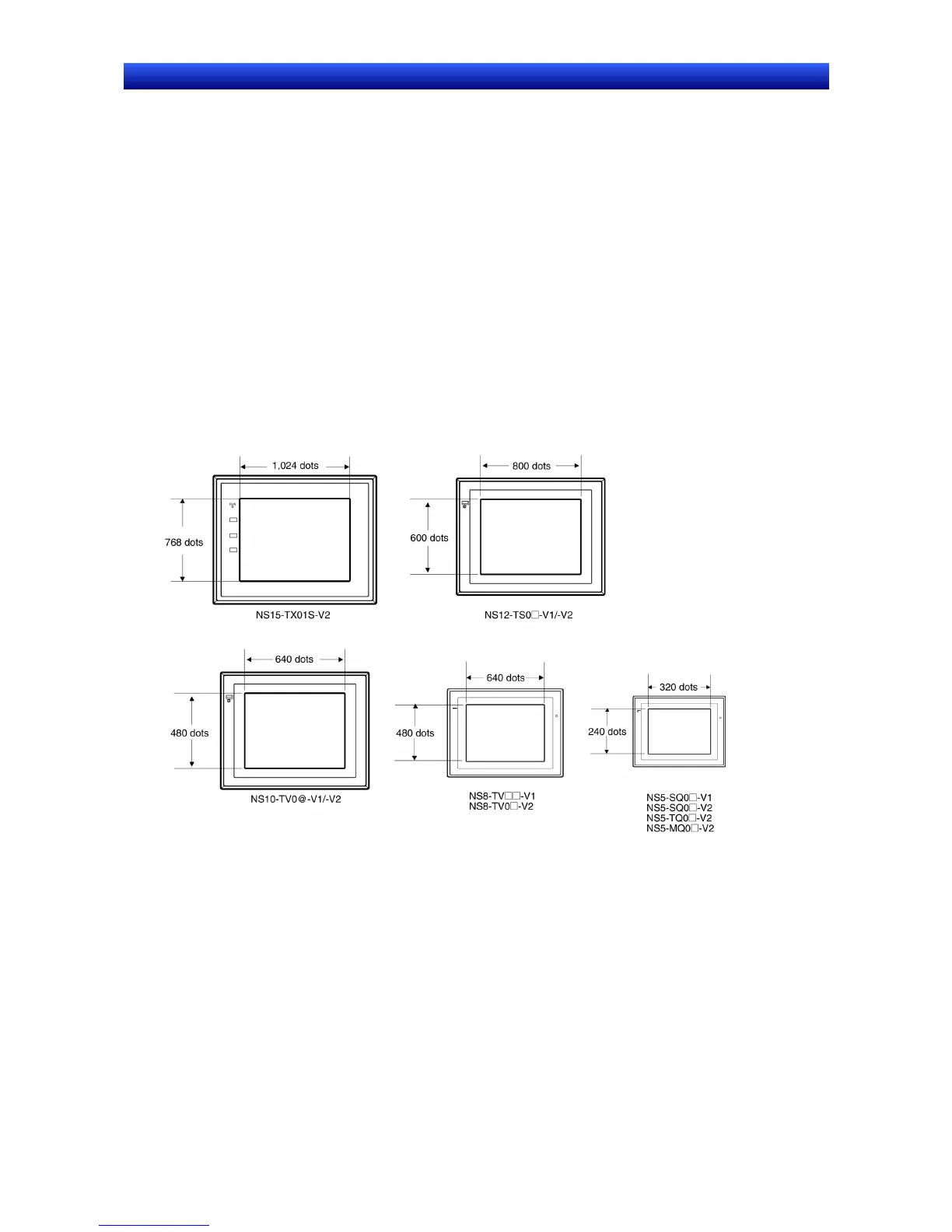

High Resolution and Large Display for a Wider Range of Display Possibilities
Display possibilities have been greatly increased with a larger display and higher resolution.
The NS15-TX01S-V2 uses an 1024-dot horizontal
× 768-dot vertical, 256-color, 15.0-inch, bright TFT
LCD.
The NS12-TS0@-V1/-V2 uses an 800-dot horizontal
× 600-dot vertical, 256-color, 12.1-inch, bright TFT
LCD.
The NS10-TV0@-V1/-V2 uses a 640-dot horizontal
× 480-dot vertical, 256-color, 10.4-inch, bright TFT
LCD.
The NS8-TV@@-V1 uses a 640-dot horizontal
× 480-dot vertical, 256-color, 8.0-inch bright TFT LCD.
The NS8-TV0@-V2 uses a 640-dot horizontal
× 480-dot vertical, 256-color, 8.4-inch bright TFT LCD.
The NS5-SQ@@-V1/V2 uses a 320-dot horizontal
× 240-dot vertical, 256-color, 5.7-inch STN LCD.
The NS5-TQ@@-V2 uses a 320-dot horizontal
× 240-dot vertical, 256-color, 5.7-inch bright TFT LCD.
The NS5-MQ@@-V2 uses a 320-dot horizontal
× 240-dot vertical, 16-grayscale monochrome, 5.7-inch
bright STN LCD.
For BMP or JPEG images, 32,000-color displays (4,096 colors for the NS5-SQ, 16 grayscales for the
NS5-MQ) are supported.
More Precise Touch Switches
The NS12-TS0@-V1, NS10-TV0@-V1, NS5-SQ0@-V1, and NS5-SQ/TQ/MQ-V2 touch switches have
16-dot
× 16-dot per element resolution and the NS8-TV@@-V1 touch switches have 20-dot × 20-dot
per element resolution.
The NS15-TX01S-V2 uses an analog touch panel.
Fast System Program and Screen Data Replacement Using Memory Cards
1. Screen data can be written on site simply by mounting an HMC-EF*** Memory Card on the PT.
2. System programs can also be stored on Memory Cards with NS-series PTs.
3. Operation log data that contains alarm history data, data log data, error log data, functional object
operations, screen display history, and macro execution history can be stored on Memory Cards.
