Video Controls – Video Capture

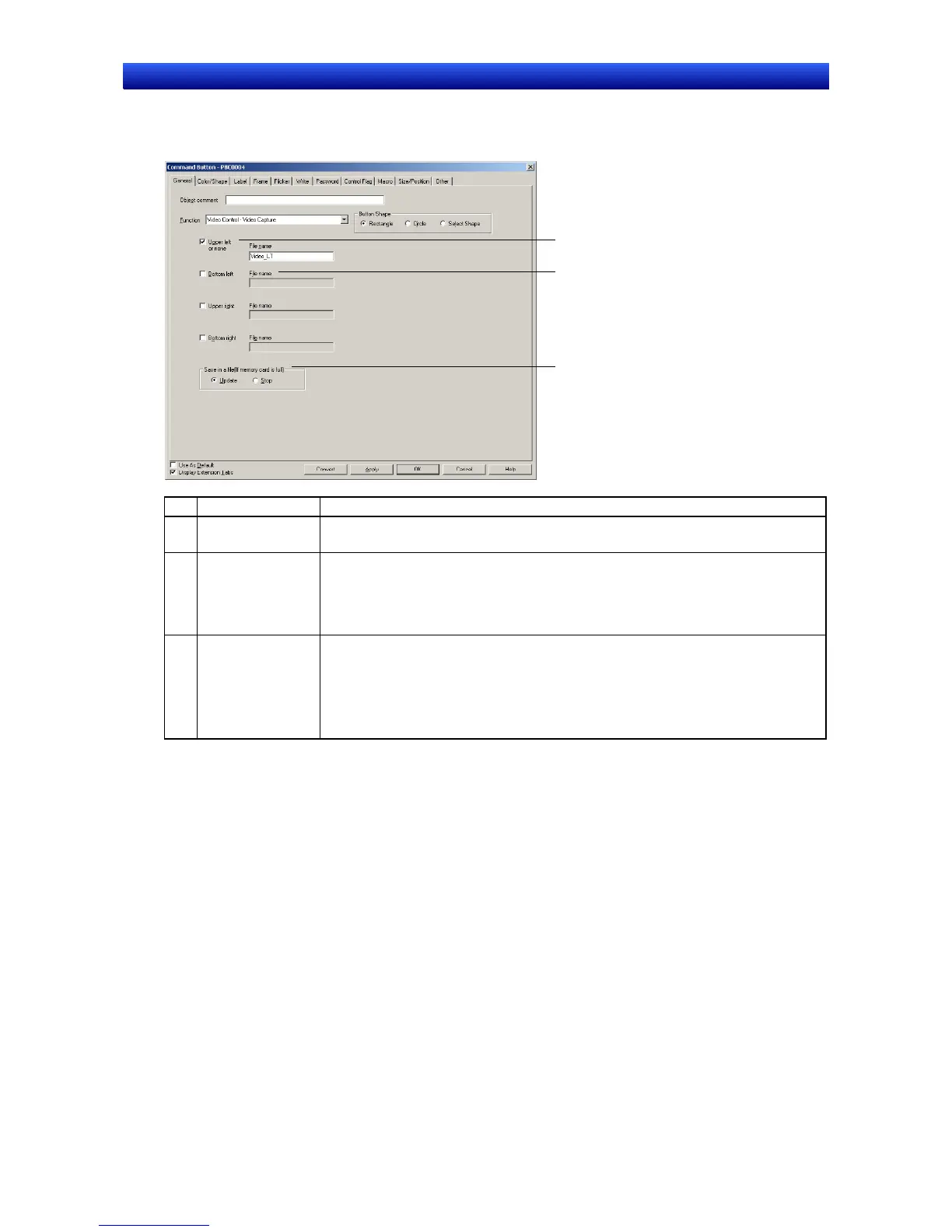

This function controls the Video Display. When the button is pressed, the specified picture on the
screen is captured and saved in bitmap (BMP) format on a Memory Card.
1
2
3
No. Item Detail
1 Position of the image Set the position of the picture to capture.
Select Upper left or none when capturing a 640x480 image.
2
File name
(See note.)
Specify the file name in which to save the captured picture on the Memory Card in BMP format.
(Up to 32 characters)
When saving the file, a number from 001 to 999 is automatically added to the end of the file name
in order.
Example: Video_LT003.bmp
3 Save in a file
(If Memory Card is full)
Set the action to perform for video capture if the Memory Card is full.
Functions are as follows:
Update: If the same file name exists, delete the oldest file and save the newer file with the largest
number plus 1.
If the same filename does not exist, “Cannot write to the Memory Card” will be displayed.
Stop: "Cannot write to Memory Card” will be displayed and the file will not be saved.
Note: When using NS hardware that has been upgraded from Ver. 1 to Ver. 2, keep the file name within 5 char-
acters in length.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
