Refer to the NS-series RGB/Video Input Unit User’s Manual (V086) for details on the setting method when an
NS-CA002 RGB/Video Input Unit is mounted.
♦
The following rules will be used for saving captured data:
• The file name specified in the command button properties will be used.
• The file names will be automatically numbered in order from 001 to 999 at the end of the file name. After saving the
file numbered 999, the next file will be numbered 001.
♦
Operation will be as follows if the “If Memory card is full” property is set to “Update” and the file size in the Memory Card
and the current file size are not the same:
1. Assuming the oldest file will be deleted, and PT will check whether enough space can be secured on the Memory
Card.
2. If the space to save can be secured, the smallest–numbered file will be deleted and the new file will be saved. If the
current file is bigger than existing file, the existing file will be deleted and the current file will be saved.

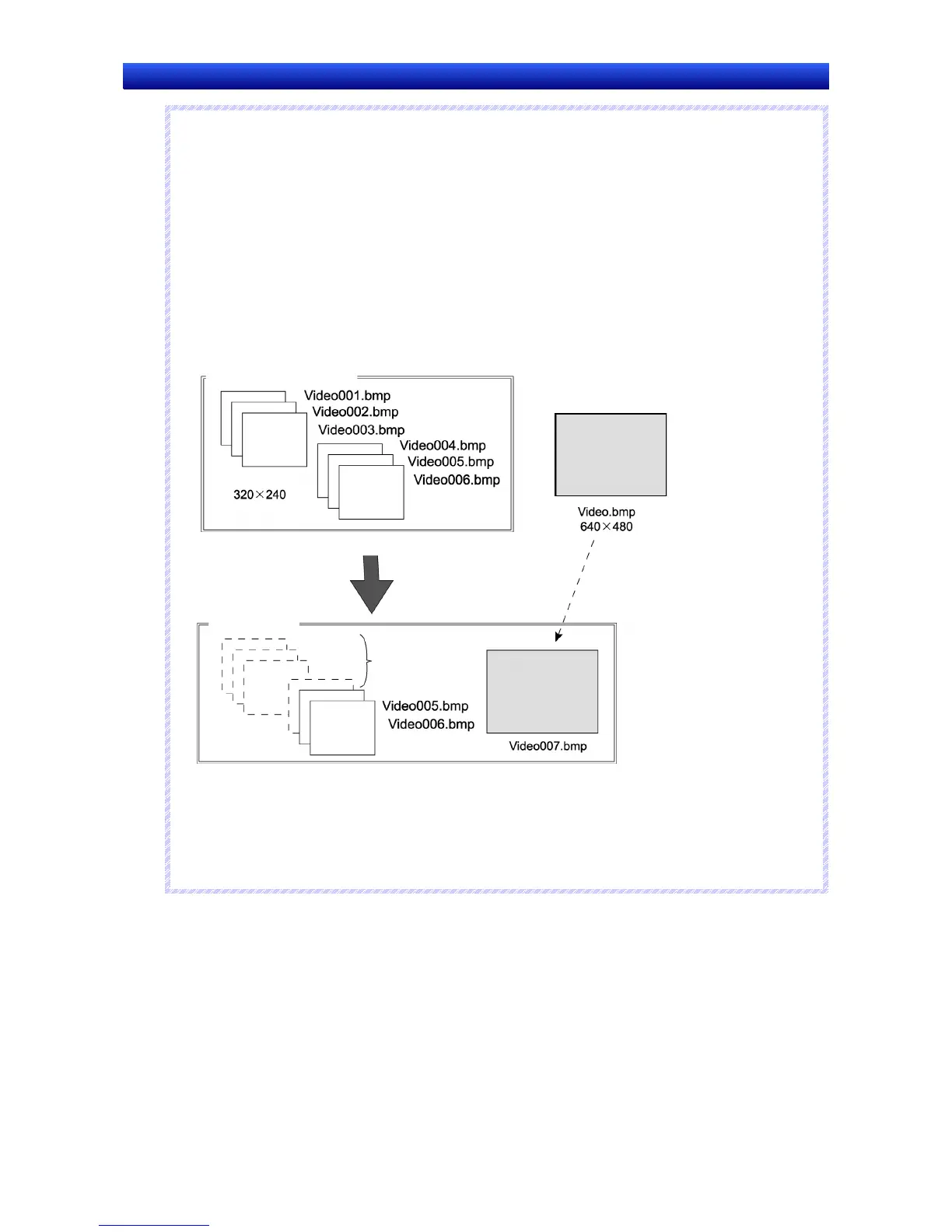

Full Memory Card
File to be saved
Memory Card
Saved
Four files deleted
3. If space cannot be secured, the files in the Memory Card will remain unchanged and an error message will be dis-
played.
♦
A 800 x 600 video image cannot be captured.
♦
When a video image is captured, a file with same name as the captured image file and an extension of .mng will be
created in the \LOG\CAPTURE folder in the Memory Card directory. These files are used to manage numbers for file
names. Do not edit or delete these files.
♦
Video capture may not be performed while transferring the data on the Memory Card Transfer Tool.
