Omron NS Programming Manual

Section 2 NS Series Functions 2-9 Buttons
2-145
NS Series Programming Manual

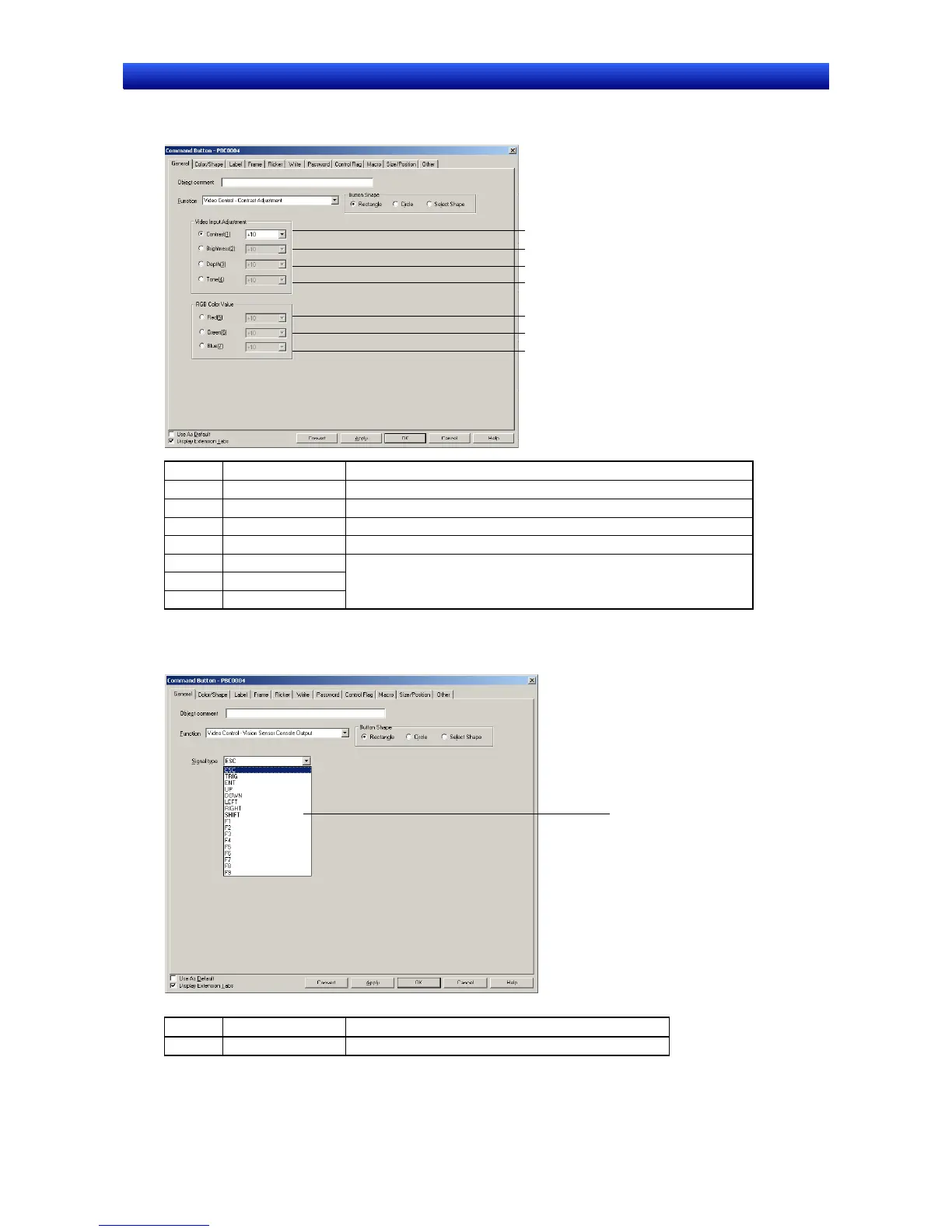

Video Control – Contrast Adjustment
Adjusts the contrast, brightness, depth, and tone of the image.
1
2
3
4
5
6
7
No. Item Details
1 Contrast Setting items: ⋅10, ⋅1, +1, +10 (Adjustable in 64 steps.)
2 Brightness Setting items: ⋅10, ⋅1, +1, +10 (Adjustable in 128 steps.)
3 Depth Setting items: ⋅10, ⋅1, +1, +10 (Adjustable in 32 steps.)
4 Tone Setting items: ⋅10, ⋅1, +1, +10 (Adjustable in 256 steps.)
5 Red
6 Green
7 Blue
These items can be set only when the NS-CA002 RGB/Video Input Unit is
mounted. Refer to the NS-series RGB/Video Input Unit User’s Manual (V086)
for details on the setting method.
Video Control – Vision Sensor Console Output
Various control signals can be sent to the OMRON Vision Sensor by pressing the button.
1
Number Item Detail
1 Signal type Set the signal type to send to the Vision Sensor.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
