Section 2 NS Series Functions 2-9 Buttons
2-146
NS Series Programming Manual
Signal Types
Name Description
ESC Previous screen
TRIG Execute measurement
ENT Enter
UP Move the cursor up or increase the set value by one.
DOWN Move the cursor down or decrease the set value by one.
LEFT Move the cursor left.
RIGHT Move the cursor right.
SHIFT
Add the SHIFT signal.
This signal does not function by itself. It changes the function of another signal.
F1 to F9 Refer to the Vision Sensor Console manual for details on the setting method.
N
N
N
o
o
o
t
t
t
e
e
e
♦
To add the SHIFT signal, press another signal button while holding down the SHIFT button.
♦
There is only one SHIFT state held by the system. The last operation for the SHIFT state will be
valid when multiple SHIFT buttons are arranged, pressed, or released.
Example: Assume the following operation is performed.
Create button A and button B, both controlling the SHIFT signal.
Then, press button A → press button B →release button A
In this case, the last operation is releasing button A, so the SHIFT state will be cancelled
even if the button B is still being pressed.
♦

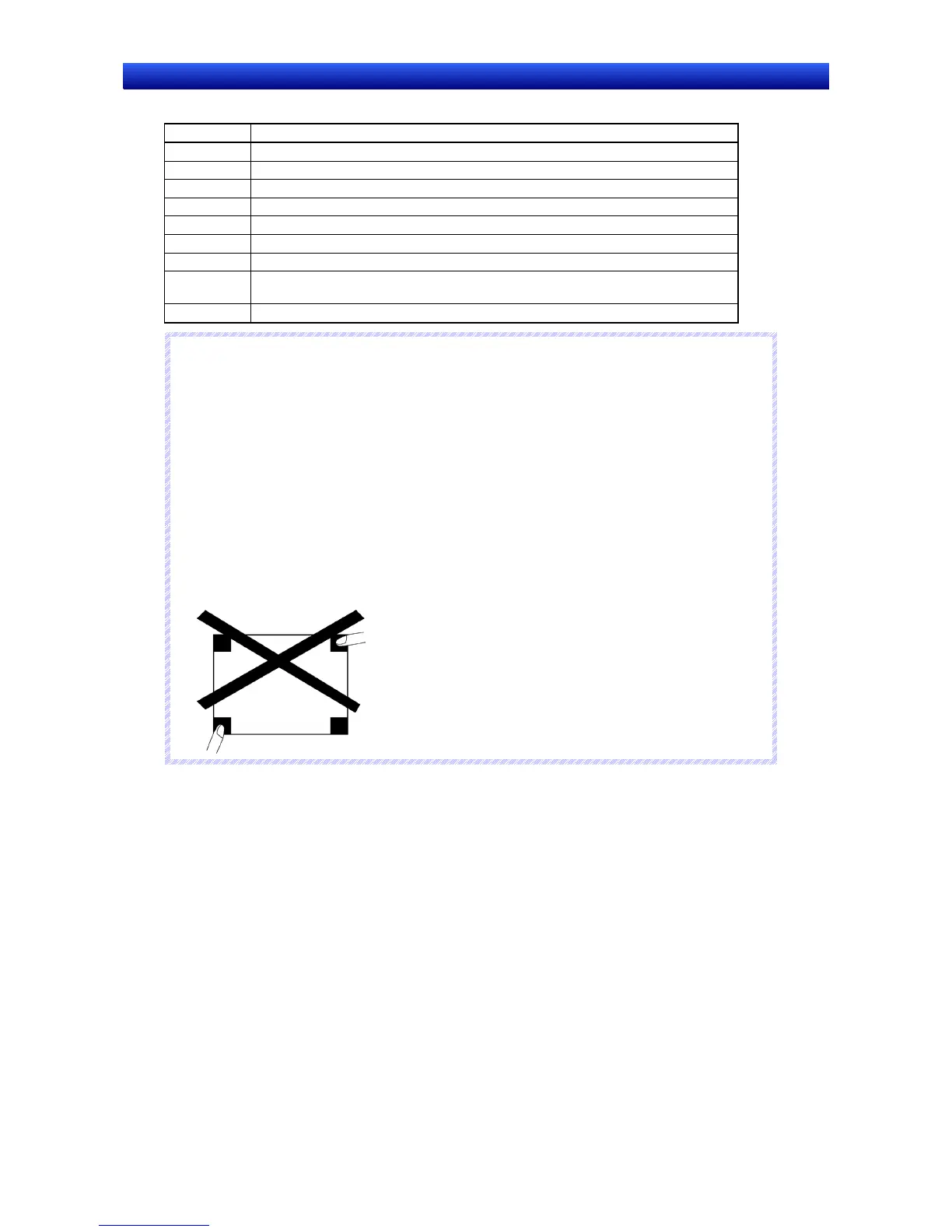

Do not place a Vision Sensor Console Output button on any of the four corners of the PT. When
two of four corners of the PT are pressed, the screen switches to the system menu. If the SHIFT
button and another button placed on any corner are pressed at the same time or sequentially, the
screen may switch to an unintended screen.
